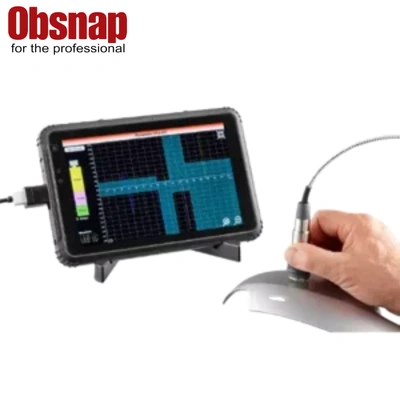

QuintSonic T

Features:

As a result of the sensor-integrated digital 32-bit signal processing (SIDSP®), the measurement signal may be quickly evaluated while maintaining high precision and reproducibility.
More than 40 measurements each minute: start, wait a second, finish.
The measurement of small and curved items is possible with a just 5 mm measuring area.

Specifications:

Property	Value
Measuring principle	Ultrasonic pulse run-time method
Measuring range / Resolution / Accuracy	Nr.1 Measuring range 356 µm Resolution 0,25 µm Accuracy 0,25 µm Nr.2 Measuring range 890 µm Resolution 0,5 µm Accuracy 0,5 µm Nr.3 Measuring range 1.900 µm Resolution 1 µm Accuracy 1 µm Nr.4 Measuring range 3.900 µm Resolution 2 µm Accuracy 2 µm Nr.5 Measuring range 7.500 µm Resolution 4 µm Accuracy 4 µm (at 2375 m/s ultrasonic velocity in all layers)
Minimum layer thickness	approx. 10 µm (depending on the ultrasonic velocity in the layer)
Number of layers	up to 8 layers in one operation
Measurement cycle time	approx. 1 s
Measuring area	5 mm Ø / 0.2″ Ø
Contact area	10 mm Ø / 0.4″ Ø
Minimum curvature radius	convex: 50 mm / 2″ concave: –
Measurement units	µm, mm, mils
Calibration	Sound velocity calibration for up to 8 layers
Statistics	N (number of measurment values) · Minimum · Maximum · Average · Standard · deviation · Coefficient of variation · Block statistics (user adjustable) · Histogram · Trend diagram
Interface	Bluetooth WiFi SD-card
International Standards	DIN EN ISO 2808
Signal processing	Sensor integrated digital 32-bit signal processing (SIDSP®)
Operating temperature	5 °C – 50 °C / 40 ° F – 122 °F
Storage temperature	-10 °C – 50 °C / 14 °F – 122 °F
