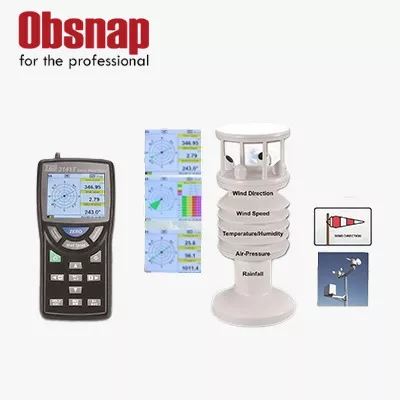

TES-3141T Weather Station
Features:
- Data may be read directly from the metre without a computer.
- Barometric pressure, temperature, humidity, wind speed, and direction.
- Patch of wind rose.
- Maximum/Minimum/Average function and data holding.
- 99 sets of manual data memory and read functionality.
- MicroSD card used as auto data memory.
- Interface for USB.
APPLICATIONS:
- HVAC
- Airports
- Agriculture
- Sports facility
- Construction
- Weather stations
- Environmental monitoring
Specifications:
Weather transmitter
measurement function |
Wind direction, Wind speed, Barometric pressure, Relative humidity and Air temperature |
Wind direction |
Range: 0 to 359.9° Accuracy: ±3.0° at 10m/s Resolution: 0.1° |
Wind speed |
Range: 0 to 60m/s Accuracy: ±5% at 10m/s
Resolution: 0.01m/s, 0.01km/h, 0.1m/min, 1m/hr, 0.01mph, 0.1knots, 0.1ft/min |
Barometric pressure |
Range: 300 to 1200hPa
Accuracy: ±2hPa at 25°C (77°F), ±4hPa at -20 to 85°C (-4 to 185°F) Resolution: 0.1hPa, 0.001psi, 0.1mmHg, 0.01inH2O |
Relative humidity |
Range: 0 to 100%RH Accuracy: at 25°C (77°F)
±3%RH at 20 to 80%RH ±5%RH at 0 to 20%RH & 80 to 100%RH Resolution: 0.1%RH |
Air temperature |
Range: -40°C to 60°C (-40°F to 140°F)
Accuracy: ±0.5°C (at +5°C to +60°C) / ±1°F (at +41°F to +140°F) ±1.2°C (at -40°C to +5°C) / ±2.4°F (at -40°F to +41°F) Resolution: 0.1°C (0.1°F) |
Operating temperature |
Weather transmitter: -40°C to 60°C (-40°F to 140°F) |
Meter: 0°C to 50°C (32°F to 122°F) | |
Storage temperature |
Weather transmitter: -40°C to 60°C (-40°F to 140°F) |
Meter: -20°C to 50°C (-40°F to 122°F) | |
Response time | 1s |
Housing protection class | Weather transmitter: IP65 |
Power requirements | Meter: Rechargeable Li-ion battery, AC adapter 9V |
Battery life | Approx. 15 hours (backlight off), Charge time: 3 hours |
Dimension / Weight |
Weather transmitter:145(ɸ)x237mm / Approx. 605g |
Meter: 158(L) x 78(W) x 40(H)mm / Approx. 242g | |
Accessories |
Instruction manual, Rechargeable Li-ion battery, Carrying case, AC adapter, Mounting tube, CD Software, micro-USB cable, 5 Meter cable |
Optional | Bottom socket |
