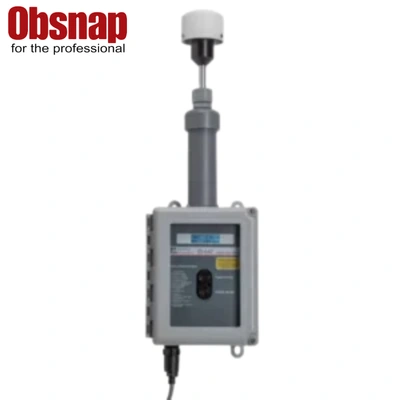

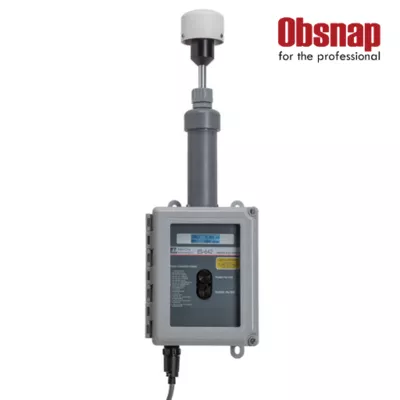

Remote Dust Monitor ES-642

Features:

For dependable, ongoing outdoor operation, a tough weatherproof enclosure.
Maintains optical components clean so that the ES-642 may function in challenging conditions without performance deterioration.
Automatic Zero Calibration: By automatically changing the zero value every hour, this technique reduces long-term measurement drift.
Active intake humidity management with a controlled inlet heater helps to minimise measurement mistakes.
Information on particle content, flow rate, and instrument condition are shown on the front panel LCD.
Flexible mounting hardware is available, including mounting brackets for walls, 2″ vertical masts, and vertical masts up to 4.7 inches in diameter (120 mm).

Categories: Climatic/Environment Inspection, Particle Counter

Specifications:

PARAMETER	SPECIFICATION
Measurement Principles:	Particulate concentration by forward light scatter laser Nephelometer.
Available Cut Points:	TSP Inlet Standard. PM10, PM2.5, and PM1 sharp-cut cyclone inlets available.
Measurement Range:	0 to 100 mg/m3 (0 to 100,000 µg/m3)
Measurement Sensitivity:	.001 mg/m3.
Nephelometer Accuracy:	± 5% traceable standard with 0.6 µm PSL.
Particle Size Sensitivity:	0.1 to 100 micron. Optimal sensitivity 0.5 to 10 micron particles.
Long Term Stability:	5% with clean optics.
Laser Type:	Diode Laser, 5 mW, 670 nm. Visible red.
Display:	2 X 16 backlit LCD. Provides information on operation including: Power, Flow Operation, Status and Concentration.
Zero Calibration:	Automatic Zero Calibration every hour or as programmed from 1 to 999 minutes.
Flow Rate:	2.0 liters/minute ± 0.1 lpm. Actual volumetric flow.
Pump Type:	Brushless Diaphragm (20,000 hour).
Power:	11 – 40 VDC @ 1.5 A maximum.
Power Consumption:	350 mA (no heater) 1.1 A (with heater) @ 15 VDC.
Analog Output:	4-20 mA and 0 – 2, 0 – 5 or 0 – 10 VDC, selectable.
Digital I/O:	RS-485 half duplex, RS-232.
Alarm Output:	Normally open and normally closed relay 30 VDC @ 1A maximum.
Purge Filter	0.2 micron
Protection Filter:	5.0 micron.
Serial Communication:	ASCII and MODBUS RTU.
Operating Temperature:	0 to +50°C . (Ambient Temperature Sensor Range -30 to +50°C).
Barometric Pressure:	600 to 1040 mbar absolute barometric pressure sensor range.
Ambient Humidity Range:	0 to 90% RH, non-condensing.
Humidity Control:	Automatic 10 Watt inlet heater module controlled to sample RH, with set point.
Approvals:	CE, ISO-9001. Designed to agree with EPA Class I and Class III FRM/FEM particulate samplers and monitors. Not an EPA-designated equivalent method.
Factory Service Interval:	24 Months typical, under continuous use in normal ambient air.
Mounting Options:	Optional wall mount bracket. Optional mounting tripod.
Unit Weight:	2.7 kg (6 lbs)
Unit Dimensions:	25.4cm high, 17.8cm wide, 10.8cm deep. (10.0” x 7.0” x 4.25”). Without inlet assembly. 48.3cm high, 17.8cm wide, 10.8cm deep. (19.0” x 7.0” x 4.25”). With inlet assembly.
