Hanna Instruments - HI98198 opdo Waterproof Optical Dissolved Oxygen Meter
Hanna Instruments - HI98198 opdo Waterproof Optical Dissolved Oxygen Meter - Image 2
Hanna Instruments - HI98198 opdo Waterproof Optical Dissolved Oxygen Meter - Image 3
Hanna Instruments - HI98198 opdo Waterproof Optical Dissolved Oxygen Meter - Image 4

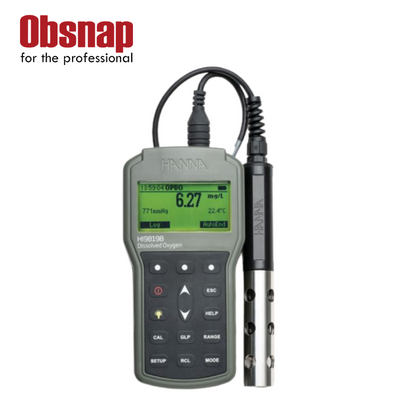

Hanna Instruments – HI98198 opdo Waterproof Optical Dissolved Oxygen Meter

The HI98198 opdo Optical Dissolved Oxygen Meter delivers high-precision optical DO measurements for fresh and saltwater applications. It features built-in calculations for BOD, OUR, and SOUR, eliminating the need for manual conversions. The meter supports automatic temperature, barometric pressure, and salinity compensation, with a rugged IP67 waterproof design for reliable field use. Equipped with the HI764113 optical DO probe and SmartCap technology, it provides quick connect probe installation, RFID-based cap traceability, and up to 4000 logged readings.

  • Optical DO measurement (0.00–50.00 mg/L; 0–500% saturation)
  • BOD/OUR/SOUR calculations built-in
  • Automatic temp, barometric pressure, and salinity compensation
  • IP67 waterproof, USB-C connectivity, 4000-log capacity

Share Now:

Facebook Twitter Youtube
Get a Quote

Description

The HI98198 is designed for professional-level dissolved oxygen monitoring with minimal hassle. Using enhanced optical luminescence technology, the meter measures dissolved oxygen with high precision, automatically accounting for temperature (-5 to 50°C), barometric pressure (420–850 mmHg), and salinity (0–70 g/L). SmartCap technology ensures automatic cap recognition, long-life usage of up to one year, and proper alignment every time. GLP compliance allows access to the last five calibrations with date, time, pressure, temperature, and salinity values.

Equipped with the HI764113 optical DO probe, the meter features a durable ABS shell with stainless steel protective shield, a PVC sleeve for outdoor use, and a quick-connect DIN fitting for easy installation. The probe requires no membrane or electrolyte replacement, ensuring minimal maintenance. Field usability is enhanced with a large backlit LCD, autoend functionality, and a USB-C port for quick data transfer to computers or memory devices. The package includes SmartCap with RFID, zero oxygen calibration solution, beakers, batteries, carrying case, and full documentation, providing a complete ready-to-use solution.

Features

  • Optical DO Measurement:
    0.00–50.00 mg/L and 0–500% saturation with high accuracy
    (1.5% for 0–20 mg/L, 5% for 20–50 mg/L; 1.5% ± 0.1% for 0–200%, 5% for 200–500%).
  • BOD/OUR/SOUR Built-In:
    Eliminates manual conversions and calculations, providing ready-to-use oxygen demand metrics.
  • Automatic Compensation:
    Temperature (-5 to 50°C), barometric pressure (420–850 mmHg),
    and salinity (0–70 g/L) compensated automatically for precise readings.
  • HI764113 Optical DO Probe:
    Rugged ABS & stainless steel shell, PVC protective sleeve,
    quick connect DIN fitting, and 4 m cable; no membranes or electrolyte required.
  • SmartCap Technology:
    RFID-enabled caps with automatic recognition, one-year life, and correct alignment every time.
  • Field-Ready Design:
    IP67 waterproof meter, large backlit LCD, AutoEnd function, and USB-C connectivity
    for easy data transfer as .csv files.
  • Logging & GLP Compliance:
    Up to 4000 records on-demand, GLP data for last 5 calibrations including date, time, pressure, temp, and salinity.
  • Complete Kit:
    Includes HI764113 probe, SmartCap, zero oxygen solution, beakers, USB-C cable, batteries, carrying case, and manual.

Specifications

SKU HI98198-web
Product Name opdo Waterproof Optical Dissolved Oxygen Meter – HI98198
Quote Required Yes
Dissolved Oxygen Measurement Type Optical – luminescence
Dissolved Oxygen Range 0.00 to 50.00 mg/L (ppm); 0.0 to 500.0% saturation
Dissolved Oxygen Resolution 0.01 mg/L (ppm); 0.1% saturation
Dissolved Oxygen Accuracy 1.5% of reading ± 0.01mg/L for 0.00-20.00mg/L , 5% of reading for 20.00-50.00mg/L , 1.5% of reading ±0.1% for 00-200.0%, 5% of reading for 200.0-500.0%
Dissolved Oxygen Calibration one or two points automatic calibration at 100% (8.26 mg/L) and 0% (0 mg/L); Single point manual using a value entered by the user in % saturation or mg/L.
Dissolved Oxygen Temperature Compensation automatic from -5.0 to 50.0 °C (23.0 to 122.0 °F)
Barometric Pressure Compensation automatic from 420 to 850 mmHg
Salinity Compensation automatic from 0 to 70 g/L (manually set)
Temperature Range -5.0 to 50.0 °C (23 to 122 °F)
Temperature Resolution 0.1 °C (0.1 °F)
Temperature Accuracy ±0.3 °C (±0.4 °F)
Temperature Calibration Single point anywhere within temperature range
Temperature Compensation Automatic

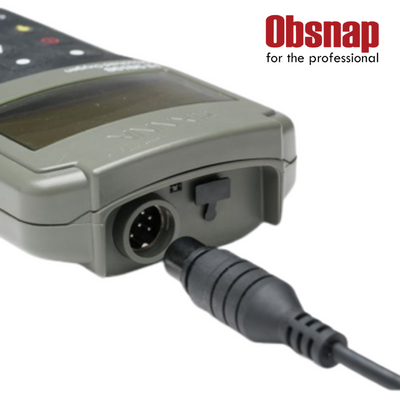

DO Probe HI764113 optical DO probe with protective sleeve, internal temperature sensor, quick connect DIN connector and 4m (13’) cable (included)
Logging Type On demand with 4000 records capability
Connectivity USB-C
Automatic Shut-Off User selectable
GLP Yes- includes last 5 calibrations
Calibration Timeout Reminder Yes- user selectable “Calibration due” warning
Autoend Yes
BOD/OUR/SOUR Yes
Display LCD (back lighted display)
Battery Type/Life 1.5V AA batteries (4 pcs.) / approx. 200 hours of continuous use without backlight (50 hours with backlight)
IP Protection IP67
Environment 0 to 50 °C (32 to 122 °F) max. RH 100%
Dimensions 185 x 93 x 35.2 mm (7.3 x 3.6 x 1.4”)
Weight 450 g (15.9 oz.) with batteries

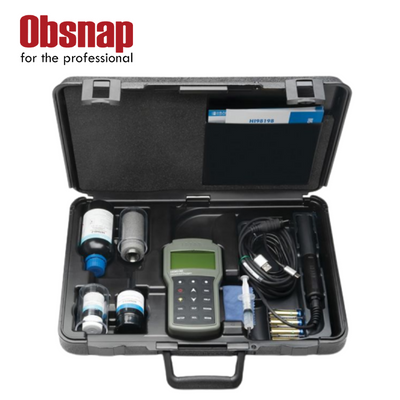

Ordering Information HI98198 is supplied with HI764113 optical DO probe, smartcap with RFID, HI7040 bicomponent zero oxygen solution, 100 mL plastic beakers (2), HI920016 micro USB Type A to C cable, 1.5V AA batteries (4), instruction manual, quick start guide, instrument quality certificate and a rugged carrying case.
Atmospheric Pressure Range 420 to 850 mmHg (inHg, atm, mbar, psi, kPa units available)
Atmospheric Pressure Resolution 1 mm Hg
Atmospheric Pressure Accuracy ± 3 mmHg within ±15% from the calibration point
Atmospheric Pressure Calibration one point at anywhere in pressure range value
