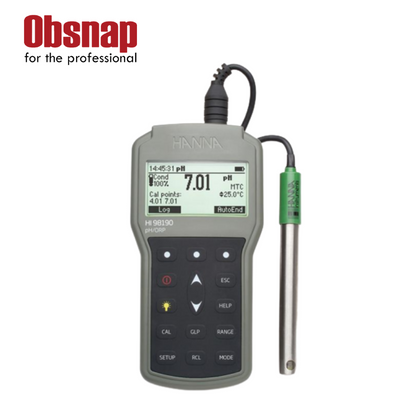

Hanna Instruments HI98190 Professional Waterproof Portable pH/ORP Meter
The HI98190 is a tough, portable pH meter with benchtop-caliber functionality and capabilities. This expertly made, IP67-compliant waterproof meter measures temperature, pH, and ORP. The HI98190 comes with every tool required to do a pH/temperature measurement, all of which are housed in a tough carrying case.
- CAL Check™ Calibration Diagnostics
- Waterproof Quick Connect
- Ergonomic, One-Handed Operation
Description

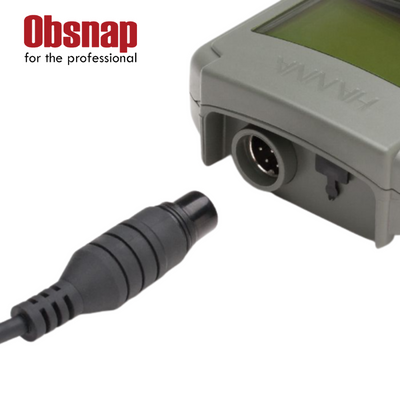

The HI98190 includes an HI12963 titanium body amplified pH electrode for pH measurement together with a built-in temperature sensor to enable automatic temperature compensation of readings. The titanium probe body is essentially indestructible and chemically resistant to strong substances. The innovative Quick Connect DIN connector, which was created specifically for the HI12963 pH/temperature electrode, offers a straightforward waterproof connection without any threads.
The exclusive CAL CheckTM feature from Hanna warns the user of potential issues that can arise when calibrating. The meter will notify the user with display prompts when the probe needs to be cleaned or is broken and if the pH buffer may be contaminated by comparing past calibration data to the present calibration. Following calibration, a percentage from 0 to 100% in 10% increments representing the overall probe condition is shown. The probe condition, which is shown on the measurement screen on the calibration day and in the GLP data, is influenced by the pH electrode’s offset and slope parameters. With seven preprogrammed standard pH buffers and five bespoke pH buffers, calibration can be done up to five times, yielding a pH accuracy of 0.002 and 0.001 pH resolution.
The meter will freeze at a stable reading when the “AutoHold” virtual key is pressed, which can be found in measurement mode. This allows the reading to be recorded or logged. When a reading is outside the range of calibrated pH values, a “out of calibration range” warning that notifies the user will be enabled.
The user can record and save up to 200 samples using the log-on-demand mode (100 for pH and 100 for mV). With Hanna’s HI920015 micro USB cable and HI92000 software, this data may then be transmitted to a PC together with the related GLP data.
With the usage of the backlight, the high contrast graphic LCD is simple to read both indoors and out in direct sunshine as well as in less lit settings. Easy, intuitive operation in a variety of languages is made possible by a combination of dedicated and virtual keys.

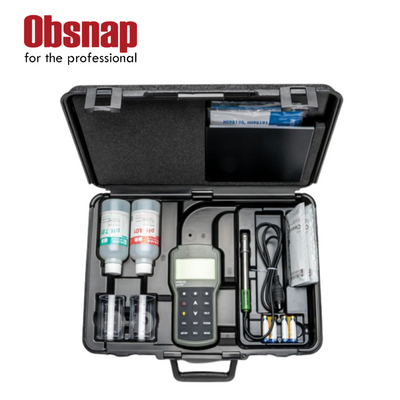

All the equipment required to do a field measurement, including the meter and electrode, beakers, buffer solutions, cleaning solutions, and storage solutions, is thermoformed into a small, tough carrying case.
On-Screen Features
Setup window
A wide range of programmable choices, including time, date, temperature units, and language for help displays and instructions, are available on our comprehensive setup screen.
Calibration
pH calibration comes with comprehensive CAL CheckTM messages. On-screen instructions that walk users through each stage of the calibration process.
GLP
By hitting the GLP key, comprehensive GLP features are instantly available. It is possible to review calibration data, which includes the date, time, offset, slope, and buffers used in the most recent calibration.
Features/Benefits:
Design that is comfy, hardy, and waterproof (IP67)
CAL pH Check
warns the user of any potential issues that can arise during calibration, such as when to clean the electrode and any potential buffer contamination.
based on offset and slope following calibration, displays overall probe condition.
Compensation for Automatic Temperature
pH calibration to five points using seven standard buffers and five unique buffers
Log-on-demand
At the touch of a button, store measurement information
AutoHold: Upon stabilization, the reading on the display is frozen.
GLP offers
- Date, time, pH calibration buffers, offset, and slope from GLP data
- Calibration timeout to notify the user that the calibration has run out at a predetermined timeframe
- several language options
- Battery life of 200 hours with battery level indication on the measurement screen
- Menu-driven for simplicity and increased functionality via virtual keys
- At the touch of a button, contextual assistance
- Illuminated, graphic LCD
- Connectivity
- PC interface using HI92000 software and a sealed, opto-isolated micro USB
SKU | HI98190 |
---|---|
Product Name | Professional Waterproof Portable pH/ORP Meter – HI98190 |
Quote Required | Yes |
pH Range | -2.0 to 20.0 pH; -2.00 to 20.00 pH; -2.000 to 20.000 pH |
pH Resolution | 0.1 pH; 0.01 pH; 0.001 pH |
pH Accuracy | ±0.1; ±0.002 pH |
pH Calibration | up to five point calibration, seven standard buffers available (1.68, 4.01, 6.86, 7.01, 9.18, 10.01, 12.45) + five custom buffers |
pH Temperature Compensation | manual or automatic from -20.0 to 120.0°C (-4.0 to 248.0°F) |
pH CAL Check (electrode diagnostics) | Yes |
pH Input impedence | 10¹² Ohms |
mV Range | ±2000 mV |
mV Resolution | 0.1 mV |
mV Accuracy | ±0.2 mV |
mV Relative Offset | Yes |
Temperature Range | -20.0 to 120.0°C (-4.0 to 248.0°F) |
Temperature Resolution | 0.1°C (0.1°F) |
Temperature Accuracy | ±0.4°C (±0.8°F) (excluding probe error) |
Temperature Compensation | manual or automatic from -20.0 to 120.0°C (-4.0 to 248.0°F) |
pH Electrode | HI12963 Titanium body, pH electrode with internal temperature sensor, quick DIN connector and 1 m (3.3’ cable) |
Temperature Probe | integrated into pH electrode |
Logging Type | Log-on-demand |
Logging Memory | 200 samples (100 pH and 100 mV range) |
Connectivity | opto-isolated USB with optional HI 92000 software and micro USB cable |
Automatic Shut-Off | user selectable |
GLP | Yes |
Calibration Timeout Reminder | Yes |
Autoend | Yes |
Display | dot matrix LCD |
Battery Type/Life | 1.5V AA batteries (4) / approximately 200 hours of continuous use without backlight (50 hours with backlight) |
Environment | 0 to 50°C (32 to 122°F); RH 100% (IP67) |
Dimensions | 185 x 93 x 35.2 mm (7.3 x 3.6 x 1.4”) |
Weight | 400 g (14.2 oz.) |
Ordering Information | HI98190 is supplied with HI12963 titanium body pH electrode, HI7004M pH 4.01 buffer solution (230 mL), HI7007M pH 7.01 buffer solution (230 mL), HI700601 electrode cleaning solution sachet (2 x 20 mL), 100 mL plastic beaker (2), 1.5V AA batteries (4), HI92000 PC software, HI920015 micro USB cable, instruction manual, quick start guide, instrument quality certificate, and HI720190 hard carrying case. |
