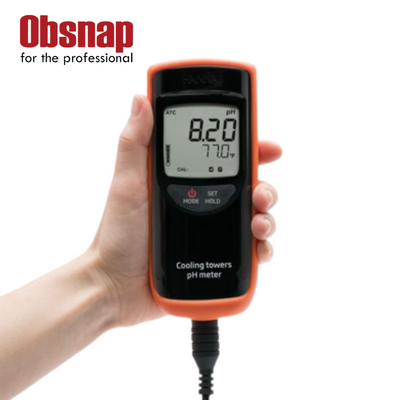

Hanna Instruments – HI99141 Boiler and Cooling Tower pH Portable Meter

The HI99141 Portable pH Meter is a compact, heavy-duty, and waterproof instrument designed for reliable pH and temperature measurements in water treatment applications. It features a large multi-level LCD that simultaneously displays pH and temperature with 0.01 pH resolution and ± 0.02 pH accuracy. The meter includes Automatic Temperature Compensation (ATC) and one- or two-point automatic calibration with buffer recognition for precise results. Supplied with a durable titanium-bodied, gel-filled HI729113 pH/temperature electrode, the HI99141 also offers BEPS low battery protection, battery percentage display at startup, and an on-screen HELP feature for guided operation.

  • 0.01 pH Resolution & ± 0.02 pH Accuracy
  • Automatic Temperature Compensation (ATC)
  • Unbreakable Titanium Body Electrode (HI729113)
  • BEPS with Battery % Display & HELP Feature

Description

The HI99141 is engineered for professional water treatment applications, offering advanced performance in a rugged, portable design. Its large multi-level LCD screen clearly displays both pH and temperature measurements simultaneously, along with calibration stability indicators and on-screen instructional messages. With 0.01 pH resolution and ± 0.02 pH accuracy, the meter delivers precise readings, while features such as automatic buffer recognition, temperature adjustment, and one- or two-point automatic calibration simplify operation. At startup, the display shows the battery percentage, and the built-in BEPS (Battery Error Prevention System) alerts users when low battery levels could affect measurement accuracy.

The HI99141 comes equipped with the HI729113 amplified titanium body pH/temperature electrode, designed for durability and chemical resistance. Its unbreakable titanium construction allows rapid heat transfer to the internal temperature sensor for faster temperature compensation. The electrode features a flat tip design, a matching pin differential measurement system to eliminate electrical noise, and a pre-amplifier for improved response time and extended electrode life. Additionally, the large annular PTFE junction provides a chemically inert, clog-resistant surface that maximizes ion diffusion for fast, stable, and accurate readings. The maintenance-free, gel-filled electrodedesign eliminates the need for refill solution, making it ideal for demanding water treatment environments.

Features

  • Automatic Temperature Compensation
  • One or two-point automatic calibration
  • BEPS – Alerts the user of low battery power that could adversely affect readings
  • Compact, heavy-duty, and waterproof
  • Battery % displayed on start-up
  • HELP feature displays tutorial messages on LCD

Specifications

SKU HI99141
Product Name Boiler and Cooling Tower pH Portable Meter – HI99141
Quote Required Yes
pH Range -2.00 to 16.00 pH; -2.0 to 16.0 pH
pH Resolution 0.01 pH; 0.1 pH
pH Accuracy ±0.02 pH; ±0.1 pH
pH Calibration automatic, at one or two points with two sets of standard buffers (pH 4.01 / 7.01 / 10.01 or pH 4.01 / 6.86 / 9.18)
pH Temperature Compensation automatic ‐5.0 to 105.0 °C/23.0 to 221.0 °F
pH CAL Check (electrode diagnostics) probe condition indicator
mV Range ±825 mV (pH‐mV)
mV Resolution 1 mV (pH‐mV)
mV Accuracy ±1 mV (pH‐mV)
Temperature Range -5.0 to 105.0°C / 23.0 to 221.0°F
Temperature Resolution 0.1°C / 0.1°F
Temperature Accuracy ±0.5°C (up to 60°C); ±1.0°C (outside) / ±1°F (up to 140°F); ±2.0°F (outside)
pH Electrode HI729113 titanium body, pre-amplified pH electrode with internal temperature sensor, quick connect DIN connector and 1 m (3.3’ cable) (included)
Automatic Shut-Off user selectable
Battery Type/Life 1.5V (3) AAA / approximately 1400 hours of continuous use
IP Protection IP67
Environment 0 to 50°C (32 to 122°F); RH max 100%
Dimensions 154 x 63 x 30 mm (6.1 x 2.5 x 1.2”)
Weight 196 g (6.91 oz.)

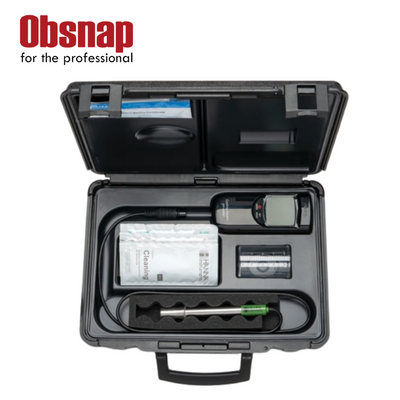

Ordering Information HI99141 is supplied with HI729113 pH probe, HI70004 pH 4.01 buffer solution sachet (1), HI70007 pH 7.01 buffer solution sachet (1), HI700601 electrode cleaning solution sachets (2), batteries, 100 mL beaker (1), instructions, calibration certificates for meter and probe, and rugged thermoformed carrying case.
