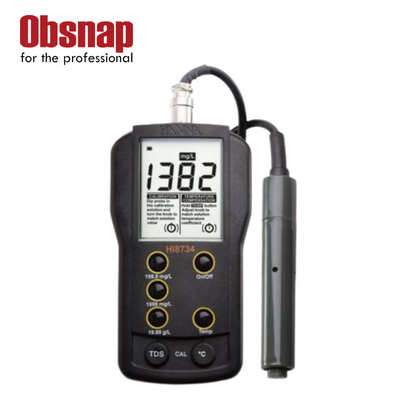

Hanna Instruments HI8734 Three Range Portable TDS Meter
For use in water conditioning applications such as softening, demineralization, reverse osmosis, and drinking water, the HI8734 is a tough, portable TDS meter. Additionally, it can be applied to a range of environmental situations. Users are guaranteed consistent and accurate total dissolved solids measurements thanks to manual temperature correction for TDS readings.
- Four-ring probe
- measurement ranges from 0.0 mg/L to 19.99 g/L with a ±1% FS accuracy
- Manual Temperature Compensation
Description
Features
- manually calibrated in a standard TDS solution at one specific location
- To quickly alter range, there are three specialized buttons.
- If a reading is outside of range, the meter will notify that a new range should be chosen.
- Given that the HI8734 has a fixed TDS factor of 0.5, 1 S/cm corresponds to 0.5 mg/L (ppm) of TDS.
- The sample temperature is adjusted by 2% for every degree Celsius shift using the temperature compensation coefficient, which is set at 2%/°C.
- With just one sensor, the HI76301D four-ring probe that comes with the meter can measure a variety of things.
- When conducting measurements outside, the probe’s protective PVC sleeve ensures longevity.
| SKU | HI8734 |
|---|---|
| Product Name | Three Range Portable TDS Meter – HI8734 |
| Quote Required | Yes |
| TDS Range | 0.0 to 199.9 mg/L (ppm); 0 to 1999 mg/L (ppm); 0.00 to 19.99 g/L (ppt) |
| TDS Resolution | 0.1 mg/L (ppm); 1 mg/L (ppm); 0.01 g/L (ppt) |
| TDS Accuracy | ±1% FS (excluding probe error) |
| TDS Calibration | manual, one-point through TDS knob |
| EC/TDS Temperature Compensation | manual from 0 to 50°C (32 to 122°F) with β = 2%/°C |
| EC to TDS Conversion Factor | 0.5 |
| EC/TDS Probe | HI76301D four ring conductivity probe with DIN connector and 1 m (3.3’) cable (included) |
| Battery Type/Life | 9V / approximately 100 hours of continuous use |
| Environment | 0 to 50°C (32 to 122°F); RH max 95% |
| Dimensions | 145 x 80 x 36 mm (5.7 x 3.1 x 1.4”) |
| Weight | 230 g (8.1 oz) |
| Ordering Information | HI8734 is supplied with HI76301D conductivity probe, HI70032 1382 mg/L (ppm) calibration solution sachet, battery, and instruction manual. |
