DASQUA High Accuracy Measuring Tools 18~35mm Dial Bore Gauge
Features
- With a steel body and interchangeable carbide anvils, this tool is used to measure tight tolerances in holes, taper, and roundness.
- Extension rods and washers allow for small size adjustments to choose a particular range,
- and the dial indication is completely covered by a tough cover.
Application
The most popular measurement equipment for inside measurements of cylindrical items like pipelines and cylinders is a set of bore gauges. The bore gauge, in contrast to transfer gauges (telescope gauge, small-hole gauge, and beam gauge), performs the measurement with a direct read rather than a second time measurement, ensuring precision. The bore gauge has a long extension handle that allows it to reach sufficiently deep without compromising accuracy, outperforming the short reach issue with inside micrometres. The three-point inside micrometre may undoubtedly satisfy all of your needs and be simple to use, but it is much more expensive than bore gauges.
| Code | Range | Graduation | Depth |
| 5511-1100 | 4-6 | 0.01 | 40 |
| 5511-1105 | 6-10 | 0.01 | 40 |
| 5511-1110 | 10-18 | 0.01 | 100 |
| 5511-1115 | 18-35 | 0.01 | 150 |
| 5511-1120 | 35-50 | 0.01 | 150 |
| 5511-1121 | 35-60 | 0.01 | 150 |
| 5511-1125 | 50-100 | 0.01 | 150 |
| 5511-1130 | 50-160 | 0.01 | 150 |
| 5511-1135 | 160-250 | 0.01 | 400 |
| 5511-1140 | 250-450 | 0.01 | 500 |
| 5512-6105 | 0.24-0.4″ | 0.0005″ | 1.57″ |
| 5512-6110 | 0.4-0.7″ | 0.0005″ | 4″ |
| 5512-6115 | 0.7-1.5″ | 0.0005″ | 6″ |
| 5512-6120 | 1.4-2.4″ | 0.0005″ | 6″ |
| 5512-6125 | 2-4″ | 0.0005″ | 6″ |
| 5512-6130 | 2-6″ | 0.0005″ | 6″ |
| 5512-6135 | 6-10″ | 0.0005″ | 16″ |
| 5512-6140 | 10-16″ | 0.0005″ | 16″ |
Specifications
Product Name: Dial Bore Gauge
Item Number: 5511-1115
Measuring Range: 18~35 mm / 0.7’’~1.38’’
Graduation: ±0.01 mm / 0.0005’’
Depth: 150mm / 5.9’’
Advantage Of DASQUA
• High quality material and precision machining process ensure product quality；
• A traceable QC system is worthy of your trust；
• Efficient warehouse and logistics management ensure your delivery time；
• A two-year warranty makes you without the worries behind；
Tips Of Assemble The Bore Gauge
Attach the indicator to the joint by inserting the indicator’s spindle into the joint;
Lock the indicator with the screw when the needle of the indicator turns about 1 revolution;
Remove the anvil locking nut and install wanted anvils, combination anvils or washers;
Install the knurled locking nut tightly.

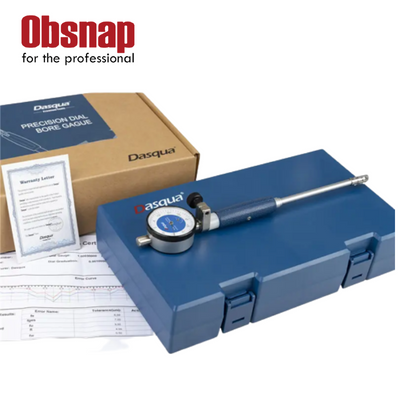

Package Content
1 x Dial Bore Gauge
1 x Protective Case
1 x Warranty Letter
