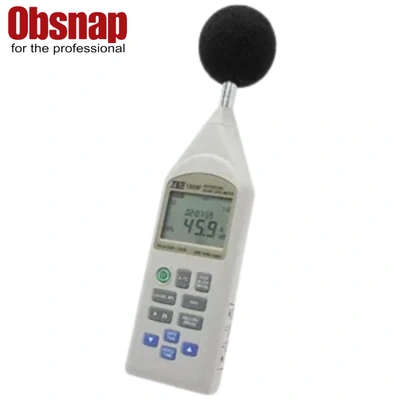

TES-1353F Integrating Sound Level Meter

Product Features

Use a conventional microphone that complies with the IEC 61672-1 class 2 standard.
Simple to use for continuous equivalent
acoustic pressure,
Level of sound exposure, percentile level,
maximum degree of
Can be tested at the minimal level
simultaneously.
A 60dB dynamic range
Five are between 30 and 130 dB.
Frequency Weighting with A&C
dynamic property of impulse, fast, and slow
100M Records of Data Logging
the microSD card
USB connection
Sound Output Alarm Level
Real-time calendar and clock

Applicable standards	IEC61672-1: 2013 Class 2, ANSI S1.4: 1983 Type 2
Measurement item	SPL, Leq, SEL, MaxL, MinL, Peak, Ln (5%, 10%, 50%, 90%, 95%)
Measurement level	30dB to 130dB
Linearity range	60dB
Measurement frequency range	31.5 Hz to 8kHz
Frequency weight	A and C
Time weight	Fast, Slow and Impulse
Accuracy	±1.0dB (ref 94dB @1kHz)
Microphone	1/2 inch Electret condenser microphone
Measurement level range	5 ranges in 10-dB step :30 ~ 90dB , 40 ~ 100dB , 50 ~ 110dB , 60 ~ 120dB , 70 ~ 130dB
Digital display	4 digit LCD , 0.1dB resolution, updated every 1s
Quasi-analog bar indicator	1-dB steps, 60dB display range , updated every 0.125s
Display Warning function Overrange indicator Underrange indicator	Displayed at the upper limit Displayed at the lower limit
Analong AC / DC output	2Vrms ( at full scale ), 10mVDC/dB
Power supply	4 x 1.5V IEC R6P /AA size cell, AC adaptor
Battery Life	about 24 hours
Operating temperature , humidity	-10℃ to 50℃ (14℉ to 122℉), 30% to 90%RH noncondensing
Dimensions	265 (L) × 72(W) × 36(H)mm
Weight	Approx. 380g
Accessories	Instruction manual, Battery, Carrying case, Adjustment screwdriver, Software, Wind shield, USB connecting cable, 3.5Φ plug
Optional accessories	Microphone extension cable, AC Adaptor, TES-1356 Sound calibrator
