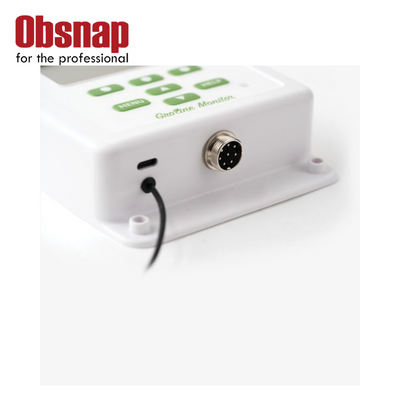

Hanna Instruments – HI981420 GroLine Monitor for Hydroponic Nutrients

The GroLine HI981420 Monitor from Hanna Instruments is a professional hydroponic nutrient monitoring system designed to continuously measure pH, EC, TDS, and temperature with high precision. Featuring a large backlit LCD, high and low alarms, automatic temperature compensation, and 30-day data logging, it provides real-time insight into nutrient solution performance. With Quick Cal functionality and a rugged IP65-rated enclosure, the HI981420 ensures accurate measurements, minimal maintenance, and improved plant health and yield.

  • Continuous 24/7 Monitoring with High & Low Alarms
  • 30-Day Automatic Data Logging (15-Min Intervals)
  • 3-in-1 Multiparameter Probe (pH, EC/TDS & Temperature)
  • Quick Cal One-Solution Calibration

Description

The HI981420 GroLine Monitor is engineered for growers who demand accurate, around-the-clock nutrient solution monitoring. It measures pH (0.00–14.00), EC (0.00–10.00 mS/cm), TDS (up to 7000 ppm), and temperature (0–60°C)with automatic temperature compensation (β = 1.9%/°C). The large 128 x 64 pixel LCD with plant-friendly green backlighting clearly displays all essential parameters simultaneously, cycles through readings, or shows a real-time graph for trend analysis. High and low alarm set points flash alerts when measurements drift outside desired ranges, helping prevent crop stress and nutrient imbalance.

Designed for durability and ease of installation, the HI981420 features an IP65-rated enclosure built to withstand harsh greenhouse and hydroponic environments. The integrated HI1285-8 multiparameter probe combines a renewable cloth junction pH electrode, amperometric EC/TDS sensor, and internal temperature sensor in one rugged body. Users may also select the HI981421 model with a 3/4” threaded probe (HI1285-9) for in-line mounting. With automatic logging every 15 minutes for 30 days, USB-C data transfer, GLP tracking of the last five calibrations, and Quick Cal single-solution calibration, this monitor delivers professional-grade control and efficiency for modern hydroponic systems.

Features

  • Continuous Monitoring – Measures pH, EC, TDS, and temperature 24/7 with high and low alarm alerts.
  • 30-Day Data Logging – Automatically logs every 15 minutes; stores minimum, maximum, and average values.
  • 3-in-1 Multiparameter Probe – pH electrode with renewable cloth junction, amperometric EC/TDS sensor, and built-in temperature sensor.
  • Quick Cal Calibration – Single calibration solution for both pH and conductivity.
  • Large LCD with Green Backlight – Displays all parameters simultaneously or in real-time graph mode.
  • Selectable EC to TDS Conversion Factor – Choose between 0.5 (500 CF) or 0.7 (700 CF).
  • Automatic Temperature Compensation – Compensates readings from 0 to 60°C (32 to 140°F).
  • USB-C Connectivity – Easy data transfer to flash drive or compatible device.
  • IP65 Rated Enclosure – Designed for harsh greenhouse and hydroponic environments.
  • Ambient Light Sensor – Automatically adjusts LCD brightness for optimal viewing.

Specifications

SKU HI981420-02-web
Product Name GroLine Monitor for Hydroponic Nutrients – HI981420
Quote Required Yes
pH Range 0.00 to 14.00 pH; 0.0 to 14.0 pH
pH Resolution 0.01 pH; 0.1 pH
pH Accuracy ±0.05 pH; ± 0.1 pH
pH Calibration one or two-point calibration (using pH 4.01,7.01, 10.01 buffers) using auto buffer recognition; one-point calibration using quick calibration solution
pH Temperature Compensation automatic (0.0 to 60.0ºC/ 32.0 to 140.0°)
EC Range 0.00 to 10.00 mS/cm
EC Resolution 0.01 mS/cm
EC Accuracy ± 0.1mS/cm (0.00 to 5.00mS/cm); ± 0.2mS/cm (5.00 to 10.00mS/cm)
EC Calibration one-point at 1.41 mS/cm or 5.00 mS/cm using auto standard recognition; one-point calibration using quick calibration solution
TDS Range 0 to 5000 ppm (TDS conversion factor 0.5 (500 CF)); 0 to 7000 ppm (TDS conversion factor 0.7 (700 CF))
TDS Resolution 10 ppm
TDS Accuracy ± 2% f.s.
EC/TDS Temperature Compensation automatic
Temperature Correction Coefficient β set at 1.9%/°C
EC to TDS Conversion Factor TDS conversion factor 0.5 (500 CF); TDS conversion factor 0.7 (700 CF)
Temperature Range 0.0 to 60.0°C / 32.0 to 140.0°F
Temperature Resolution 0.1°C / 0.1°F
Temperature Accuracy ± 0.5°C /±1°F
Alarm Relay Set Point high and low with enable/disable option for all parameters
Multi-parameter Probe HI981420 is supplied with the HI1285-8 probe
HI981421 is supplied with HI1285-9 probe that has 3/4″ threaded connection for in-line pipe mounting
Logging Type automatic logging for last 30 days at 15 minute interval
Connectivity USB Type-C for flash drive or compatible device
GLP last 5 pH and EC calibrations
Display 128 x 64 pixel B/W LCD with green backlight
Power Supply 12VDC adapter (included)
Environment -5 to 50°C (23 to 122°F); RH max 95% non-condensing
IP Rating IP65
Dimensions 125 x 185 x 38 mm (4.92 x 7.28 x 1.49”)
Weight 333g ( 11.7oz.)
Ordering Information HI981420 is supplied with
HI981421 is supplied with HI1285-9 multi-parameter probe with threaded connection, HI50036-0 Quick Cal buffer solution sachet (2), HI700661P electrode cleaning solution sachets for agriculture (2), 12VDC adapter, calibration certificates for both meter and probe, and instruction manual.
