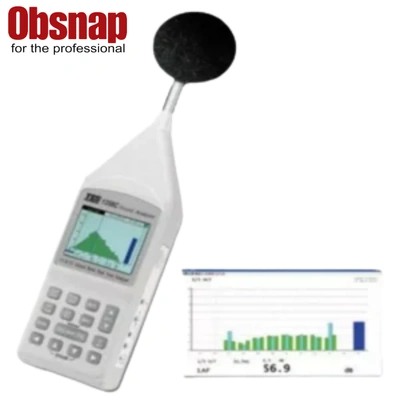

TES-1358C Sound Analyzer Real Time 1/1 & 1/3 Octave band Analysis

Product Features

Superb TFT LCD with backlight and good contrast.
IEC 61672-1 class 2 standard compliance
1/1-Octave and 1/3-Octave analysis in real time.
A trigger, either internal or external, can initiate a measurement.
Output from a comparator to activate external devices
using a USB to transfer data.
90 dB of dynamic range.
real-time calendar and clock.
both AC and DC outputs
4GB mini SD CARD

Categories: Climatic/Environment Inspection, Sound Level Meters

Specification

Applicable standards	IEC 61672-1: 2013 Class 2, IEC 61260-1: 2014 Class 2, ANSI S1.11: 2004 Class 2, ANSI S1.4: 1983 Type 2, ANSI S1.43: 1997 Type 2
Microphone	1/2-inch Electret condenser microphone
Measurement range	30 to 130dB
Measurement level range	20 to 90dB, 20 to 100dB, 20 to 110dB, 30 to 120dB, 40 to 130dB
Measurement function	Lp , Leq , L_E , Lmax , Lmin , L₀₅ , L₁₀ , L₅₀ , L₉₀ , L₉₅
Frequency range	25Hz to 10KHz
Frequency weighting	A ,C and Z
Time weighting	Fast , Slow, τ=10ms, Impulse
Accuracy	±1.0dB (ref 94dB @1KHz)
Display	3.5” 320×240 TFT – LCD display with back light
1/1 Octave and 1/3 Octave band filters	1/1 Octave band center frequencies : (9 bands) 31.5Hz, 63Hz, 125Hz, 250Hz, 500Hz, 1KHz, 2KHz, 4KHz and 8KHz 1/3 Octave band center frequencies : (27 bands)
		25Hz,	31.5Hz,	40Hz,	50Hz,	63Hz,	80Hz,	100Hz,
		125Hz,	160Hz,	200Hz,	250Hz,	315Hz,	400Hz,	500Hz,
		630Hz,	800Hz,	1KHz,	1.25KHz	1.6KHz,	2KHz,	2.5KHz,
		3.15KHz,	4KHz,	5KHz,	6.3KHz,	8KHz,	10KHz

Extension cable	Available in lengths of 5m (TL-F47/5M) and 10m(TL-F47/10M)
Memory capacity	Manual (250 data sets), Auto (250 blocks on micro SD CARD 4GB)
Signal output	AC output : 1 Vrms (at full scale) DC output : 10mV/dB
Power	4 pcs of C size 1.5V (LR14) batteries
External DC power supply	6V, 1A
Battery life	Approx. 2hrs
Operating Temperature/Humidity	-10℃ to 50℃, 10 to 90% RH
Dimensions & Weight	34.5(H)×10(W)×6(D) cm & Approx. 950g (including batteries)
Accessories	Instruction manual, Alkaline battery × 4, Hard carry case, CD-ROM, USB cable, 4GB micro SD card, Adjustment screw driver, Windscreen, 3.5 plug, AC adaptor.
