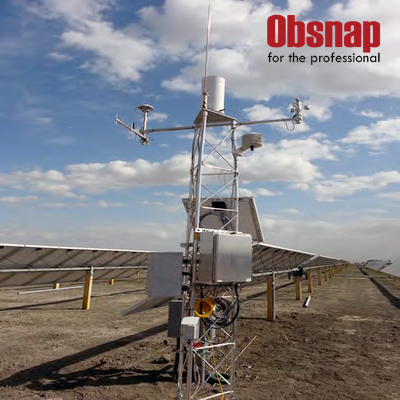

Photovoltaic Station Weather System

Features:

Measures background irradiance, global, horizontal, and plane of array irradiance.
Measures ambient temperature, relative humidity, wind speed, and direction.
Include a surface-mounted thermometer or an RTD probe to measure the temperature of the solar panel.
Preprogrammed, Integrated System Delivered for Easy Installation
IMP-Series or AutoMet Data Logger is used.
Supports DHCP configuration and TCP/IP.
Supports Analog Output (0-1V, 0-5V, 4-20mA) and Serial (RS-232C/ 422/ 485, MODBUS) Output.
Flexible & Simple to Customize.

Specifications:

Two Pyranometers with 35-ft cables and
prewired connectors
102870 Wind Speed and Wind Direction
Sensor with a 15-ft cable and a prewired
connector
102798-1 Relative Humidity & Ambient Air Temperature Sensor with a 15-ftn cable and prewired connector.
102818 Naturally Aspirated Radiation Shield
Surface Mounted Thermistor to Measure Solar Panel Temperature
IMP-800/IMP-900 Series Data Logger or
Automet 500 in NEMA 4X Enclosure
(Includes 12 VDC Power Supply)
T-1100C Tripod (Expandable from 6-ft to
10-ft). Supplied with Lightning Rod and
Guy-Wires
Mounting Accessories for Wind Sensor
and Pyranometers
