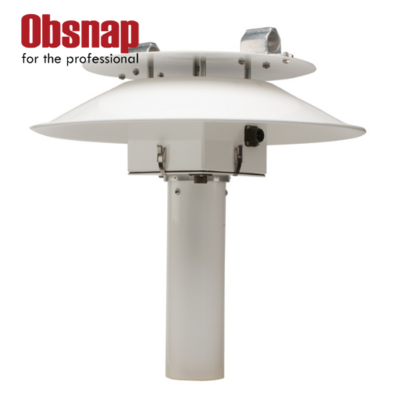

Fan Aspirated Radiation Shield 076B
Features:
- Errors decreased to 0.05°F (0.03°C) or less.
- Simple sensor calibration and upkeep.
- Allow for many sensors to be used for Delta T readings.
- Radiation mistakes unaffected by ambient emissivity.
- Interconnects with low conductivity.
- Either DC or AC power supply.
- Construction that resists corrosion with a glossy white epoxy enamel coating.
- Simple installation and tower maintenance.
Description
Specifications:
| Operating Characteristics | |
| Aspiration: | Electric fan |
| Flow Rate: | 1000 ft/min scrubbing
500 ft/min sample |
| Temperature Range: | Standard -50°C to +85°C (-67°F to 185°F)
Optional -50°C to +100°C (-67°F to 212°F) |
| Power Required: | 115 VAC 20 watts
12 VDC 250 mA 220 VAC 18 watts |
| Sensors | |
| Maximum Number: | Four |
| Models Numbers: | 061/085/T-200A |
| Maximum Diameter: | .75 in (1.9 cm) |
| Maximum Length: | 10 in (25 cm) |
| Transducer Sensing Zone: | 8 in (20 cm) |
| Physical Characteristics | |
| Weight: | 9.3 lbs (4.2 kg) |
| Dimensions: | 20in(51cm)h x 20 in (51 cm) diam. |
| Cable & Mounting | |
| Signal: | PN 2144 Cable Assembly; specify length in feet or meters |
| AC Power: | PN 1954 Cable Assembly; specify length in feet or meters |
| DC Power: | PN 2423 Cable Assembly; specify length in feet or meters |
| Mounting: | Mounts to 3/4 in. IPS horizontal pipe |
| Ordering Information | |
| Model 076B-1: | 115 VAC |
| Model 076B-4: | 12 VDC |
| Model 076B-11: | 220 VAC |
