TQC sheen – Micrometer Film Applicators

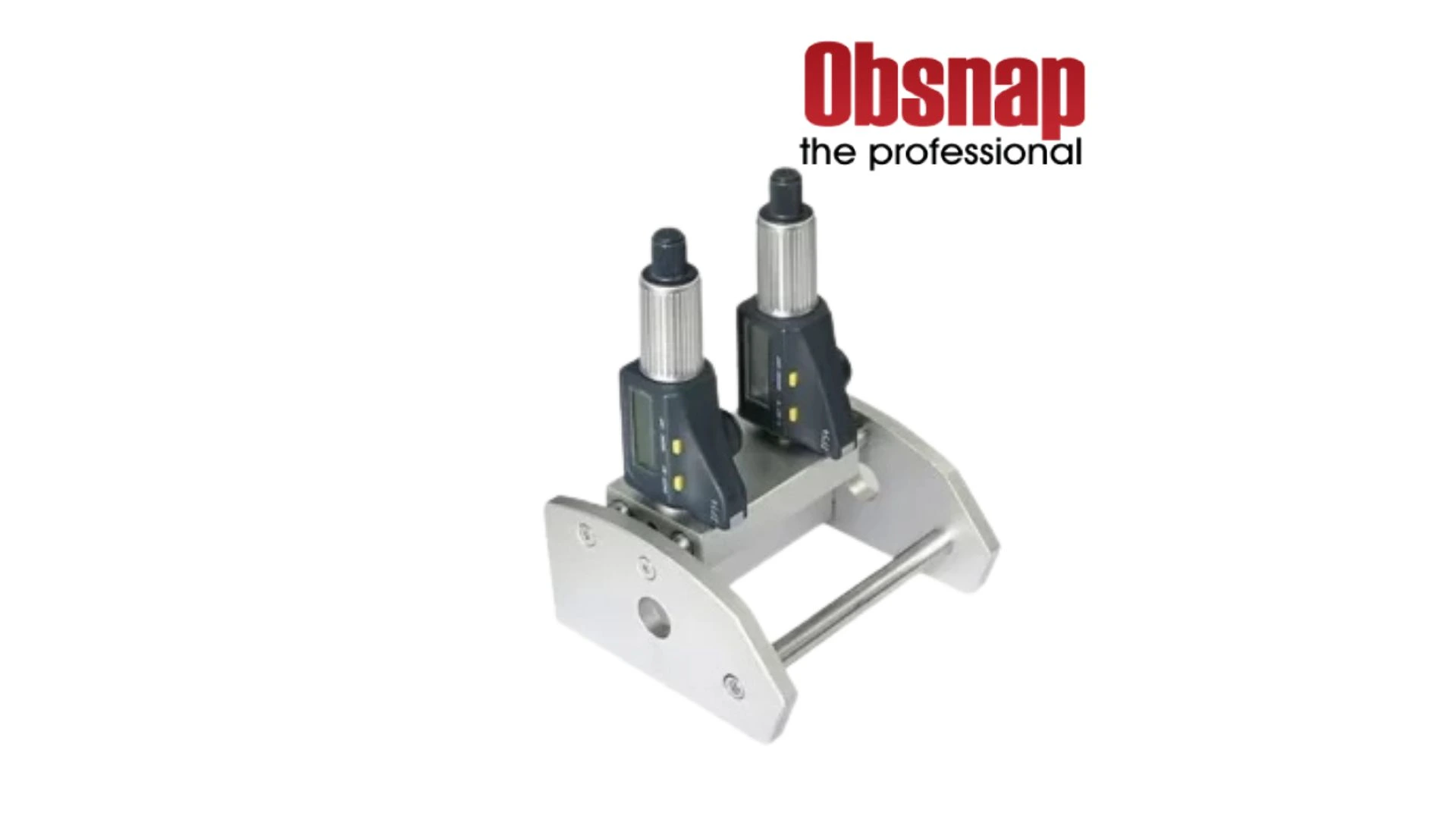

Adjustable Micrometer Film Applicator with stainless steel blade, aluminium frame and chrome thimbles and barrels.
The detachable blade makes cleaning easy. Also, this Micrometer Film Applicator isn’t supplied with springs which can break, rust or get clogged.
Features:
- Stainless steel knife blade with precision ground edge
- Wet film thickness adjustable to 8 mm maximum
- Micrometer head accuracy is ± 10 µm
- Ergonomic design facilitates fast accurate draw downs
- Black anodized aluminium frame provides a large paint well
Description
Specifications:
| Material | Anodized aluminum, through hardened medical grade stainless steel |
| Head accuracy | + 10 µm |
| Gapsize | 0 – 8 mm |
Dimensions and weight:
| Model | Dimensions(D*H*W) | Mass | Max.Filmwidth |
| SH0335 | 105*100*100mm / 4.1*3.9*3.9 inch | 670g / 23.6oz | 75mm / 2.95 inch |
| SH0336 | 105*100*125mm / 4.1*3.9*4.9 inch | 770g / 27.2oz | 100mm / 3.9 inch |
| SH1140 | 105*100*175mm / 4.1*3.9*6.9 inch | 980g / 34.5oz | 150mm / 5.9 inch |
| SH0340 | 105*100*225mm / 4.1*3.9*8.8 inch | 1180g / 41.6oz | 200mm / 7.8 inch |
| SH1142 | 105*100*275mm / 4.1*3.9*10.8 inch | 1395g / 49.2oz | 250mm / 9.8 inch |
| SH3042 | 105*100*325mm / 4.1*3.9*12.8 inch | 1600g / 56.4oz | 300mm / 11.8 inch |
ORDERING INFORMATION
Art. No. LD3570
Micrometric film applicator 75 mm wide
Art. No. LD3571
Micrometric film applicator 100mm wide
Art. No. LD3573
Micrometric film applicator 150mm wide
Art. No. LD3572
Micrometric film applicator 200mm wide
