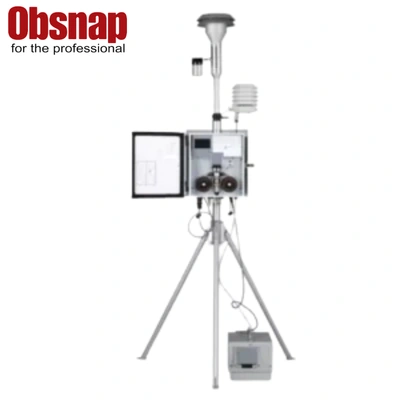

E-BAM PLUS Portable Environmental Beta-Attenuation Mass Monitor
Features:
- Designation by the U.S. EPA for Outdoor PM10 FEM Configuration.
- No adjustment factors, real-time, accurate results regardless of the time of year or location.
- Accurate measurements of semi-volatile nitrates and organic chemicals are made possible by ambient sampling.
- A tripod may be quickly and simply placed on a lightweight, durable design.
- True ambient sampling is possible thanks to all-weather architecture.
- Compatible with CCS COMET Cloud
- Uses AC electricity to operate.
Description
Specifications:
| Measurement Principle | Particulate Concentration by Beta Attenuation |
| U.S. EPA Designations Measurement | PM10 Designation Number: EQPM-1215-226 |
| Measurement Sample Time | 1 Hour |
| Flow Rate | 16.7 L/min inlet flow rate; actual volumetric flow |
| Filter Tape | Continuous glass fiber filter; 30 mm x 21 m roll; > 60 days/roll |
| Span Check | Manual, 800ug (typical), span foil included |
| Beta Source | 4C (carbon-14); 60 µCi ±15 µCi (2.22 MBq) |
| Beta Detector Type | Photomultiplier tube with organic plastic scintillator |
| Operating Temperature Range | -30° to +50°C |
| Operating Humidity Range | 0 – 90% RH, noncondensing |
| Inlet Humidity Control | Actively controlled inlet heater module |
| User Interface | 4.3” graphical touch screen |
| Ambient Sensor | Model 597A combination AT, RH, and BP serial sensor AT: -50° to +70°C; RH: 0 to 98%; BP: 375 to
825 mmHg |
| Analog Outputs | 2 Channels; optically Isolated; Voltage Range 0-1, 0-2.5 or 0-5 VDC, Current Ranges 4-20 MA |
| 7500 Digital Serial Interface | 2 channels, half duplex RS-485 |
| Serial Interface | 1 channel; full duplex RS-232, USB (Shared common serial output) 1 channel; half
duplex RS-485, Baud rates 1200, 2400, 4800, 9600, 19200, 38400, 57600, 115200 |
| Internal Data Storage | 8 Days 1-minute average, 1.3 years 60-minute average |
| External Data Storage | 1 USB Flash drive device |
| Compatible Software Powe | Air Plus 5, COMET™, HyperTerminal® |
| Supply | AC Version: 100 – 230 VAC; 50/60 Hz; 150W, 3A @ 115 VAC/ 2A @ 230 VAC |
| Weight | 75 lbs. (34.1 kg) |
| Dimensions (Without Tripod) | Height: 18 in (46 cm) Width: 16 in (41 cm) Depth: 12 in (31 cm) |
