SCANtECH Trackscan-p42 3d system
Trackscan-P42 3D System
TrackScan-P42 3D system adopts intelligent optical tracking measurement technology and high-quality optical equipment. It carries out ultra-high precision dynamic 3D measurement without markers. This 3D system is widely applied to quality control, product development, reverse engineering, etc.
By freely switching multiple working modes, TrackScan-P42 caters to different scanning situations. 17 crossed blue laser lines enable ultra-fast scanning rate and smooth experience. 7 parallel blue laser lines work for detail capturing. Single blue laser line aims to fast collecting 3D data of deep holes and dead angle positions.
The equipped wireless portable CMM T-Probe delivers flexible measurement, and precisely captures high-precision 3D data of gaps, hole positions, grooves and complex surface. By working with robot-arm, TrackScan-P42 can also realize intelligent online automated 3D inspection.
Benefits of Trackscan-P42 3D System :
-
Intelligent Tracking Without Markers
With intelligent optical tracking measurement, TrackScan-P42 3D system delivers instant scanning without markers, greatly improving work efficiency and decreasing cost.
-
Unrivaled-fast & Detail-maker
17 crossed blue laser lines enable ultra-fast scanning rate of 1,900,000 measurements/s and smooth experience. 7 parallel blue laser lines work for detail capturing. Single blue laser line aims to fast obtain 3D data of deep holes and dead angle positions.
-
Strong Anti-interference Capability
Easily capture 3D data for shiny and black surface; strong anti-interference capability of environment, vibrations and thermal variations.
Portable CMM T-Probe is designed for getting precise 3D data of holes and hidden points, with high single point repeatability of 0.030 mm.
-
Extendable Measuring Volume
Measuring range is dynamically extended by adjusting the positions of E-Track, meanwhile, the accuracy still gets maintained.

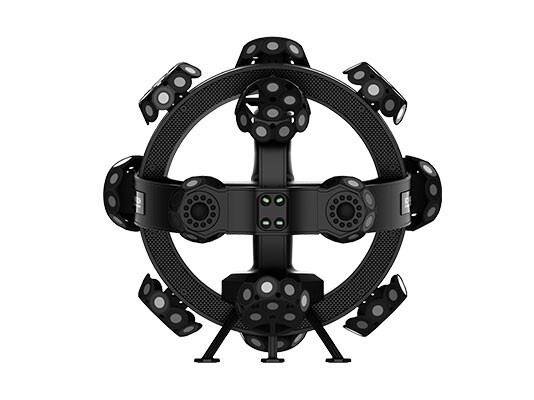

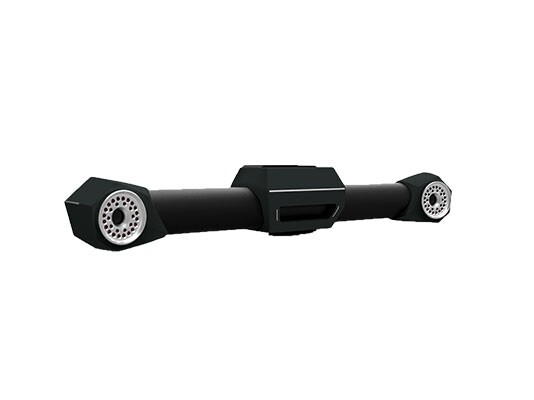

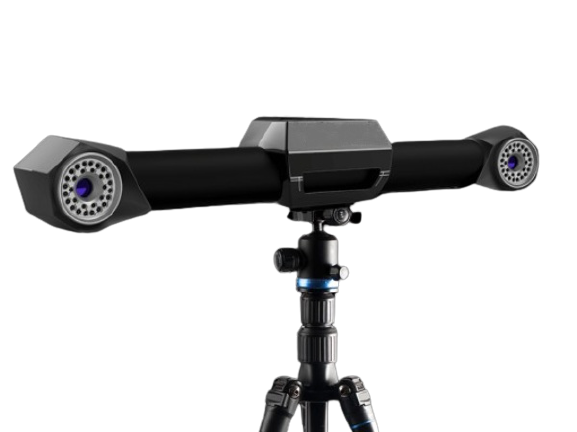

E-Track dual camera sensors reach a wider measurement area and dynamically track the parts.
-
Accurate Composite Positioning
TrackScan-P42 supports modes of camera tracking and marker tracking. In the blind area of E-Track, the scanner can recognize the markers to keep working.
-
Aerospace-grade Materials
TrackScan-P42 3D scanner is shaped of integrated design and made from aerospace-grade carbon fiber materials, sturdy and durable.

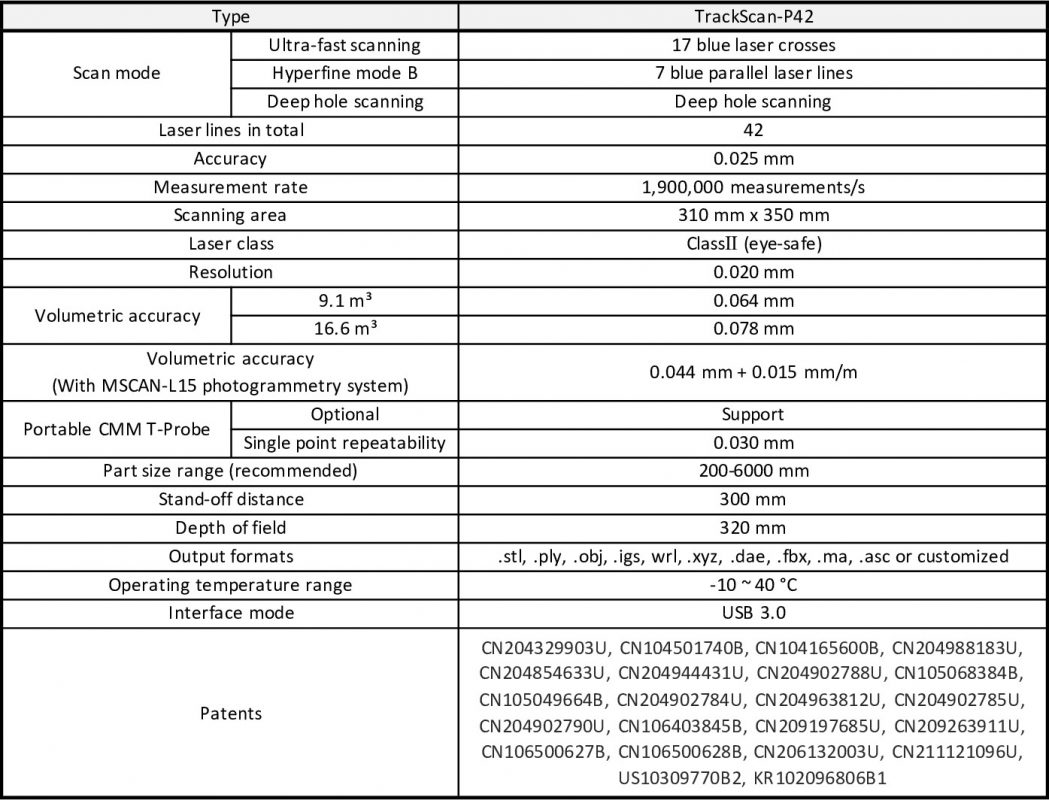

Tech Specs :
Application :
AEROSPACE
Delivers reliable 3D digitalization and NDT solutions for manufacturers in the aerospace industry, bringing disruptive improvements to the manufacturing field.
AUTOMOTIVE
3D scanning technology realizes lower development cost, distinctive design and strict quality control for automakers to explore more valuable potential market.
MANUFACTURING
3D scanning provides competitive advantages to manufacturers and widely applies to each industry of value chain in machinery manufacture.
MOLD
High-precision 3D scanning brings mold manufacturers great convenience and satisfactory efficiency in product development and prolonging product life cycle.
ANTIQUE AND SCULPTURE
3D scanning widely applies to culture relic digitization, culture relic repair, digital museum.
HEALTH CARE
Provides complete and precise 3D solutions for surgeons, health care professionals, and medical equipment manufacturers.
ENERGY
3D scanners are characterized by high precision, fast measurement rate, capturing complete & accurate 3D data, strong environmental adaptability and flexibility.
VR SHOWCASE
3D scanner obtain 3D point cloud from object to acquire accurate and high resolution 3D digital models.
EDUCATION AND RESEARCH
3D scanning technology provides world leading 3D measurement equipment, digital 3D solutions and reliable training services for universities and research institutes.
ENTERTAINMENT
3D laser scanners perform highly realistic 3D reconstruction capabilities in areas such as reproducing real-world objects & characters, constructing virtual scenes, 3D animation production and designing fantastic 3D worlds.
SCANTECH trackscan-p30 3d system
Trackscan-P30 3D System
TrackScan-P30 3D system adopts intelligent optical tracking measurement technology and high-quality optical equipment. It carries out ultra-high precision dynamic 3D measurement without markers. This 3D system is widely applied to quality control, product development, reverse engineering, etc.
By freely switching multiple working modes, TrackScan-P30 caters to different scanning situations. 11 crossed blue laser lines enable ultra-fast scanning rate and smooth experience. 7 parallel blue laser lines work for detail capturing. Single blue laser line aims to fast collecting 3D data of deep holes and dead angle positions.
The equipped wireless portable CMM T-Probe delivers flexible measurement, and precisely captures high-precision 3D data of gaps, hole positions, grooves and complex surface. By working with robot-arm, TrackScan-P30 can also realize intelligent online automated 3D inspection
Benefits Trackscan-P30 3D System
-
Intelligent Tracking Without Markers
With intelligent optical tracking measurement, TrackScan-P30 3D system delivers instant scanning without markers, greatly improving work efficiency and decreasing cost.
-
Unrivaled-fast & Detail-maker
17 crossed blue laser lines enable ultra-fast scanning rate of 1,900,000 measurements/s and smooth experience. 7 parallel blue laser lines work for detail capturing. Single blue laser line aims to fast obtain 3D data of deep holes and dead angle positions.
-
Strong Anti-interference Capability
Easily capture 3D data for shiny and black surface; strong anti-interference capability of environment, vibrations and thermal variations.
Portable CMM T-Probe is designed for getting precise 3D data of holes and hidden points, with high single point repeatability of 0.030 mm.
Benefitting from dynamic referencing function, TrackScan-P30 works normally during part’s position shifting or E-Track movement.
- Accurate Composite Positioning
TrackScan-P42 supports modes of camera tracking and marker tracking. In the blind area of E-Track, the scanner can recognize the markers to keep working.
-
Aerospace-grade Materials
TrackScan-P42 3D scanner is shaped of integrated design and made from aerospace-grade carbon fiber materials, sturdy and durable.

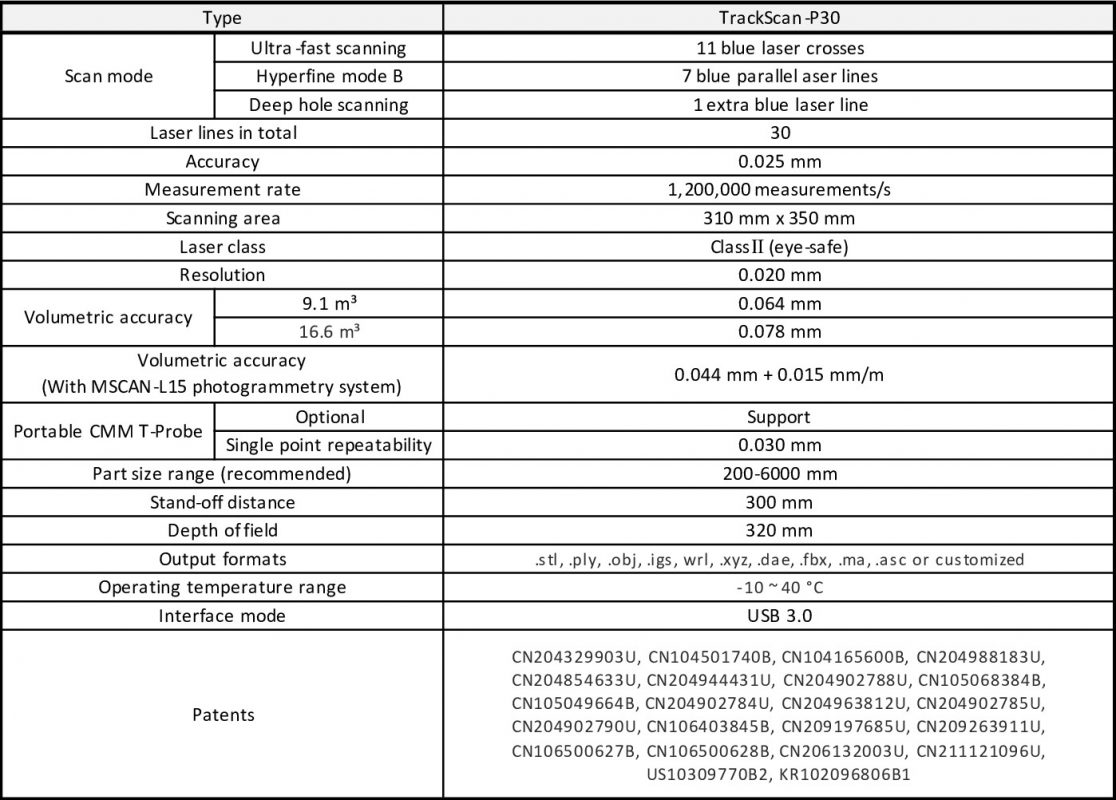

Tech Specs :
Application :
AEROSPACE
Delivers reliable 3D digitalization and NDT solutions for manufacturers in the aerospace industry, bringing disruptive improvements to the manufacturing field.
AUTOMOTIVE
3D scanning technology realizes lower development cost, distinctive design and strict quality control for automakers to explore more valuable potential market.
MANUFACTURING
3D scanning provides competitive advantages to manufacturers and widely applies to each industry of value chain in machinery manufacture.
MOLD
High-precision 3D scanning brings mold manufacturers great convenience and satisfactory efficiency in product development and prolonging product life cycle.
ANTIQUE AND SCULPTURE
3D scanning widely applies to culture relic digitization, culture relic repair, digital museum.
HEALTH CARE
Provides complete and precise 3D solutions for surgeons, health care professionals, and medical equipment manufacturers.
ENERGY
3D scanners are characterized by high precision, fast measurement rate, capturing complete & accurate 3D data, strong environmental adaptability and flexibility.
VR SHOWCASE
3D scanner obtain 3D point cloud from object to acquire accurate and high resolution 3D digital models.
EDUCATION AND RESEARCH
3D scanning technology provides world leading 3D measurement equipment, digital 3D solutions and reliable training services for universities and research institutes.
ENTERTAINMENT
3D laser scanners perform highly realistic 3D reconstruction capabilities in areas such as reproducing real-world objects & characters, constructing virtual scenes, 3D animation production and designing fantastic 3D worlds.
SCANTECH trackscan-p22 3d system

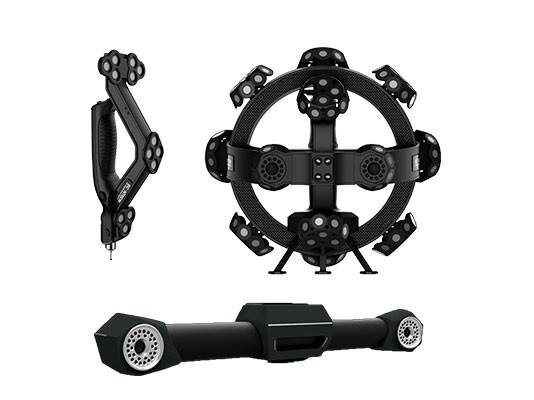

Trackscan-P22 3D System
TrackScan 3D system delivers high-precision 3D digitalization solution without markers.
In combination with 3D laser scanning technology (0.020 mm resolution) and flexible probing function (0.030 mm of single point repeatability), it offers rapid and accurate data collection of overall size and key features.
TrackScan 3D system meets the demands of product development, quality control, reverse engineering, etc. It can work with Robot-Arm to provide the automatic 3D measurement solution for manufacturers.
Benefits of Trackscan-P22 3D System
The optical tracking technology allows high accuracy 3D scanning solution without markers, delivering an easy-operation, time-effective and labor-saving 3D system.

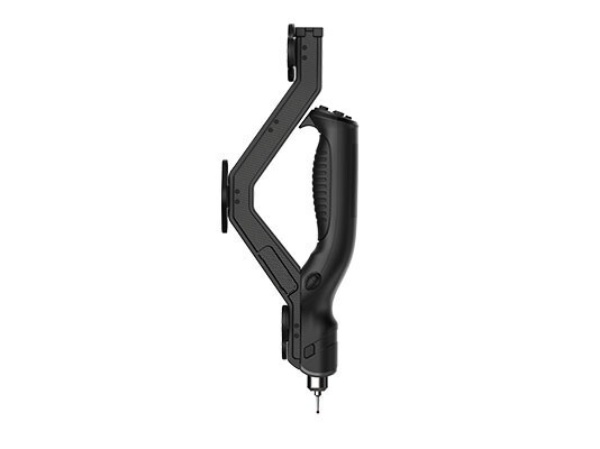

For special requirements, such as hole, edge and cylinder inspection, using portable CMM T-Probe enables high-accuracy measurement and 0.030 mm of single point repeatability.
-
Two Laser Sources in One Scanner
The red laser scan mode performances high flexibility and efficiency, and the blue laser mode easily captures extreme details with 0.020 mm resolution.
TrackScan 3D system supports camera tracking and marker tracking modes. In the blind area of E-Track, the scanner can recognize the markers to keep working in narrow space, such as cockpit and car interior dashboard.
Benefitting from dynamic referencing function, TrackScan 3D system can work normally during part’s position shifting or E-Track movement.
-
Extendable Measuring Volume
The measuring volume is dynamically extended by adjusting the positions of the E-Track, meanwhile the accuracy still gets maintained.
The integrated design makes the TrackScan-P22 sturdy and durable, regardless of environment instability, vibrations and thermal variations.

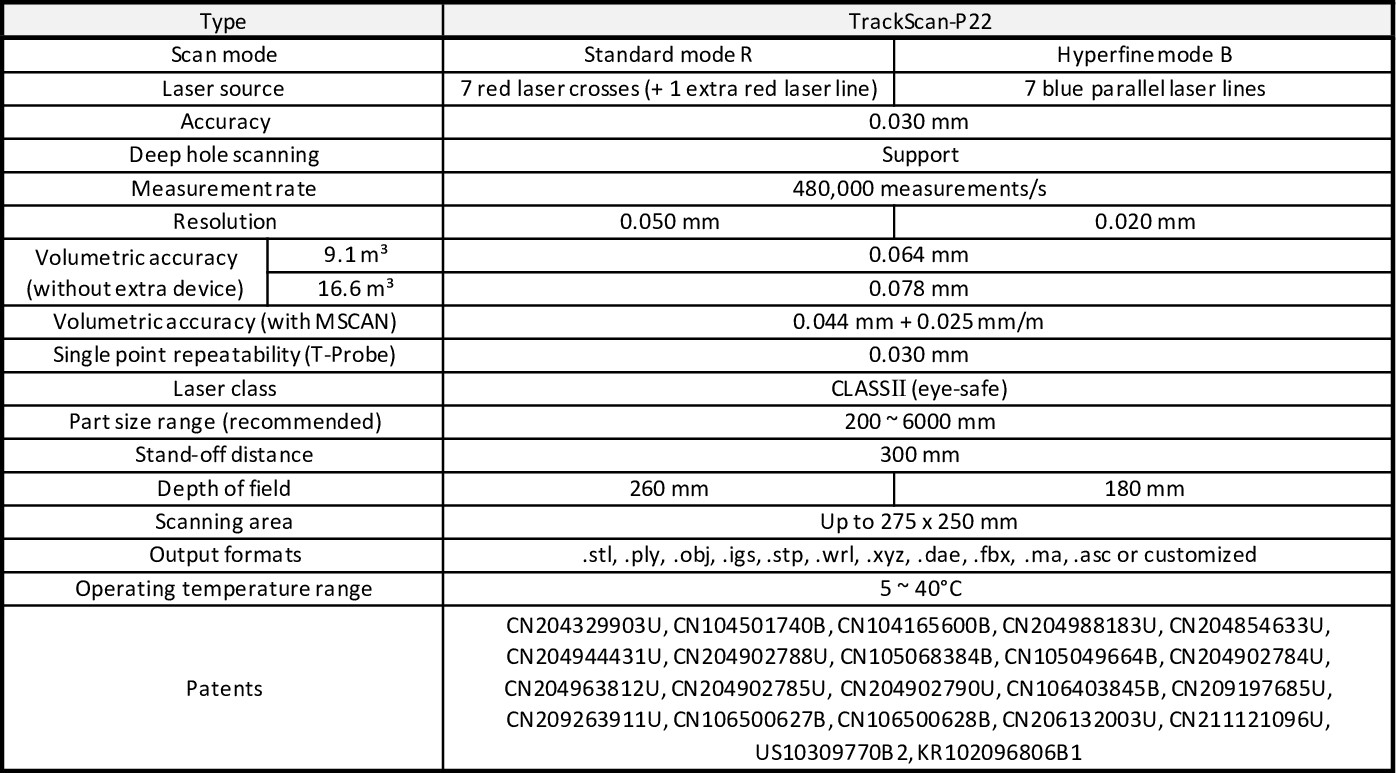

Tech Specs :
Application :
AEROSPACE
Delivers reliable 3D digitalization and NDT solutions for manufacturers in the aerospace industry, bringing disruptive improvements to the manufacturing field.
AUTOMOTIVE
3D scanning technology realizes lower development cost, distinctive design and strict quality control for automakers to explore more valuable potential market.
MANUFACTURING
3D scanning provides competitive advantages to manufacturers and widely applies to each industry of value chain in machinery manufacture.
MOLD
High-precision 3D scanning brings mold manufacturers great convenience and satisfactory efficiency in product development and prolonging product life cycle.
ANTIQUE AND SCULPTURE
3D scanning widely applies to culture relic digitization, culture relic repair, digital museum.
HEALTH CARE
Provides complete and precise 3D solutions for surgeons, health care professionals, and medical equipment manufacturers.
ENERGY
3D scanners are characterized by high precision, fast measurement rate, capturing complete & accurate 3D data, strong environmental adaptability and flexibility.
VR SHOWCASE
3D scanner obtain 3D point cloud from object to acquire accurate and high resolution 3D digital models.
EDUCATION AND RESEARCH
3D scanning technology provides world leading 3D measurement equipment, digital 3D solutions and reliable training services for universities and research institutes.
ENTERTAINMENT
3D laser scanners perform highly realistic 3D reconstruction capabilities in areas such as reproducing real-world objects & characters, constructing virtual scenes, 3D animation production and designing fantastic 3D worlds.
