SCANTECH GLOBAL 3D SCANNER

AXE-B17 3D Scanner

AXE-B17 3D scanner utilizes optical measurement technology with a scanning speed of 2,000,000 measurements/s, quickly capturing 3D data of the object and getting precise deviations on the geometric surface.

With global initiative built-in photogrammetry system, AXE-B17 outputs ultra-large scanning area and metrology-grade measurement accuracy. Getting rid of limitations like size, shape, material and complexity of the object, AXE-B17 can freely choose working modes of efficient high-speed scanning and accurate deep hole scanning. It achieves ultra-high precision 3D inspection of medium to large-sized projects without the aid of extra devices.

Benefits of AXE-B17 3D Scanner

  • Speed-Oriented

17 crossed blue laser lines enable extremely fast and precise response with 2,000,000 measurements/s

  • Flexible Switching

Working modes are capable of freely switching based on scanning needs: efficient unrivaled-speed scanning; accurate deep hole scanning, dealing with intricate positions like deep holes and dead angles.

  • Unprecedented Patent

The global initiative built-in photogrammetry system is tailored for measuring medium to large-sized objects, with 0.030mm/m of volumetric accuracy.

  • Ultra-wide Version

Ultra-wide scanning area of 860 mm × 600 mm allows an optimal and smoother 3D scanning experience.

  • Stand-alone Operation

Operate alone to perform precise 360 ° real-time 3D inspection for medium to large-sized workpieces.

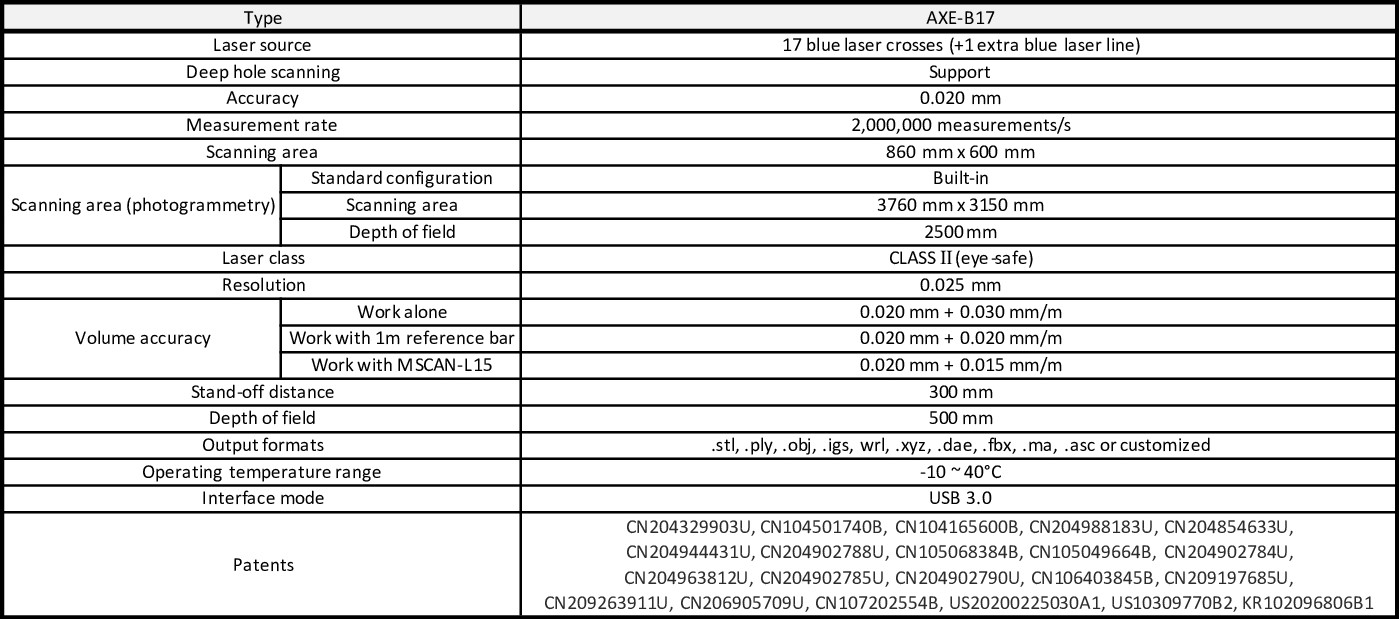

Tech Specs :

Application :

AEROSPACE

Delivers reliable 3D digitalization and NDT solutions for manufacturers in the aerospace industry, bringing disruptive improvements to the manufacturing field.

AUTOMOTIVE

3D scanning technology realizes lower development cost, distinctive design and strict quality control for automakers to explore more valuable potential market.

MANUFACTURING

3D scanning provides competitive advantages to manufacturers and widely applies to each industry of value chain in machinery manufacture.

MOLD

High-precision 3D scanning brings mold manufacturers great convenience and satisfactory efficiency in product development and prolonging product life cycle.

ANTIQUE AND SCULPTURE

3D scanning widely applies to culture relic digitization, culture relic repair, digital museum.

HEALTH CARE

Provides complete and precise 3D solutions for surgeons, health care professionals, and medical equipment manufacturers.

ENERGY

3D scanners are characterized by high precision, fast measurement rate, capturing complete & accurate 3D data, strong environmental adaptability and flexibility.

VR SHOWCASE

3D scanner obtain 3D point cloud from object to acquire accurate and high resolution 3D digital models.

EDUCATION AND RESEARCH

3D scanning technology provides world leading 3D measurement equipment, digital 3D solutions and reliable training services for universities and research institutes.

ENTERTAINMENT

3D laser scanners  perform highly realistic 3D reconstruction capabilities in areas such as reproducing real-world objects & characters, constructing virtual scenes, 3D animation production and designing fantastic 3D worlds.

AXE-B11 3D Scanner

AXE-B11 3D scanner opens up a new 3D experience to large-scale 3D measurement without an extra device.

The 11 crossed blue lasers greatly increase the measurement rate to 1,300,000 measurements/s. And the single blue laser line can rapidly obtain 3D data of deep hole and inaccessible positions of complex objects.

The built-in photogrammetry function can scan large-scale objects with ultra-high accuracy individually (volumetric accuracy up to 0.020 mm/m and accuracy up to 0.020 mm).

Benefits of AXE-B11 3D Scanner

  • Accurate Measurement

The built-in photogrammetry system improves volumetric accuracy up to 0.020 mm/m and accuracy up to 0.020 mm. AXE-B11 offers professional 3D scanning for large-volumes without an extra device.

  • Super-efficiency

The ultra-fast speed facilitates the process of measuring large volumes by 1,300,000 measurements/s, saving numerous working time and labor cost. With 550 mm × 600 mm of scan area, it only needs very few markers to finish the scanning.

  • Double Scanning Mode

Due to 11 crossed blue lasers + 1 extra blue laser line, AXE-B11 supports high-efficiency mode for large-scale scanning and single line scanning mode meets special requirements, such as deep hole and dead angle inspection.

  • Versatile Combination

AXE-B11 3D scanner fulfills different measurement demands by freely matching with the accurate reference bar, Helpers engineer kit, etc.

Tech Specs :

Application :

AEROSPACE

Delivers reliable 3D digitalization and NDT solutions for manufacturers in the aerospace industry, bringing disruptive improvements to the manufacturing field.

AUTOMOTIVE

3D scanning technology realizes lower development cost, distinctive design and strict quality control for automakers to explore more valuable potential market.

MANUFACTURING

3D scanning provides competitive advantages to manufacturers and widely applies to each industry of value chain in machinery manufacture.

MOLD

High-precision 3D scanning brings mold manufacturers great convenience and satisfactory efficiency in product development and prolonging product life cycle.

ANTIQUE AND SCULPTURE

3D scanning widely applies to culture relic digitization, culture relic repair, digital museum.

HEALTH CARE

Provides complete and precise 3D solutions for surgeons, health care professionals, and medical equipment manufacturers.

SOLAR

3D scanners are characterized by high precision, fast measurement rate, capturing complete & accurate 3D data, strong environmental adaptability and flexibility.

VR SHOWCASE

3D scanner obtain 3D point cloud from object to acquire accurate and high resolution 3D digital models.

EDUCATION AND RESEARCH

3D scanning technology provides world leading 3D measurement equipment, digital 3D solutions and reliable training services for universities and research institutes.

ENTERTAINMENT

3D laser scanners  perform highly realistic 3D reconstruction capabilities in areas such as reproducing real-world objects & characters, constructing virtual scenes, 3D animation production and designing fantastic 3D worlds.

AXE-G7 3D Scanner

AXE-G7 3D scanner combines the whole advantages and functions of normal handheld 3D scanners.

The biggest breakthrough of AXE-G7 3D laser scanner is to overturn the 3D measurement way for large-volume. It achieves high accuracy scanning for large volumes without an extra device.

AXE 3D laser scanner delivers 3D measurement individually instead of the traditional handheld 3D scanners with photogrammetry system, greatly reducing the cost of device, time and labor.

Benefits of AXE-G7 3D Scanner

  • Enhance 3D Measuring Efficiency

Time and cost is essentially important in industrial 3D measurement.
The big strength of AXE is based on efficiency boost.

  • AXE Time-Saving

AXE 3D scanner only requires half quantity of stickers than normal handheld 3D scanners, and the work time saves a lot in dealing with stickers when scanning large workpieces.

  • Wider Scan Area and Faster Measuring

Double scan area acquires 3D scanning data faster.

  • Easy Carrying and Light Travel

  • Accurate Extreme Volumetric

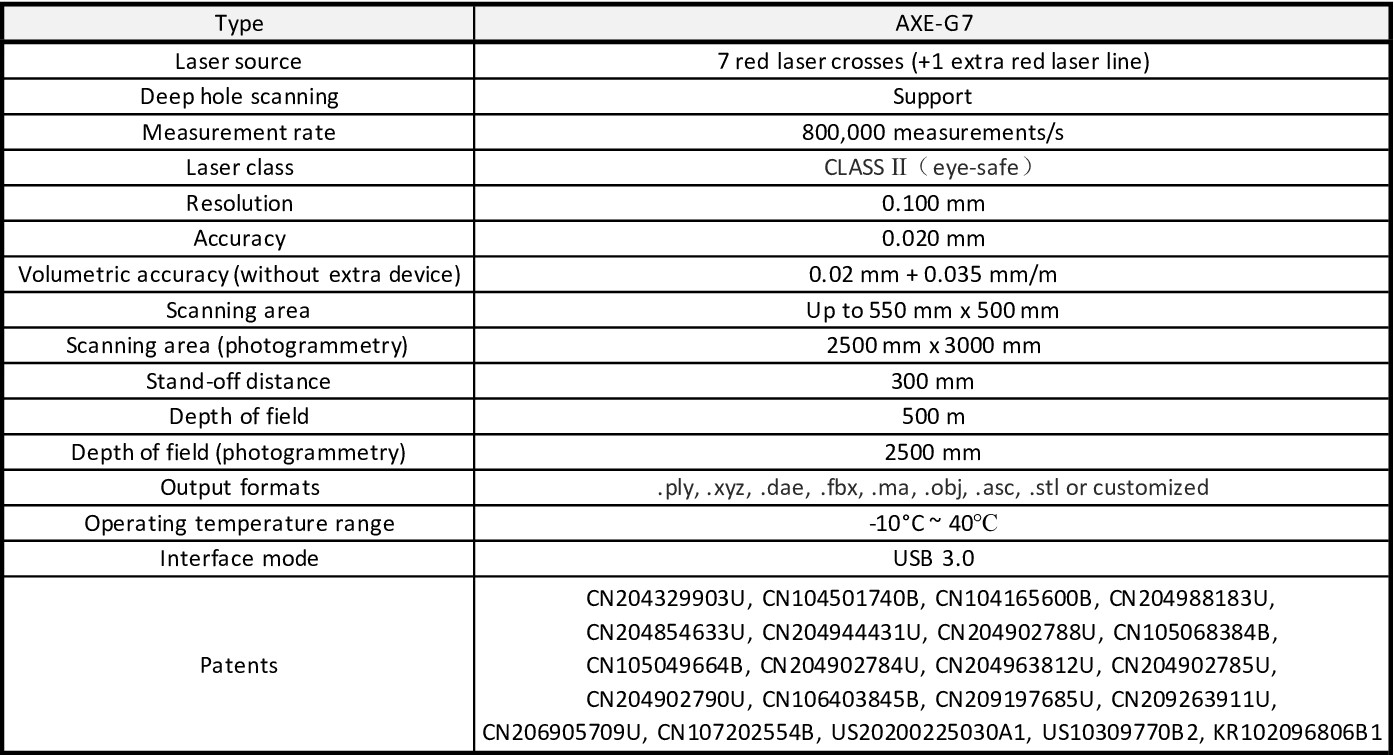

Tech Specs :

Application :

AEROSPACE

Delivers reliable 3D digitalization and NDT solutions for manufacturers in the aerospace industry, bringing disruptive improvements to the manufacturing field.

AUTOMOTIVE

3D scanning technology realizes lower development cost, distinctive design and strict quality control for automakers to explore more valuable potential market.

MANUFACTURING

3D scanning provides competitive advantages to manufacturers and widely applies to each industry of value chain in machinery manufacture.

MOLD

High-precision 3D scanning brings mold manufacturers great convenience and satisfactory efficiency in product development and prolonging product life cycle.

ANTIQUE AND SCULPTURE

3D scanning widely applies to culture relic digitization, culture relic repair, digital museum.

HEALTH CARE

Provides complete and precise 3D solutions for surgeons, health care professionals, and medical equipment manufacturers.

SOLAR

3D scanners are characterized by high precision, fast measurement rate, capturing complete & accurate 3D data, strong environmental adaptability and flexibility.

VR SHOWCASE

3D scanner obtain 3D point cloud from object to acquire accurate and high resolution 3D digital models.

EDUCATION AND RESEARCH

3D scanning technology provides world leading 3D measurement equipment, digital 3D solutions and reliable training services for universities and research institutes.

ENTERTAINMENT

3D laser scanners  perform highly realistic 3D reconstruction capabilities in areas such as reproducing real-world objects & characters, constructing virtual scenes, 3D animation production and designing fantastic 3D worlds.
