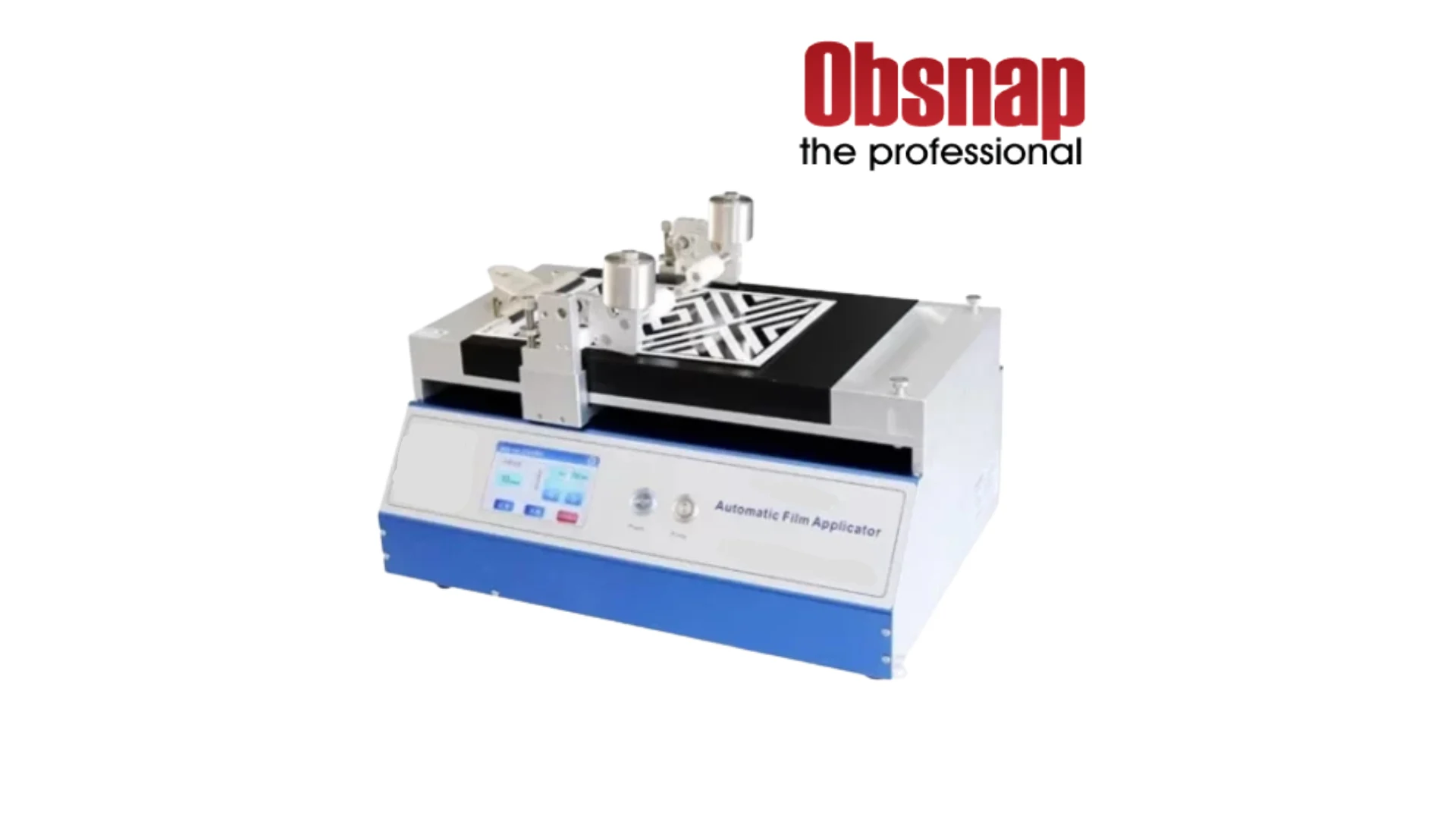

TQC sheen – AUTOMATIC FILM APPLICATOR COMPACT

The AFA Compact is an entry level film applicator that accepts charts up to A4 size. Application speed can be set from 1 to 150 mm/s. The Compact is suitable for both wire wound rod applicators and block applicators. Operating is easy through the standard TQC operating interface. The AFA Compact is available with a glass bed of a perforated vacuum bed.

Features:

Charts up to A4 size max.
Application speed 1 / 150 mm/s
Application speed infinitely adjustable
Compatible with a large range of application tools
Easy intuitive operating interface with Triple i Control (Intelligent Illumination Interface)
Removable Drip Pan
Safe 24V powered

Category: Film Applicators

Description

Specifications:

TRAVERSE SPEED	1 – 150 mm/s / 0.03 – 5.90 inch/s
SPEED ACCURACY	< 1%
STROKE LENGTH	250 mm / 9.84 in
STROKE LENGTH ACCURACY	<1 mm (0,025 mm/step) / <0.03 inch
MAX. TEST CHART SIZE	DIN A4
MAX. TEST SUBSTRATE THICKNESS	8 mm / 0,31 inch (incl coating)
MAX. SIZE OF PANEL	300x200x8 mm / 11.81×7.87×0.31 inch
MAX. HEIGHT FILM APPLICATORS	40 mm / 1.57 inch
MIN. WIRE BAR LENGTH	>220 mm / >8.66 inch
WIRE BAR DIAMETER	6 – 12,7 mm / 0.23 – 0.5 inch
VOLUME DRIP PAN	30 ml
MIN. VACUUM	-100 mbar
DIAMETER VACUUM HOLES	1,3 mm / 0.05 inch
DISTANCE VACUUM BED HOLES	22 mm / 0.86 inch
NUMBER OF HOLES IN VACUUM BED	117
VACUUM CONNECTION	6 mm / 0.23 inch Quick Connect
DIMENSIONS	335x400x190 mm / 13.18×15.74×7.48 inch
MASS	12,5 kg / 27.55 lbs
POWER	110 – 240VAC / 50 – 60Hz
POWER CONSUMPTION	Max. 40 Watt
DISPLAY	128 x 64 pixels graphical LCD, 70 mm x 40 mm, white illuminated, heated
LANGUAGES	English
