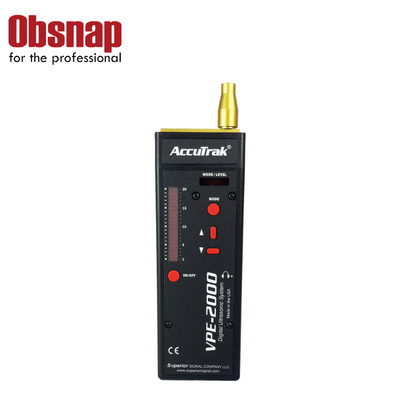

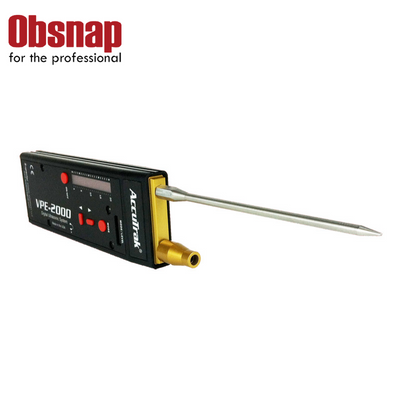

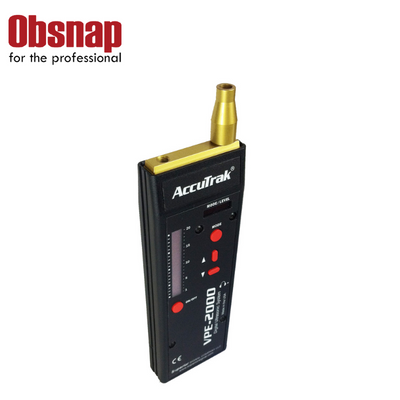

Superior Signal – VPE-2000 Digital Ultrasonic Leak Detector

The VPE-2000 Ultrasonic Leak Detector is a professional diagnostic instrument designed to locate air, gas, vacuum, and refrigerant leaks quickly and accurately. With digitally controlled heterodyne technology, 256-step sensitivity adjustment, and dual probe detection, it converts ultrasonic signals into audible sound for efficient troubleshooting in industrial environments.

  • Advanced Ultrasonic Detection: Detects compressed gas, vacuum, and refrigerant leaks
  • 256-Step Digital Sensitivity & Volume Control for precise signal tuning
  • Visual + Audio Monitoring: LED bar graph with digital display and peak hold
  • Long Battery Runtime: 55–80 hours operation with 9V battery

Description

The VPE-2000 Ultrasonic Leak Detector is designed for industrial maintenance professionals, plant engineers, and facility technicians who need reliable diagnostic tools. Featuring digitally controlled heterodyne conversion, the device captures ultrasonic signals within 16–42 kHz frequency ranges and converts them into audible sound for quick analysis. The dual detection modes, including airborne and touch probe sensing, allow technicians to inspect leaks, valves, bearings, and mechanical components with high accuracy.

Equipped with 256-step digital sensitivity and volume control, the VPE-2000 enables users to fine-tune detection settings even in noisy environments. The 20-element LED bar graph with digital alphanumeric display provides simultaneous visual and numerical readings for easy comparison. Built with a durable aluminum and ABS housing and featuring digital peak hold and memory storage, this device is ideal for industrial plants, hospitals, schools, hotels, and manufacturing facilities performing preventive maintenance and leak detection.

Features

  • Digital LED indicators (alphanumeric and bar-graph)
  • Digital frequency selection (with SONIC probe mode)
  • Digital PEAK HOLD feature
  • Separate volume and sensitivity controls
  • Digital mode selection
  • Stores all settings in memory
  • Wide dynamic range (256 steps)
  • Digitally tuned for maximum repeatability
  • Dual sensors (no changing heads)
  • 5 sensors / frequency modes, including Sonic
  • Provides both sound and visual indicators
  • Peak hold display keeps the highest level visible for accurate readings



Specification

Specification Details
Airborne Sensor Sensitivity -80 db/V–μbar
Detection Performance 5 mil ID @ 5 PSI from 50 ft (15.24 m)
Conditions 60 dB Ambient Sound Level (No In-band Sound)
Ultrasound Converter Types Digitally Controlled Heterodyne
Frequency Response Airborne High: 36–42 kHz
Airborne Low: 26–34 kHz
Touch Probe High: 36–42 kHz
Touch Probe Low: 16–24 kHz
Touch Probe Sonic: 0–10 kHz
Heterodyne Oscillator Digital
Heterodyne Filter 4 kHz
Controls 4 Buttons
Digital Sensitivity Control: 256 Steps
Digital Volume Control: 256 Steps
Output Audio: 0 Hz to 4 kHz
Visual: 20 Element Bar Graph with PEAK-Hold
Separate Alphanumeric Digital Display for simultaneous readings and comparisons
Signal Output Heterodyne
Indicators ON Indicator: Digital Display
Low Battery Indicator: Digital Display (BATT)
Insufficient Battery Charge: Automatic Shut-Down
Battery Type 9 Volt
Run Time 55 to 80 hours
Shape Parallelepiped
Dimensions 7.075 x 2.4 x 0.875″ (17.97 x 61 mm x 22.22 mm)
Overall Length 8.185″ (20.78 cm)
Body Materials Aluminum and ABS
Body Finish Anodized, Gold (MIL-A-8625 Type3 Class2), Black ABS
Connector 3.5 mm Stereo
Top Label Velvet Lexan, Back Printed
Weight 0.5 lbs (233 g) Includes Battery

Application

  • The VPE-2000 is ideal for large institutional or industrial settings such as schools, hospitals, hotels, and factories.
  • The VPE-2000 Ultrasonic Leak Detector is suitable for a wide range of leak detection and plant maintenance applications.
  • Detection of Leaks: Air, Vacuum, and Refrigerant Leaks; ANY Compressed Gas
  • Steam Traps: Instantly detect live steam loss
  • Valve Inspection: Detect internal leakage in check, ball, needle, gate, or other valve types; thermal expansion valves can be diagnosed in just five minutes
  • Bearings: Detect wear and lubrication issues before they cause damage
  • Electrical Systems: Check circuit breakers, relays, and buss bars for electric arc and corona; examine contacts for corrosion and proper insulation
  • Pneumatics and Hydraulics: Inspect controls, hoses, tools, fittings, and internal cylinders
  • Vibration Monitoring: Listen for ultrasonic sound produced by excessive friction
  • Belts for Fans: Detect belt condition issues
