Mahr Metrology MarSurf WI 50

Flexible all-round measuring solution

The MarSurf WI 50 is a powerful surface profiler for the three-dimensional measurement and analysis of surfaces – contactless, independent of material, and fast.

Flexible all-round measuring solution

Flexible all-round measuring solutions all the time – wherever it comes down to sub-nanometers: That’s what the MarSurf WI 50 stands for. The high-precision measuring tools for research and quality assurance deliver reliable 3D measuring values – quickly and easily in just a few steps. Thanks to its HD stitching function, the MarSurf WI 50 boasts consistently high resolution, even on large measuring surfaces. The integrated collision detection offers users a high level of safety in all directions – both for the workpiece and the instrument itself.

Typical measuring tasks

Roughness measurements as per
ISO 4287 & ISO 13565 / ISO 25178

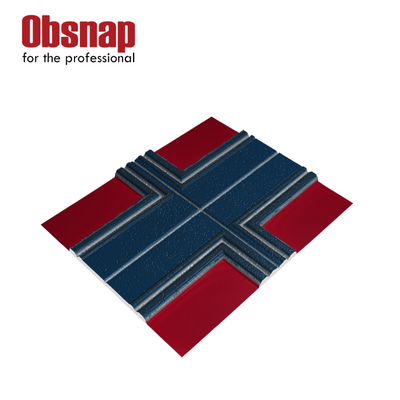

Topography measurements (including volume, wear, tribology)
contour and form (2D, 3D)
pore, particle analysis
defect detection

Maximum data quality

One of our most important criteria, which equates to excellent precision, accuracy, reproducibility, and documentation to ensure traceability and auditability. Our greatest service for the customer is to provide a quantitative measuring value that can be implemented reliably in the engineering, product, process design, and quality control areas.

Category: 3D surface measurement

Description

MarSurf WI 50 \| Art.-Nr. 6355001
Resolution	up to 0.2 (nm) vertical
Measuring speed	up to 140 fps
Measuring principle	White light interferometer High-power LED (650 nm / white)
Other	Collision detection in xyz direction
Power supplied	100 – 240 V
Surface parameters	ISO 4287, ISO 13565, ISO 25178 …
