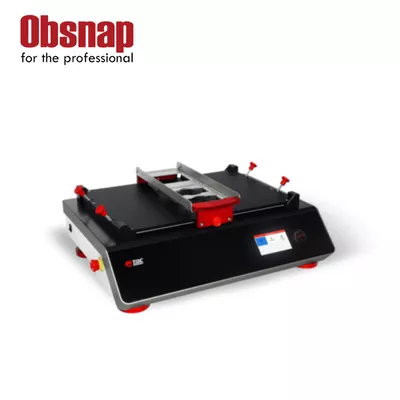

TQC sheen – SCRUB ABRASION AND WASHABILITY TESTER

The TQC Scrub Abrasion and Washability Tester is used to test the resistance of paint, varnish or coatings to scratching, wearing, and color loss due to wet or dry abrasion, by simulating everyday wear from cleaning actions or general use. The test is either used as a “pass or fail” test by testing to a specified number of strokes or defining the minimum number of strokes at which a coating fails by checking at regular intervals. The TQC Scrub Abrasion and Washability Tester is suitable for a wide range of scrub, abrasion and washability tests that are in use.

Description

Specifications:
TRAVERSE SPEED 1 – 60 cycles per minute
TRAVERSE SPEED ACCURACY +/- 1% of set speed
STROKE LENGTH 20 – 300 mm / 0.39 – 11.81 in
STROKE LENGTH ACCURACY +/- 0.01 mm
PUMP FLOW RATE 0.0 – 3.0 ml per minute / 0.0 – 0.79 GPH
MAX. PANEL LENGTH 350 mm / 13.78 in
MAX. PANEL WIDTH 70 mm / 2.76 in
MAX. PANEL THICKNESS 35 mm / 1.38 in
DIMENSIONS 490x640x235 mm / 19.3×25.2×9.24 in
HEIGHT WITH PUMPS 530 mm / 20.87 in
MASS 33 kg
POWER 100 – 240VAC / 50 – 60Hz
POWER CONSUMPTION Max. 50 Watt
DISPLAY 480 x 272 pixel TFT panel
CONTROLS 5-key Navigation Switch, Mouse and Keyboard Optional



Features:
  • Preset range option
  • Easy intuitive operating interface with Triple i Control (Intelligent Illumination Interface)
  • Full color display
  • Easy to update software
  • Manual movement
  • Compatible with a large range of accessories
