Description
This digital multimeter is designed for precise and convenient data acquisition in both field and laboratory settings. It communicates with a PC through the RS-232 interface, allowing real-time monitoring, analysis, and logging of measurements. The built-in data logger function enables up to 4048 data entries to be recorded independently of a computer, making it ideal for long-term field testing or intermittent measurement tasks.
With direct input for voltage, current, resistance, frequency, capacitance, and temperature, this DMM eliminates the need for additional signal modification or adapters. The Go/No Go alarm output provides an added layer of control, enabling automated responses or alerts based on predefined measurement thresholds. Its compact design and multi-functional capabilities make it suitable for electrical engineers, technicians, and quality control professionals.
Specifications
Accuracies are ±(…% of reading + …digits) at 23°C±5°C, below 80% RH
DC Voltage
| Range |
Resolution |
Accuracy |
Input Impedance |
Overload Protection |
| 200mV |
0.1mV |
0.5%+1 |
10MΩ |
600Vrms |
| 2V |
1mV |
1100Vrms |
| 20V |
10mV |
| 200V |
100mV |
| 1100V |
1V |
0.5%+2 |
AC Voltage (50Hz to 500Hz)
| Range |
Resolution |
Accuracy |
Input Impedance |
Overload Protection |
| 200mV |
0.1mV |
1%+5 |
10MΩ |
600Vrms |
| 2V |
1mV |
750Vrms |
| 20V |
10mV |
| 200V |
100mV |
| 750V |
1V |
1.2%+5 |
DC Current
| Range |
Resolution |
Accuracy |
Burden Voltage |
Overload Protection |
| 200uA |
0.1uA |
1%+1 |
0.35V
|
0.5A/250V Fast
Blow Fuse & Diode |
| 20mA |
1uA |
| 20mA |
10uA |
| 200mA |
100uA |
| 20A |
10mA |
1.2%+3 |
0.8V |
20A/380V Fast Blow Fuse
20A for 30sec max.
10A Continuity |
AC Current (50Hz to 500Hz)
| Range |
Resolution |
Accuracy |
Burden Voltage |
Overload Protection |
| 200uA |
0.1uA |
1.2%+3 |
0.35V |
0.5A/250V Fast
Blow Fuse & Diode |
| 2mA |
1uA |
| 20mA |
10uA |
| 200mA |
100uA |
| 20A |
10mA |
1.5%+5 |
0.8V |
20A/380V Fast Blow Fuse
20A for 30sec max.
10A Continuity |
Frequency (Hz)(Test Range 10Hz – 10MHz Auto Range)
| Range |
Resolution |
Accuracy |
Sensitivity |
Overload Protection |
| 2KHz |
1Hz |
0.5%+2 |
1.5Vrms |
600Vrms |
| 20KHz |
10Hz |
| 200KHz |
100Hz |
| 2MHz |
1KHz |
| 10MHz |
10KHz |
3Vrms |
Temperature Probe Used: K(CA) type sensor
| Range |
Resolution |
Accuracy |
| °C |
0.1/1°C |
0°C ~ 200°C ±(0.5%+1.5°C)
-50°C ~ 0°C ±(1%+2°C)
200°C ~ 1300°C ±(1%+2°C) |
| °F |
0.1/1°F |
32°F ~ 200°F ±(0.5%+3°F)
-58°F ~ 32°F ±(1%+5°F)
200°F ~ 1999°F ±(1%+4°F) |
Capacitance (F)
| Range |
Resolution |
Accuracy |
Test Frequency |
| 2000pF |
1pF |
3%+10 |
400Hz |
| 200nF |
100pF |
| 2uF |
1nF |
| 20uF |
10nF |

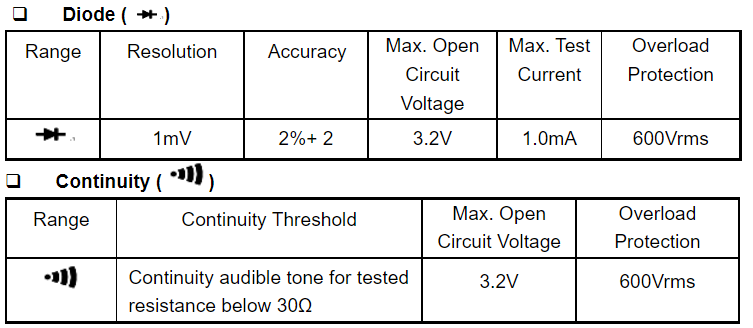

Display:
3 ½ Digital LCD Display Maximum Reading 1999
Sampling Rate: 2.5 readings per second
Operating/Storage Condition:
0°C to 40°C<80% R.H.
-10°C to 60°C<70% R.H.
Power Source: One 9V Battery
Battery Life Approx. 60 hours (Alkaline Battery)
Size & Weight: 180(L)x82(W)x38(H)mm & 365g
Accessories: Test leads (pair), Spare fuse (0.5A/250V), Battery, Instruction Manual, Software, RS-232 Cable, “K” type thermocouple (TP-K01)
Resistance (Ω)
| Range |
Resolution |
Accuracy |
Max. Open Circuit Voltage |
Overload Protection |
| 200 Ω |
0.1 Ω |
0.8%+2 |
3.2V |
600Vrms |
| 2KΩ |
1 Ω |
0.5V |
| 20KΩ |
10 Ω |
| 200KΩ |
100 Ω |
| 2MΩ |
1KΩ |
| 20MΩ |
10KΩ |
1.5%+3 |
