TES LCR Trms Multimeter TES-2950
LCR Trms Multimeter
- Variable-frequency drive (VFD) V & Hz Measurement
- Data hold, Auto hold & Peak hold mode
- Max/Min/Avg record mode
- Relative value display
- Frequency Count (Auto-Ranging)
- Temperature type K, J Measurement
- Inductance & Capacitance measurement

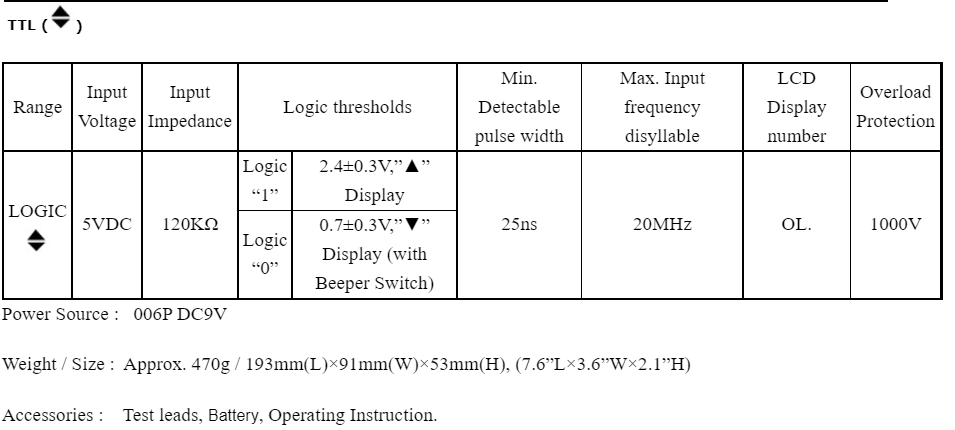

- 20MHz TTL Logic Check
Categories: Electrical Inspection, Multimeter
Description
SPECIFICATIONS:
Accuracies ±(…% of reading +…digits) at 23°C±5°C and below 80%RH
DC Voltage
Range
|
Resolution | Accuracy | Input Impedance | Overload Protection |
400mV | 0.1mV |
±0.5%±1 |
10MΩ |
1000V |
4V | 1mV | |||
40V | 10mV | |||
400V | 100mV | |||
1000V | 1V |
AC Voltage (Trms)
Range
|
Resolution | Accuracy
(40Hz ~ 500Hz) |
Input Impedance | Overload Protection |
400mV | 0.1mV |
±1%±3 |
10MΩ |
1000V |
4V | 1mV | |||
40V | 10mV | |||
400V | 100mV | |||
1000V | 1V |
AC Current (Trms)
Range | Resolution | Accuracy
(40Hz~500Hz) |
Burden Voltage | Overload Protection |
400µA | 0.1µA |
±1.5%±3 |
0.5 Vmax |
0.5A/250V FAST Fuse & Diodes |
4mA | 1µA | |||
40mA | 10µA | |||
400mA | 100µA | |||
10A | 10mA | 0.7Vmax | 10A/250V Fast Fuse |
DC Current
Range | Resolution | Accuracy
(40Hz~500Hz) |
Burden Voltage | Overload Protection |
400µA | 0.1µA |
±1%±1 |
0.5 Vmax |
0.5A/250V FAST Fuse & Diodes |
4mA | 1µA | |||
40mA | 10µA | |||
400mA | 100µA | |||
10A | 10mA | 0.7Vmax | 10A/250V Fast Fuse |
Resistance (Ω)
Range | Resolution | Accuracy | Overload Protection |
400Ω | 0.1Ω |
±0.1%±2 |
1000V |
4KΩ | 1Ω | ||
40KΩ | 10Ω | ||
400KΩ | 100Ω | ||
4MΩ | 1KΩ | ||
40MΩ | 10KΩ | ±1.5%±2 |
Frequency (Hz) (Test Range 10Hz ~ 4000kHz)
Range | Resolution | Accuracy | Max. Input Sensitivity | Max. Allowable Applied Voltage | |
4kHz | 1Hz |
±0.5%±1 |
1Vrms |
1000V |
|
40kHz | 10Hz | ||||
400kHz | 100Hz | ||||
400kHz | 100Hz | ||||
2Vrms |
Capacitance (F)
Range | Resolution | Accuracy |
4nF | 1pF |
±5%±10 |
40nF | 10µF | |
400nF | 100pF | |
4µF | 1nF | |
40µF | 10nF |
Inductance (H)
Range | Resolution | Accuracy |
4mH | 1µH |
±5%±10 |
40mH | 10µH | |
400mH | 100µH | |
4H | 1mH | |
40H | 10mH |
