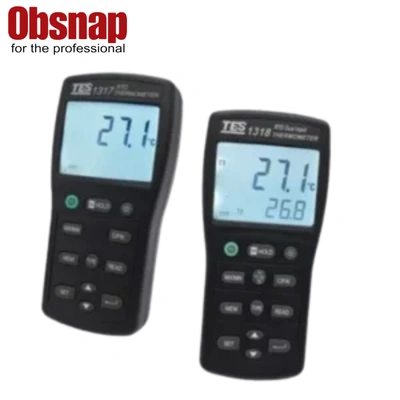

TES- 1317/1318 Platinum RTD Thermometer

The TES-1317/1318 are precise Platinum RTD thermometers using Pt385, Pt3916, or Pt3926 sensors. They provide accurate temperature measurement, dual-input capability (TES-1318), data hold functions, and user-selectable units, making them suitable for laboratory and industrial applications.

  • Measuring Range: Pt385: -190°C to 790°C (-310°F to 1454°F); Pt3916/Pt3926: -190°C to 615°C (-310°F to 1139°F).
  • High Accuracy: ±(0.05% of reading + 0.5°C / 0.9°F) with minimal temperature coefficient drift.
  • Data & Functions: MAX/MIN, MAX-MIN AVG, HOLD, HI/LO warning beeper, and dual-input T1/T2 display (TES-1318).
  • User-Friendly Features: 0.1° resolution, °C/°F/K selectable, backlit LCD, compact design, and battery-powered.

Description

The TES-1317/1318 Platinum RTD Thermometer is a precision instrument designed for accurate temperature measurement using platinum RTD sensors (Pt385, Pt3916, Pt3926). It offers a wide measurement range from -190°C to +790°C (-310°F to +1454°F, depending on sensor type) with high resolution of 0.1°C/°F/K and accuracy of ±(0.05% reading + 0.5°C/0.9°F). These features make it ideal for industrial and laboratory applications requiring reliable, high-precision temperature monitoring.

The thermometer supports dual-input measurement (T1/T2 on TES-1318), MAX/MIN/AVG readings, HI/LO warning beepers, and selectable units in ℃/℉/K. Its LCD backlight ensures clear visibility, while its portable design with 6 AAA batteries provides approximately 55 hours of operation. Additional functions such as time-based measurement and memory storage enhance its usability for continuous and detailed temperature tracking.



Features

  • RTD standard PT 3916/3926/385. With HI/LO setting, this is a warning beeper. Setting the time.
  • MAX/MIN with TIME and MAX-MIN AVG Hold
  • ℃ / ℉ / K User-Selective. LCD backlight display
  • T1/T2 temperature display with dual input function. (1318)

Specifications



Measuring Range

Pt385     -190°C ~ 790°C (-310 ~ 1454°F) Pt3916 -190°C ~ 615°C (-310 ~ 1139°F)

Pt3926 -190°C ~ 615°C (-310 ~ 1139°F)

Resolution 0.1°C / 0.1°F / 0.1K


Accuracy

±(0.05%rdg+0.5°C)

±(0.05%rdg+0.9°F)

Temperature Coefficient Less that 0.1 times the applicable accuracy

specification per °C (°F)

Sampling Rate One time per 1.5 seconds
Operating/Storage Conditions 0°C ~ 50°C < 80% RH , -10°C ~ 60°C < 70%RH
Power Source 6 pcs size AAA Battery
Battery Life Approx. 55 hours. (not including backlight and beeper)
Size 150(L)×72(W)×35(H)mm
Weight Approx. 235g
Accessories Instruction manual, Battery
