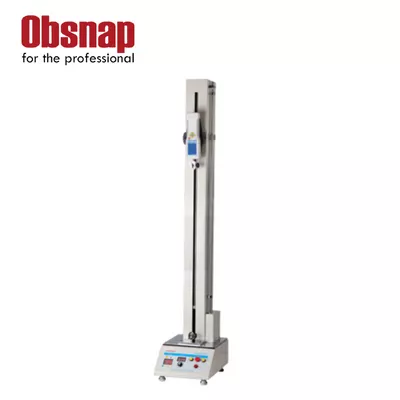

The SJX-1KVL Electric Vertical Test Stand delivers stable and precise tensile and compressive testing with stepless speed control, digital display, and manual/automatic operation for fatigue, insertion, and fracture testing.
The SJX-1KVL Electric Vertical Test Stand is designed for tension, compression, insertion/withdrawal, fatigue, and fracture testing. It is engineered to work with SN and SH/SP push-pull force gauges (2 N–1 kN), providing stable, versatile, and easy-to-use operation. The stand features stepless speed adjustment with digital speed display and supports manual or automatic operation, ensuring precise, repeatable results across a variety of testing applications.
Dimensions: 380 × 285 × 1490 mm; Weight: ~57.0 kg
Maximum load: 1000 N; Stroke: 1000 mm
Speed range: 50–500 mm/min
Stepless speed adjustment for uniform motion
Manual and automatic operation modes
Designed for tension, compression, insertion/withdrawal, fatigue, and fracture testing
Compatible with SN, SH/SP push-pull force gauges (2 N–1 kN) and various clamps (sold separately)
Stable, versatile, and easy to operate
