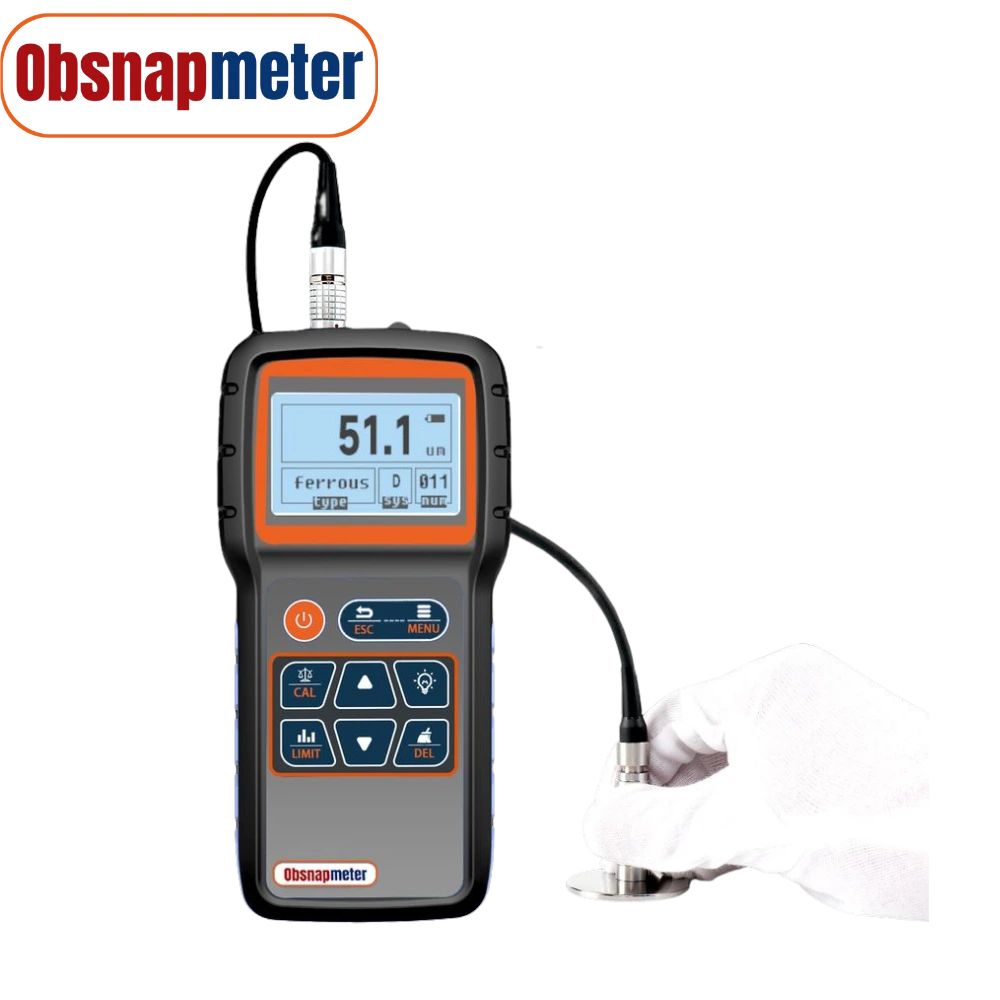

-Two thickness measuring methods adopted, the gauge can be applied to thickness measuring of non-magnetic coating on magnetic metal substrate as well as non-conductive coating on non-magnetic metal substrate;
-Multi type probe can be used (F1,F1/90,F10,N1,N1/90°,N10)
-2 measuring modes are available: continuing measuring mode（CONTINUE）and single measuring mode(SINGLE)
-2 operation modes are available: direct mode (DIRECT) and batch mode (A-B)
-5 statistic values:mean value(MEAN), max. Value(MAX), min. Value(MIN), numbers of measuring(NO.), standard deviation(S.DEV)
-2 methods can be used to calibrate the gauge, and the system error of the probe can be corrected by use of basic calibrating method
-Storage function: 500 measuring values can be stored
| Specification | Details |
|---|---|
| Measuring Range | 0–1250 µm, depends on probes; max 10 mm for the probe F10 |
| Working Principle | Magnetic & Eddy |
| Substrate | Fe / NFe base |
| Resolution | 0.1 µm |
| Display | 128×64 LCD with backlight |
| Accuracy | ±(2%H + 1 µm) Note: H is thickness reading |
| Memory | 5 files × 100 values |
| Unit Switch | Metric (µm) / Imperial (mil) |
| Working Temperature | Operation: –10 °C to 50 °C Storage: –30 °C to 70 °C |
| Power | AA battery × 2 pcs |
| Weight | 340 g |
| Size | 147 × 74 × 31 mm |
