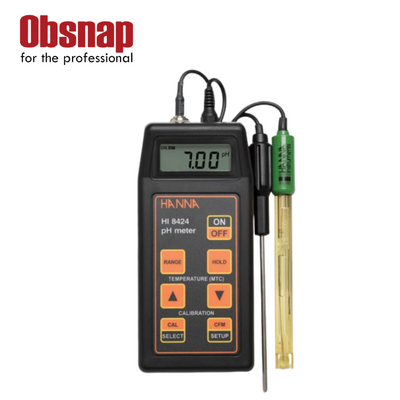

Hanna Instruments – HI8424 Portable pH/mV Meter

The HI8424 Portable pH/mV Meter is a heavy-duty, waterproof instrument designed for high-accuracy pH, mV, and temperature measurements in laboratory and field applications. It offers 0.01 pH resolution with ± 0.01 pH accuracy, along with a high-resolution mV range that automatically switches between 0.1 mV and 1 mV resolution for precise ORP measurements. The meter features automatic one- or two-point calibration using standard buffers (4.01, 7.01, 10.01) and automatic temperature compensation from -20 to 120°C. Supplied as a complete kit with a PEI plastic body pH electrode, stainless steel temperature probe, calibration buffers, cleaning solution, and protective carrying case, the HI8424 is built for reliable performance.

  • ± 0.01 pH Accuracy with 0.01 pH Resolution
  • High-Resolution mV Range (0.1 mV / 1 mV Auto-Switching)
  • Automatic Temperature Compensation (-20 to 120°C)
  • Heavy-Duty Waterproof Design with Complete Accessory Kit

Description

The HI8424 is engineered with a heavy, robust, waterproof casing that protects internal electronics from water damage, making it ideal for demanding environments. It provides automatic one- or two-point calibration to standard buffer values (pH 4.01, 7.01, and 10.01) for quick and accurate setup. With a 0.01 pH resolution and ±0.01 pH accuracy, the meter ensures precise pH measurements, supported by a high input impedance of 10¹² Ohms for stable readings. The built-in automatic shut-off feature (after 20 minutes) helps preserve battery life, while a low battery indicator appears at 5% remaining power to prevent unreliable measurements.

For mV and ORP measurements, the HI8424 offers a dual-range system (± 699.9 mV and ± 1999 mV) with automatic resolution switching. Within the ± 699.9 mV range, the resolution automatically adjusts to 0.1 mV with ± 0.2 mV accuracy, delivering high-precision ORP results. Temperature measurements range from -20 to 120°C, with automatic or manual temperature compensation available. The meter is supplied with the HI1230B PEI body pH electrode, known for its durability, and the HI7662 stainless steel temperature probe, ensuring accurate thermal readings. A protective carrying case, calibration buffer sachets, and cleaning solutions are included, making the HI8424 ready for immediate use.

Features

  • Heavy robust, waterproof casing guards against water that could harm the electronics.
  • Automatic adjustment to one or two points to the values of the standard buffer (pH 4.01, 7.01, and 10.01)
  • automatic shutoff to preserve battery life after 20 minutes.
  • When the battery life is at 5%, a low battery indicator is shown.
  • High resolution/accuracy mV range; resolution switches from 1 mV to 0.1 mV automatically when ORP measurements are between -699.9 and +699.9 mV. Within this range, the accuracy is 0.2 mV.
  • includes a protective carrying bag, a pH electrode with a PEI plastic body, a temperature probe made of stainless steel, calibration buffer sachets, and cleaning solution sachets.

Specifications


SKU HI8424
Product Name Portable pH/mV Meter – HI8424
Quote Required Yes
pH Range -2.00 to 16.00 pH
pH Resolution 0.01 pH
pH Accuracy ±0.01 pH
pH Calibration automatic, at one or two points with three standard buffers (4.01, 7.01,10.01)
pH Input impedence 10¹² Ohms
mV Range ±699.9 mV; ±1999 mV
mV Resolution 0.1 mV; 1 mV
mV Accuracy ±0.2 mV; ±1 mV
Temperature Range -20.0 to 120.0°C / -4.0 to 248.0°F
Temperature Resolution 0.1°C / 0.1°F
Temperature Accuracy ±0.4°C; ±0.8°F
Temperature Compensation automatic from -20.0 to 120.0ºC (-4.0 to 248.0ºF) or manual without temperature probe connected
pH Electrode HI1230B PEI body pH probe with BNC connector and 1 m (3.3’) cable (included)
Temperature Probe HI7662 stainless steel temperature probe with 1 m (3.3’) cable (included)
Automatic Shut-Off after 20 minutes of non-use (can be disabled)
Battery Type/Life 9V / approximately 150 hours of continuous use
Environment 0 to 50°C (32 to 122°F); RH max 100%
Dimensions 164 x 76 x 45 mm (6.5 x 3.0 x 1.8”)
Weight 180 g (6.3oz.)
Ordering Information HI8424 is supplied with HI1230B pH electrode, HI7662 temperature probe, HI70004 pH 4.01 buffer solution sachet, HI70007 pH 7.01 buffer solution sachet, HI700601 electrode cleaning solution sachets (2), battery, protective case and instructions.
