Description

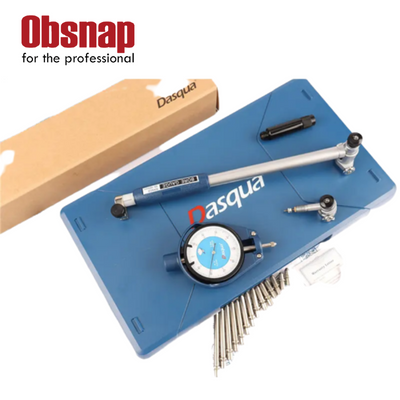

The Dial Bore Gauge / Inside Micrometer (Item No. 5510-0005) is ideal for internal measurements of cylindrical parts such as pipelines, engine cylinders, and precision machined holes. Its measuring range of 35–160 mm and 0.01 mm (0.0005″) graduation allow it to cover multiple sizes, offering flexibility and high precision in one tool. The direct reading dial indicator eliminates the need for secondary measurement, improving accuracy and efficiency.
Constructed to DIN 878 standards, this gauge features a double fulcrum-point design that ensures repeatable and stable readings. Optional carbide-tipped or ceramic contact points provide enhanced wear resistance for long-term durability. The set includes a protective case and warranty letter, making it a robust, precise, and cost-effective solution for workshops and industrial quality control.
Specifications
| Code |
Range |
Graduation |
| 5510-0005 |
35~160 mm |
0.01mm |
| 5510-0000 |
1.4~6” |
0.0005” |
Product Name: Dial Bore Gauge Set
Item Number: 5510-0005
Measuring Range: 35~160 mm / 1.38~6.3’’
Graduation: ±0.01 mm / 0.0005’’
Application
The most popular measurement equipment for inside measurements of cylindrical items like pipelines and cylinders is a set of bore gauges. The bore gauge, in contrast to transfer gauges (telescope gauge, small-hole gauge, and beam gauge), performs the measurement with a direct read rather than a second time measurement, ensuring precision. The bore gauge has a long extension handle that allows it to reach sufficiently deep without compromising accuracy, outperforming the short reach issue with inside micrometres. The three-point inside micrometre may undoubtedly satisfy all of your needs and be simple to use, but it is much more expensive than bore gauges.
