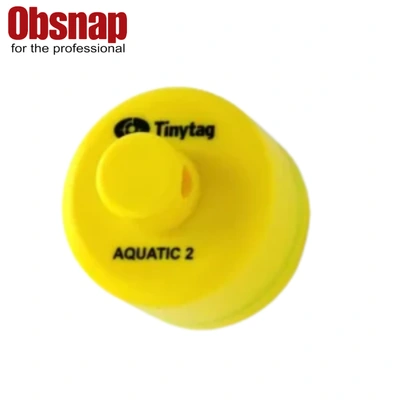

Tinytag TG-4100 Aquatic 2

The TG-4100 Aquatic 2 is a submersible temperature data logger designed for aquatic environments. It offers precise temperature monitoring, long battery life, and robust waterproofing, making it ideal for water-based applications.

  • Measurement Range & Resolution: -40°C to +70°C (-40°F to +158°F), with 0.01°C resolution.
  • Durable & Waterproof: IP68 rated, fully submersible, compact 51mm diameter case, extremely robust design.
  • Data Logging & Alarms: 32,000 readings capacity, 2 user-programmable alarms, customizable logging intervals, start delay and trigger functions.
  • Battery & Maintenance: Easily replaceable battery with life monitoring for long-

Description

The Tinytag TG-4100 Aquatic 2 is a robust and highly durable submersible temperature logger designed for aquatic environments. Equipped with an internally mounted 10K NTC thermistor, it can accurately record temperatures ranging from -40°C to +70°C (-40°F to +158°F) with a resolution of 0.01°C or better. Its response time is under 20 minutes to 90% full-scale deflection in moving water, making it suitable for monitoring fluctuating aquatic conditions. With a waterproof IP68-rated casing, the TG-4100 ensures reliable performance even in fully submerged applications, while its compact size (51 mm diameter × 50 mm height) and light weight (90 g) make deployment and retrieval convenient.

This logger also offers versatile data management features, including a 32,000-reading memory capacity, two user-programmable alarms, and adjustable logging intervals via inductive pads. Users can set start delays and triggers for customized measurement schedules, and the device includes a battery life monitor and easily replaceable battery for long-term monitoring. These capabilities make the Tinytag TG-4100 Aquatic 2 an ideal choice for environmental monitoring, research studies, and industrial applications where precise and reliable temperature logging in water is critical.

Features

  • Temperature logger submersible
  • Waterproof and extremely durable
  • 32,000 page capacity
  • 2 alarms with user-programmability
  • User-programmable logging intervals for inductive pads
  • Start delay and trigger
  • Easily replaceable battery
  • Battery life monitor

Specifications

Reading Specification

Parameter Specification
Reading Range -40°C to +70°C (-40°F to +158°F)
Sensor Type 10K NTC Thermistor (internally mounted)
Response Time <20 minutes to 90% FSD in moving water
Reading Resolution 0.01 °C or better
Reading Accuracy Not specified

Physical Specification

Property Specification
IP Rating IP68 water proof (see notes)
Operational Range -40°C to +70°C (-40°F to +158°F)*
Case Diameter 51 mm / 2.01″
Case Height 50 mm / 1.97″
Weight 90 g / 3.17 oz

*The Operational Range indicates the physical limits to which the unit can be exposed, not the reading range over which it will record.
