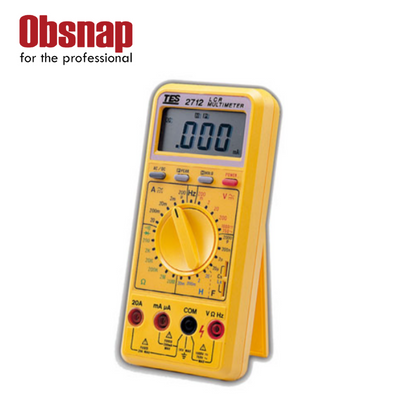

TES Digital Multimeter TES-2712

TES-2712

DIGITAL MULTIMETER

Product Features

Manual range with unit display
Inductance measurement
Capacitance measurement
Frequency measurement Peak detectmeasurement

Categories: Electrical Inspection, Multimeter

Description

Electrical Specifications :

Accuracies aqre + (…% of reading + …digits) at 23”C+ 5°C and below 80% RH. DC Voltage :

DC Voltage :

Range	Resolution	Accuracy	Input Impedance	Overload Protection
200mV	0.1mV	0.5%+1	10M0	600Vrms
2V	1mV			750Vpp
20V	10mV
200V 600V	100mV
200V 600V	1V	0.5%+2

AC Voltage : 50Hz – 500Hz

Range	Resolution	Accuracy	Input Impedance	Overload Protection
200mV	0.1mV	1%+5	10M!	600Vrms
2V	1mV			750Vpp
20V	10mV
200V 600V	100mV
200V 600V	1V	1.2%+5

DC Current :

Range	Resolution	Accuracy	Burden Voltage	Overload Protection
200uA	0.1uA	1%+1	0.35V	0.5A/250V fast blow fuse & Diode
2mA	1uA
20mA 200mA	10uA
20mA 200mA	100uA
20A	10mA	1.2%+3	0.8V	20A/380V fast blow fuse 10A Continuity 20A for 30 sec. max.

AC Current : 50Hz 500Hz

Range Resolution		Accuracy	Burden Voltage	Overload Protection
200uA	0.1uA	1.2%+3	0.35V	0.5A/250V fast blow fuse & Diode
2mA	1uA
20mA 200mA	10uA
20mA 200mA	100uA
20A	10mA	1.5%+3	0.8V	20A/380V fast blow fuse 10A Continuity 20A for 30 sec. max.

Resistance

Range	Resolution	Accuracy	Open Circuit Voltage	Overhead protection
200V	0.1CI		3.2V
2KCt	1CI
20KCt	100	0.8%+ 2	0.5V	600Vrms
200KCI	100CI	0.8%+ 2	0.5V	600Vrms
2M0	1KCI
20MCt	10K0	1.5%+ 3

Diode Test

Range	Resolution Accuracy	Open Circuit Voltage	Text Current	Overload Protection
	1mV 2%+ 2	3.2V	1.0mA	660Vrms

Audible Continuity

Range

Resolution

Continuity beeper

Max Open Circuit

Voltage

Overload

Protection

0.1C

5200

3.2V

660Vrrns

Frequency ( Hz )( Test Range 10Hz – 10MHz Auto Range )

Range	Resolution	Accuracy	Max. Open Circuit Voltage	Overload Protection
2KHz	1Hz	0.5%+2	1.5Vrms	600Vrms
20KHz	10Hz
200KHz 2000Hz 10MHz	100Hz
	1KHz
	10KHz		3Vrms

Inductance (The accuracy is based on when “Q” value is greater than 1)

Range	Resolution	Accuracy	Test Frequency
20mH	10uH	5% + 10	200Hz
200mH	100uH
2H 20H	1mH
2H 20H	10mH

Capacitance (F)

Range	Resolution	Accuracy	Test Frequency
2000pF	1pF	3% + 10	200Hz
200nF	100pF
2uF 20uF	1nF
2uF 20uF	10nF

B: Peak Hold Measurement (Capture and retain elusive voltage or variant surge long enough for reading)

DC Voltage :

Range	Resolution	Accuracy	Input Impedance	Overload Protection
200mV	0.1mV	1%+2	10MCI	600Vrms
2V	1mV			750Vpp
20V	10mV
200V 600V	100mV
200V 600V	1V

AC Voltage : 50Hz – 500Hz

Range Resolution		Accuracy	Input Impedance	Overload Protection
200mV	0.1mV	1.8%+7	10M0	600Vrms
2V	1mV			750Vpp
20V	10mV
200V 600V	100mV
200V 600V	1V

DC Current :

Range Resolution		Accuracy	Burden Voltage	Overload Protection
200uA	0.1uA	1.5%+2	0.35V	0.5A/250V fast blow fuse & Diode
2mA	1uA
20mA 200mA	10uA
	100uA

20A

10mA

1.8%+2

0.8V

20A/380V fast blow fuse 10A Continuity

20A for 30 sec. max.

AC Current : 50Hz – 500Hz

Range Resolution		Accuracy	Burden Voltage	Overload Protection
200uA	0.1uA	2%+5	0.35V	0.5A/250V fast blow fuse & Diode
2mA	1uA
20mA 200mA	10uA
20mA 200mA	100uA
20A	10mA	2.5%+8	0.8V	20A/380V fast blow fuse 10A Continuity 20A for 30 sec. max.

General Specifications:

Numerical Display: 3-1/2 digit liquid crystal display (LCD) maximum reading 1999 and Bargraph
Palarity: Automatic ” ” negative polarity
Overrange: ” ” appears on the
Sampling Rate: 5 readings per second.
Power: 9-Volt battery, NEDA1604, IEC6F22 or JIS006P.
Operating Storage Temperature and Humidity: 0°C to 40°C, below 80% RH/-10°C to 60°C, beIow70%
Dimensions & Weight: 180(L) x 82(W) x 38(H)mm / 365 g
Accessories: Test leads, Spare fuse (0.SA/250V), Battery, Operating
