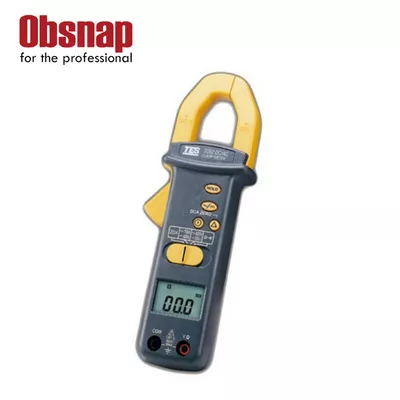

TES AC/DC mA Clamp Meter PROVA-11

PROVA-11

AC/DC mA Clamp Meter

Product Features

Accurate digital clamp meter for Current measurement:
AC current: 0 ~ 30A (True RMS)
DC current: 0 ~ 40A
Accurate digital clamp meter for Voltage measurement:
AC voltage: 0 ~ 400V (True RMS)
DC voltage: 0 ~ 400V
AC 0.1mA, DC 1mA high resolution
One touch zero for DCA adjustment
23 mm diameter jaw
Large 3 3/4 digits LCD
Fast bargraph display (30 times/sec.) for transient observation
Max/Min and Data Hold functions
Auto power off
Easy single rotary switch for any function selection

Category: Clamp Meter

Electrical Specifications: (23℃±5℃)

DC Current:

AC Current: (True RMS, Crest Factor < 3)

DC Voltage:

(Input Impedance: 10M)

Range	Resolution	Accuracy	Overload Protection
400V	0.1V	±1.0%±2dgts	DC 1000V

AC Voltage:

(Input Impedance: 10M, True RMS, Crest Factor < 3)

General Specifications:

Conductor Size:	23mm max. (approx.)
Dimension (Box):	183 (L) x 61.3 (W) x 35.6 (H) mm 7.2″(L) x 2.5″ (W) x 1.4″ (H)
Battery Type:	two 1.5V SUM-3
Display:	3 3/4 LCD with 40 seg. bargraph
Range Selection:	Manual
Overload Indication:	OL
Power Consumption:	15 mA (approx.)
Low Battery Indication:
Sampling Time:	3 times/sec. (display)30 times/sec. (bargraph)
Operating Temperature:	-10°C to 50°C
Operating Humidity:	less than 85% relative
Altitude:	up to 2000M
Storage Temperature:	-20°C to 60°C
Storage Humidity:	less than 75% relative
Weight:	190g (battery included)
Accessories:	Carrying bag x 1 Users manual x 1 Batteries 1.5V x 2 Test leads x 1
