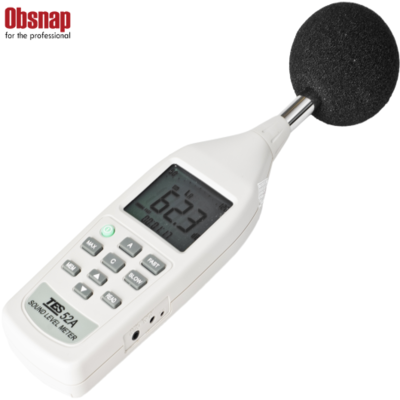

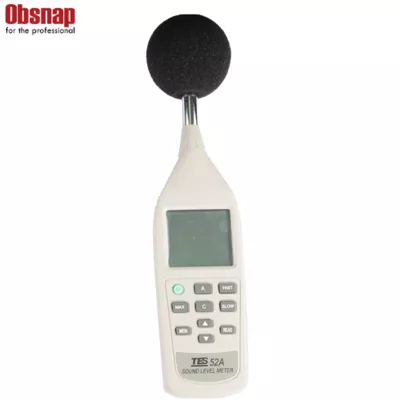

TES-52A Sound Level Meter

TES-52A Sound Level Meter

Product Features:

Resolution of 0.1dB
Dynamic range of 60dB
Ranges of measurement from 30 to 130dB
Frequency weighting for A&C
Weighting of Fast/Slow Time
Maximum/Minimum/Peak volume with time
Manual data storage and retrieval

Categories: Coating / Paint Testing, Sound Level Meters

Applicable standards	IEC61672-1: 2013 Class 2, ANSI S1.4: 1983 Type 2
Digital display	4 digit LCD , 0.1dB resolution, updated every 1s
Measurement level	30dB to 130dB
Measurement frequency range	31.5 Hz to 8KHz
Frequency weighting	A and C
Time weighting	Fast and Slow
Accuracy	±1.0dB (ref 94dB @1KHz)
Microphone	1/2 inch Electret condenser microphone
Measurement level range	6 ranges in 10-dB step : 20 ~ 80dB ,30 ~ 90dB , 40 ~ 100dB , 50 ~ 110dB , 60 ~ 120dB , 70 ~130dB
Quasi-analog bar indicator	1-dB steps, 60dB display range , updated every 0.125s
Display warning function Overrange indicator Underrange indicator	Displayed at the upper limit Displayed at the lower limit
Manual data memory capacity	99 sets
Analong AC / DC output	1Vrms ( at full scale ) , 10mVDC / dB
Power supply	One 9V battery (006P or IEC6F22)
Battery Life	about 10 hours
Operating temperature & humidity	-10°C to 50°C (14°F to 122°F) R.H. < 90% non-condensing
Storage temperature & humidity	-10°C to 60°C (14°F to 140°F ) R.H. < 70% non-condensing
Dimensions	264 (L) × 68(W) × 27(H)mm
Weight	Approx. 260g
Accessories	Battery 9V, Wind shield, Screwdriver (adjustment), 3.5f plug (3pin AC/DC output), Carrying case, Instruction manual
