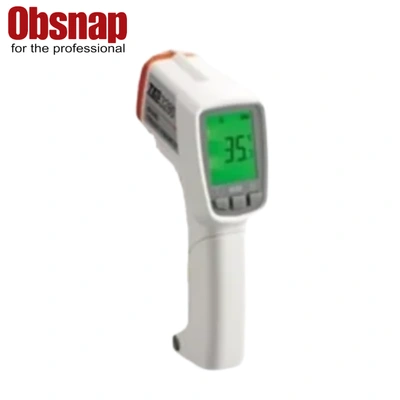

TES-3280 IR Forehead Thermometer

A lightweight, portable infrared thermometer for body, surface, and room temperature measurement, suitable for homes, schools, restaurants, and institutions. It provides quick, accurate readings with visual alerts for fever detection.

  • Measurement Range: Forehead 34–42°C, Surface 0–100°C, Room 16–40°C
  • Accuracy & Resolution: ±0.3°C (body), ±1°C (surface/low/high); 0.1°C / 0.2°F resolution
  • Fever Alert: 3-colour screen display (green, orange, red) for easy temperature assessment
  • Power & Portability: 9V battery, approx. 30 hours continuous use, auto power-off in 60 sec, compact and lightweight design

Description

The TES-3280 IR Forehead Thermometer is a versatile device designed for quick and accurate temperature measurements across multiple modes, including body (forehead), surface, and room temperatures. It features a backlit LCD display, LED point sighting, and a measuring distance of 1 to 5 cm. The thermometer covers a wide measurement range: 34°C to 42°C for body temperature, 0°C to 100°C for surfaces, and 16°C to 40°C for room temperature, with high accuracy of ±0.3°C within the body temperature range. Its spectral response of 6–14 μm ensures precise readings, and it includes an auto power-off function after 60 seconds for energy efficiency.

This lightweight and portable thermometer is ideal for use in schools, shops, restaurants, institutions, and homes. It offers continuous operation for approximately 30 hours on a 9V battery, even with LED sighting and backlight off. The device also features a fever warning system with a three-color display (green, orange, red), making it easy to identify abnormal temperatures at a glance. Its compact design, large easy-to-read display, and multi-mode functionality make it a practical choice for both indoor and outdoor applications.

Features

  • NO.007320 TFDA Registered Forehead Temperature, Room
  • Surface Temperature, Temperature Measurement
  • Shops, restaurants, institutions, schools, and homes are all eligible.
  • Lightweight and portable, with a large, easy-to-read LCD.
  • Indoor and outdoor measurements are quick and accurate.
  • Fever warning function: 3 colour screen display in green, orange, and red
  • LED light spot measurement and placement

Specifications

Display Backlight LCD display




Measurement range

Body temperature (Forehead temperature) mode: 34°C to 42°C (93.2°F to 107.6°F)

Surface temperature mode: 0°C to 100°C (32°F to 212°F)

Room temperature mode: 16°C to 40°C (60°F to 104°F)

Resolution 0.1°C/0.2°F


Accuracy

22°C to 42°C (±0.3°C) / 71.6°F to 107.6°F (±0.5°F)

<22°C to 0°C (±1°C) / <71.6°F to32°F (±1.8°F)

>42°C to 100°C (±1°C) / >107.6°F to 212°F (±1.8°F)

Spectral response 6 to 14μm
Measuring distance 1 to 5 cm
Sighting LED point indication: Auto-off

GENERAL SPECIFICATIONS

Auto power off Approx. 60 sec
Battery life Continuous use approx. 30 hours

(LED point and backlight aren’t on use)

Power source 9V Battery
Operating condition 15°C to 40°C (59°F to 104°F) below 95%RH (non-condensation)
Storage condition -20°C to 50°C (-4°F to 122°F) below 95%RH (non-condensation)
Dimensions 175mm× 118mm × 50mm
Weight Approx. 200g
Accessories Instruction manual, Battery and Storage bag
