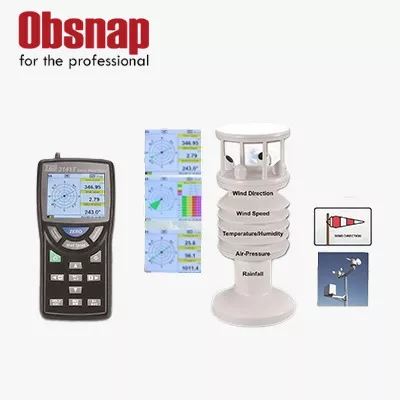

TES-3141T Weather Station

A portable weather measurement instrument that provides real-time monitoring and data logging of key environmental parameters for field and professional use.

  • Complete Weather Monitoring: Measures wind speed, wind direction, temperature, humidity, and barometric pressure in one device.
  • Portable & Standalone Operation: Data can be read directly on the meter, with rechargeable battery for field use.
  • Data Logging & Memory: Supports MicroSD auto-logging, USB interface, and 99 manual data records.
  • Rugged & Versatile: IP65 weather transmitter, fast 1-second response, suitable for HVAC, agriculture, construction, airports, and environmental monitoring.

Description

The Radiation Alert 1000EC is a versatile weather transmitter and handheld meter system designed to provide comprehensive real-time environmental measurements in a single, portable solution. It accurately measures wind speed and direction, barometric pressure, relative humidity, and air temperature, delivering fast 1-second response data with fine resolution across all parameters. With wide operating ranges and dependable accuracy, the system is well suited for both routine monitoring and demanding field applications where precise atmospheric data is essential.

Built for professional use, the weather transmitter features an IP65-rated housing for reliable outdoor operation, while the handheld meter allows data to be viewed directly without the need for a computer. Users benefit from max/min/average functions, manual data storage for up to 99 records, and automatic logging via microSD card, with USB connectivity for easy data transfer. Supplied with a complete accessory set—including rechargeable battery, mounting hardware, and software—the Radiation Alert 1000EC is an ideal solution for HVAC, airports, agriculture, construction sites, sports facilities, weather stations, and environmental monitoring applications.

Features

  • Data may be read directly from the metre without a computer.
  • Barometric pressure, temperature, humidity, wind speed, and direction.
  • Patch of wind rose.
  • Maximum/Minimum/Average function and data holding.
  • 99 sets of manual data memory and read functionality.
  • MicroSD card used as auto data memory.
  • Interface for USB.

Specifications

Weather transmitter

measurement function

Wind direction, Wind speed, Barometric pressure, Relative humidity and Air temperature




Wind direction

Range: 0 to 359.9° Accuracy: ±3.0° at 10m/s Resolution: 0.1°






Wind speed

Range: 0 to 60m/s Accuracy: ±5% at 10m/s

Resolution: 0.01m/s, 0.01km/h, 0.1m/min, 1m/hr, 0.01mph, 0.1knots, 0.1ft/min





Barometric pressure

Range: 300 to 1200hPa

Accuracy: ±2hPa at 25°C (77°F), ±4hPa at -20 to 85°C (-4 to 185°F) Resolution: 0.1hPa, 0.001psi, 0.1mmHg, 0.01inH2O









Relative humidity

Range: 0 to 100%RH Accuracy: at 25°C (77°F)

±3%RH at 20 to 80%RH

±5%RH at 0 to 20%RH & 80 to 100%RH

Resolution: 0.1%RH







Air temperature

Range: -40°C to 60°C (-40°F to 140°F)

Accuracy: ±0.5°C (at +5°C to +60°C) / ±1°F (at +41°F to +140°F)

±1.2°C (at -40°C to +5°C) / ±2.4°F (at -40°F to +41°F)

Resolution: 0.1°C (0.1°F)



Operating temperature

Weather transmitter: -40°C to 60°C (-40°F to 140°F)
Meter: 0°C to 50°C (32°F to 122°F)


Storage temperature

Weather transmitter: -40°C to 60°C (-40°F to 140°F)
Meter: -20°C to 50°C (-40°F to 122°F)
Response time 1s
Housing protection class Weather transmitter: IP65
Power requirements Meter: Rechargeable Li-ion battery, AC adapter 9V
Battery life Approx. 15 hours (backlight off), Charge time: 3 hours


Dimension / Weight

Weather transmitter:145(ɸ)x237mm / Approx. 605g
Meter: 158(L) x 78(W) x 40(H)mm / Approx. 242g


Accessories

Instruction manual, Rechargeable Li-ion battery, Carrying case, AC adapter, Mounting tube, CD Software, micro-USB cable, 5 Meter cable
Optional Bottom socket

Applications

  • HVAC
  • Airports
  • Agriculture
  • Sports facility
  • Construction
  • Weather stations
  • Environmental monitoring
