Description

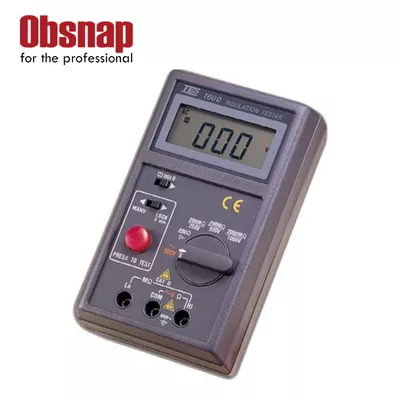

The digital insulation tester offers reliable measurement of resistance, AC voltage, and insulation resistance in a compact, battery-powered unit. The 0.65” LCD display provides clear readings up to 1999, with automatic zero adjustment for accurate measurements. Its rotary switch allows fast selection of ranges, while the continuity beeper confirms low-resistance paths quickly.
Designed for durability and safety, the tester includes overload protection, safety test leads, and a power-lock switch to maintain continuous measurement for up to 3 minutes. The device can measure OHMS (0–200 Ω), AC voltage (up to 600V), and Megohms (up to 2000 MΩ) with high accuracy. Its lightweight design (500g) and included accessories such as batteries, carrying case, and test leads make it ideal for both field and workshop use.
Specifications
GENERAL SPECIFICATIONS:
| Display |
0.65” height LCD. Maximum indication 1999. |
| Sampling rate |
2.5 time/sec |
| Zero adjustment |
Automatic adjustment |
| Operating temp. & Storage
Environment |
0°C to 40°C < 80% R.H.
-10°C to 60°C < 70% R.H. |
| Power source |
6 “AA” 1.5V batteries |
| Dimension |
165(L) X 100(W) X 57(H)mm |
| Weight |
500g |
| Accessories |
Test leads, 6pcs battery, carrying case and manual |
Accuracies are specified in the way: ±(…% of reading + …digits) at 23℃±5℃, below 80% RH.
OHMS
| Range |
Resolution |
Accuracy |
Max. open Circuit Voltage |
Overload Protection |
| 200Ω |
0.1Ω |
1%+2 |
3.3V |
500Vrms |
Continuity Beeper
| Range |
Resolution |
Operation
Resistance |
Max. open Circuit
Voltage |
Overload
Protection |
|
0.1Ω |
Resistance<100Ω |
3.3V |
500Vrms |
AC Voltage (40Hz～500Hz)
| Range |
Resolution |
Accuracy |
Input Impedance |
Overload Protection |
| 600V |
1V |
0.8%+3 |
10MΩ |
750Vrms |
Meg OHMS
| Range |
Resolution |
Accuracy |
Terminal Voltage |
| 200MΩ/250V |
0.1MΩ |
3%+5 |
250V: +10%～-0% |
| 200MΩ/500V |
0.1MΩ |
500V: +10%～-0% |
| 0～1000MΩ/1000V |
1MΩ |
1000V: +10%～-0% |
| 1000～2000MΩ/1000V |
5%+5 |
| Range |
Test Current |
Short circuit current |
| 200MΩ/250V |
1mA |
250KΩ (load) |
≦1.5mA |
| 200MΩ/500V |
500KΩ (load) |
| 0～1000MΩ/1000V |
1MΩ (load) |
| 1000～2000MΩ/1000V |
