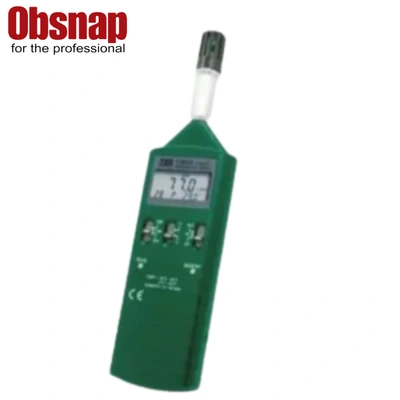

TES-1360A Humidity/Temperature Meter

The TES-1360A is a portable, high-resolution meter for measuring relative humidity and temperature. It offers fast response, data storage, and dew point calculation, making it ideal for environmental monitoring in labs, HVAC, or industrial settings.

  • Wide Measurement Range: Humidity 10–95% RH; Temperature -20℃ to +60℃ (-4℉ to +140℉).
  • High Accuracy & Resolution: ±3–5% RH depending on range; ±0.4–0.8℃; resolution 0.1% RH / 0.1°C / 0.1°F.
  • Fast & Responsive: Response time <10 seconds, sampling rate 3 times/sec, with data hold and storage for 99 sets.
  • User-Friendly Design: Dual monitor, dew point calculation, compact and lightweight (270×68×25 mm, 210 g), battery-powered with auto power-off.

Description

The TES-1360A Humidity/Temperature Meter is a compact and portable instrument for precise monitoring of temperature and relative humidity. It measures humidity from 10% to 95% RH and temperature from -20°C to +60°C (-4°F to +140°F) with high resolution of 0.1% RH and 0.1°C/°F. The meter provides fast response times (less than 10 seconds for 63% change) and high accuracy, making it ideal for environmental monitoring, HVAC testing, and laboratory applications.

Equipped with dual monitors, data hold, and automatic power-off functions, the TES-1360A allows users to store up to 99 measurement sets for later retrieval. Its lightweight design (approx. 210 g) and 9V battery operation offer portability and long usage (approx. 140 hours). The meter also includes dew point calculation capabilities, making it a versatile tool for comprehensive humidity and temperature analysis.



Features

  • Dual monitors
  • High resolution of 0.1 percent RH, 0.1° C, and 0.1° F.
  • Temperature and relative humidity vary widely.
  • temperature (in degrees Celsius and Fahrenheit).
  • Calculate the dew point temperature
  • Data storage and retrieval (99 sets) Automatic power off function
  • To keep the LCD reading, use the data hold function.
  • Compact, light weight, and easy to use.

Specifications

Display 3 1/2 digital LCD display.


MeasurementRange

Humidity: 10% ~ 95% R.H.

Temperature: -20~ +60, -4~ +140

Resolution 0.1% R.H. , 0.1, 0.1








Accuracy

Humidity: ±3%RH (at 25, 20 to 80% RH)

±4%RH (at 25, 10 to 20% RH and 80 to 90% RH).

±5%RH (at 25, 0 to 10% RH and 90 to 100% RH).

Temperature: ±0.4(at +5to +60)

±0.8(at -20to 5and +60to +80)

±0.8(at +41to +140)

±1.6(at -4to 41and +140to +176)



Response time (at 1m/s air flow)

Humidity: t63% < 10s (from 33 to 75% RH)

Temperature: t63% < 10s (from 15to 45)

Sampling rate 3 time per second.
Operating temperature and humidity 0to 60, below 95% RH
Storage temperature and humidity -10to 60, below 70% RH
Power supply Single 9V Battery 006P 9V or IEC 6F22, or NEDA 1604
Battery life Approx. 140 hours


Dimensions

270mm(L)×68mm(W)×25mm(H),

10.6”(L)×2.7”(W)×1.0”(H)

Weight Approx. 210g (including battery)
Accessories Instruction manual, Battery, Carry case.
