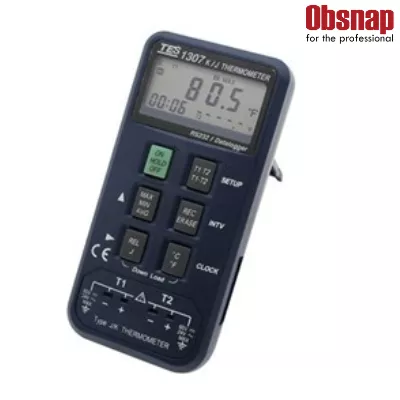

TES-1307 Datalogging K/J Thermometer

The TES-1307 Datalogging K/J Thermometer is a versatile digital thermometer designed for precise temperature measurement using Type K and Type J thermocouples. It supports a very wide temperature range, features built-in data logging, and is ideal for laboratory, industrial, and field applications where accuracy and record keeping are essential.

  • Wide Temperature Range: Measures from -190°C up to 1333°C (Type K) and -190°C up to 760°C (Type J).
  • Built-in Data Logging: Stores up to 8,000 temperature records for analysis and reporting.
  • High Accuracy & Dual Display: Clear LCD with dual display showing real-time readings, plus Max/Min/Average values.
  • PC Connectivity: Equipped with RS-232 interface for data transfer, including software and cable for easy data management.

Description

The TES-1307 Datalogging K/J Thermometer is a versatile and high-accuracy temperature measurement instrument designed for professional and industrial applications. Supporting both Type K and Type J thermocouples with automatic ranging, it covers an extremely wide temperature span from cryogenic levels up to 1333 °C (2431 °F), depending on the probe type. With fine resolution down to 0.1 °C/°F in lower ranges and strong accuracy performance, the TES-1307 is well suited for laboratory work, process monitoring, HVAC inspection, and research environments where precise thermal data is critical.

Built for efficiency and data reliability, the TES-1307 features a dual-display LCD, max/min/average reading functions, and an internal memory capable of logging up to 8000 records. Data can be transferred easily via the RS-232 interface for analysis and reporting. Powered by a standard 9 V battery with up to 35 hours of operation, the unit is compact, lightweight, and durable for field use. Compatibility with a range of optional Type-K probes—including bead, immersion, and surface probes—makes the TES-1307 a flexible solution for measuring air, liquids, gels, and surface temperatures across diverse applications.

Features

  • Input thermocouple of type K/J Automatic ranging
  • LCD with dual displays
  • Capacity for logging 8000 records
  • Readings at the maximum, minimum, and average Reading relative to
  • Interface RS-232

Specifications



Function



Resolution

Range

Accuracy

Type K Type J


°C



0.1°C

-190°C~-0°C -190°C~-0°C ±( 0.5%rdg + 0.7°C)
0°C~1000°C 0℃~760°C ±( 0.1%rdg + 0.5°C)
1.0°C 1000°C~1333°C ±( 0.2%rdg + 1°C)


°F



0.1°F

-310°F~-0°F -310°F~-0°F ±( 0.5%rdg + 1.4°F)
0°F~999.0°F 0°F~999.0°F ±( 0.1%rdg + 1.0°F)
1.0°F 1000°F~2431°F 1000°F~1400°F ±( 0.2%rdg + 2°F)
Input Protection 60VDC/24Vrms
Power Source One 9V battery or 006P, NEDA1604 or IEC6F22
Battery Life Approx. 35 hours (Alkaline Battery)
Operating Condition 0°C to 40°C (32°F to 104°F) below 80%RH
Storage Condition -10°C to 60°C (14°F to 140°F) below 70%RH
Dimensions 145(L)×68(W)×35(H)mm
Weight Approx. 235g
Accessories Instruction manual, Battery, Carry case, Software, RS-232 cable



※ OPTIONAL TEMPERATURE PROBES K(CA) TYPE THERMOCOUPLE
Model Testing Range Description
TP-K01 Bead -50°C~200°C/-58°F~392°F For general condition, especially for complex and place

hard to reach.

TP-K02

Immersion

-50°C~600°C/-58°F~1112°F For temperature measurement of liuqid or gels.
TP-K03 Surface -50°C~400°C/-58°F~752°F For surface measurement.
