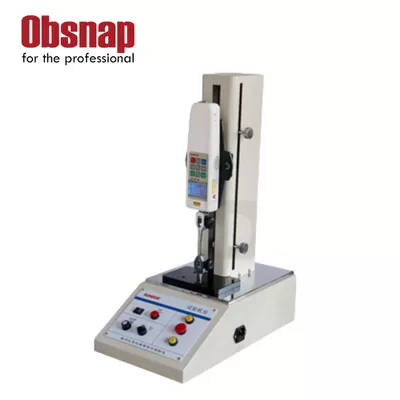

Sundoo SJY-500 Electric Vertical Test Stand

The SJY-500 Electric Vertical Test Stand is a tension/compression test stand that includes a push pull force gauge. The test stand has good stability, a wide range of applications, and is easy to use, with the function of stepless speed adjusting uniform motion and switching between manual and automatic operation.

Product Characteristic:

  • L*W*H(mm) 430*240*570;
  • Stroke: 250mm;
  • Weight: approximately 24.2kg
  • Test speed: 50-250mm/min,
  • maximum load: 200N; 250-500mm/min, maximum load: 500N
  • Used in conjunction with (purchase separately): SNSH/SP(Sensor Inside) push pull force gauge, various clamps.
