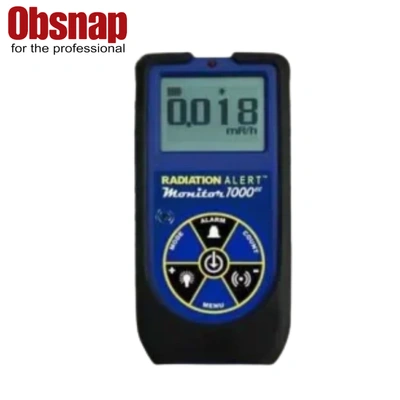

Radiation Alert 1000EC
• Detecting and measuring surface contamination
• Monitoring possible radiation exposure while working with radionuclides
• Screening for environmental contamination
• Detecting noble gases and other low energy radionuclides
Energy Compensated Halogen-quenched GM tube.
mR/hr – .001 (1µR) to 1000 mR/hr
µSv/hr – .01 to 10000
CPM – 0 to 450,000
CPS – 0 to 7500
Total Counts – 1 to 9,999,000 counts
450 CPM/mR/hr referenced to Cs137. Detects gamma and x-rays down to 40 keV. Response is flat from 40 keV up.
(Referenced to Cs137)
Typically ±15% from factory, ±10% with NIST Source Calibration NIST Calibration Additional
Readout will OVERRANGE in radiation fields as high as 100 times the maximum reading.
Selectable Alert Set Range
mR/hr .001 – 1000 and CPM 1 – 450,000. Pulsating beeper sounds the alert. Adjustable alert levels are used for mR/hr / CPM, and µSv/hr / CPS. 70db @ 1m. Alarm will sound when in Timer Mode when set alarm threshold is reached.
Graphic LCD with Backlight.
USB for use with Free Observer USB Software for PCs
Bluetooth for use with the Free Observer BLE App for Android
Red LED flashes with each count.
Sounds with each count (can be switched off for silent operation)
USB Power or Two (2) AA alkaline batteries (included). Approx. 800 hrs @ background.
-10° to +50°C (14° to 122°F)
10% to 70% Non-Condensing.
140 X 68 X 33 mm (5.5 X 2.7 X 1.3 in.)
204 g (0.45 lbs.)
Carrying Case, Xtreme Boot, Lanyard, Stand, Batteries, Mini-USB Cable, Observer USB Software Download, Observer BLE App, Certificate of Conformance
Water Resistant Case, NIST Calibration
1 year limited warranty
TES-5321A / TES-5322A PM2.5 Air Quality Monitor (read directly)

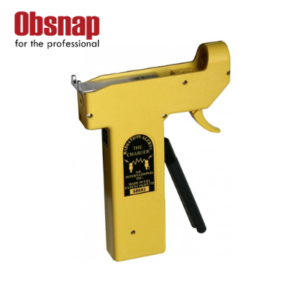

Dosimetry – Pen Dosimeter Charger / Charge Without Batteries
