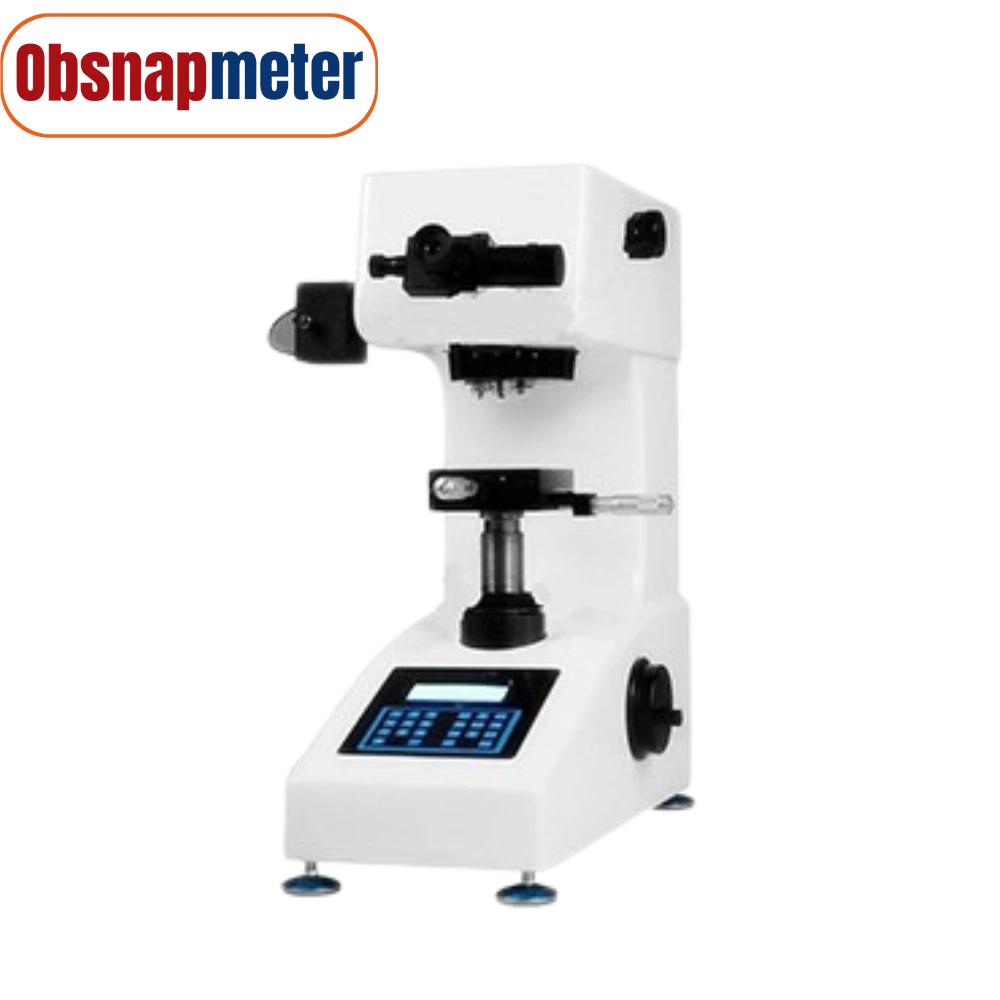

Obsnapmeter – 1000BZ Digital Micro Vickers Hardness Tester

The Micro Vickers Hardness Tester is a high-precision instrument designed for accurate hardness measurement of metals and selected non-metal materials. Featuring a fully automatic loading system, advanced optical microscope, and multiple hardness scales, it provides reliable and repeatable results for laboratory, research, and industrial quality control applications.

  • Wide test force range from 10 gf to 1 kgf with automatic loading
  • Supports multiple hardness scales (HV, HK, HBW, Rockwell & more)
  • High-precision measurement with 100×/400× microscope system
  • Built-in display, printer, and data output for efficient analysis

Description

The Micro Vickers Hardness Tester is a precision testing instrument used to measure the hardness of metals and certain non-metal materials with high accuracy. It features a fully automatic loading system, advanced optical microscope, and multi-scale hardness testing capability, making it suitable for laboratories, research centers, and industrial quality control.

Designed for versatility, it can evaluate heat-treated parts, thin materials, coatings, weld zones, and micro-components. With built-in display, data output, and printing functions, it provides efficient analysis and reliable results for detailed hardness inspection and material performance assessment.

Specifications

Feature Specification
Test Forces 10 gf to 1 kgf (10 gf, 25 gf, 50 gf, 100 gf, 200 gf, 300 gf, 500 gf, 1 kgf)
Minimum Measuring Unit 0.025 mm (electronic automatic measuring eyepiece)
Hardness Scales HRA, HRB, HRC, HRD, HRF, HV, HK, HBW, HR15N, HR30N, HR45N, HR15T, HR30T, HR45T
Hardness Test Range 5–3000 HV
Loading Method Fully automatic (load, dwell, unload)
Microscope Magnification 100× (observation), 400× (measurement)
Dwell Time Adjustable from 1 to 60 seconds
X–Y Stage 100 × 100 mm with max travel 25 × 25 mm
Data Output LCD display, built-in printer, RS-232 interface
Specimen Capacity Max height: 90 mm; Throat depth: 95 mm
Power Supply AC 220 V ±5%, 50–60 Hz
Dimensions (L × W × H) 405 × 290 × 480 mm
Net Weight 40 kg

Features

  • Micro Vickers hardness measurement for metals and some non-metals
  • Suitable for machining parts, forgings, cast iron, steel castings, and non-ferrous metals
  • Capable of testing heat-treated parts, micro and thin parts, glass, ceramics, agate, and gemstones
  • Measures effective depth of hardened layers
  • Analyzes surface coatings and heat-affected zones of welds
  • Observes internal metallographic structure of metal parts
  • Image collection, display, and printing capability
  • Ideal for measuring hardness gradient distribution curves
  • Measures surface hardness and hardening depth of gears after heat treatment
