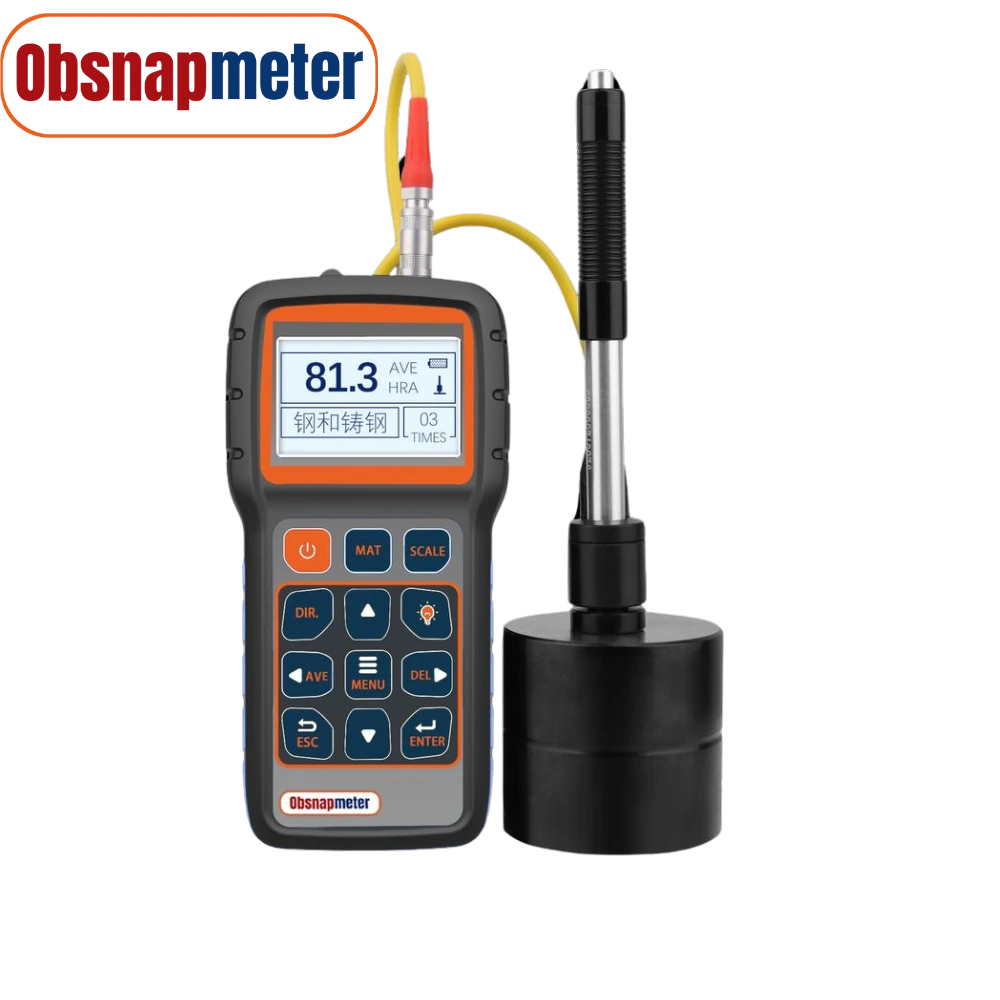

Obsnapmeter H520

Obsnapmeter H520

-DCompact plastic case,suitable for use under poor working conditions. Test at any angle, even upside down.

-Wide measuring range. It can measure the hardness of all metallic materials. Direct display of hardness scales HRB, HRC, HV, HB, HS, HL

-Large screen(segment LCD), showing all functions and parameters. With EL background light.

-Large capacity memory could store 100 groups information.

-Datapro Software to connect with PC via RS232 port.Micro printer support

-Software calibration function.

Share Now:

Facebook Twitter Youtube
Get a Quote

Description

Specification Details
Measuring Range (170–960) HLD, (17.9–69.5) HRC, (19–651) HB, (80–1042) HV, (30.6–102.6) HS, (59.1–88) HRA, (13.5–101.7) HRB. Also can be customized.
Measuring Direction 360°
Accuracy ±6 HLD
Hardness Scale HL, HB, HRB, HRC, HRA, HV, HS
Display Segment LCD
Data Memory 100 groups (relative to impact times 32–1)
Working Voltage 3V (2 × AA size alkaline battery)
Continuous Working Period About 100 hours (with backlight off)
Communication Interface RS232
Weight 4.5 kg
Dimensions 33 × 27 × 18 cm
