Mahr Metrology MarForm MMQ 400
Mahr Metrology MarForm MMQ 400 - Image 2

Mahr Metrology MarForm MMQ 400

The MarForm MMQ 400 is a fully automated, high-precision form and position measuring system designed for industrial and medical applications. It measures roundness, straightness, axial runout, and contours with maximum accuracy and efficiency.

  • Motorized measuring path Z: 900 mm
  • Motorized measuring path X: 280 mm
  • Roundness deviation: 0.01 + 0.00025 µm/mm (max)
  • Axial runout deviation: 0.02 + 0.0001 µm/mm

Share Now:

Facebook Twitter Youtube
Get a Quote

Description

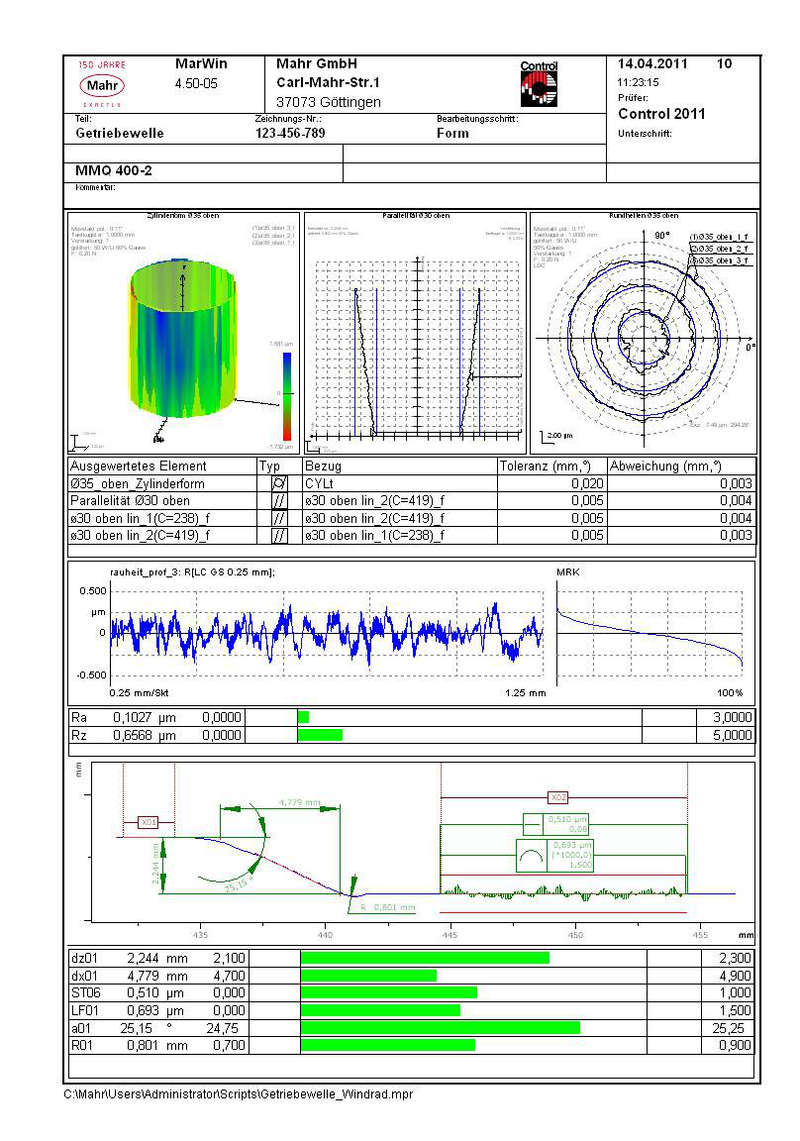

The MarForm MMQ 400 is a flexible and fully automated solution for precision measurement of form, position, and surface characteristics. Designed with high-precision motorized axes in the Z and X directions, it ensures repeatable and accurate results even for complex or heavy workpieces. The integration of the MarWin platform software enables measurement of roughness, waviness, and contour in addition to traditional form assessments.

This system offers high versatility and cost-effectiveness, paying for itself quickly by streamlining measurement processes. Its automatic centering and tilting table allows faster alignment and maximizes productivity. The MarForm MMQ 400 is widely used across industrial and medical fields, including machine building (bearings, ball screws, shafts), automotive (steering systems, gearboxes, motors), and medicine (hip and knee endoprostheses, medical screws, dental implants).

By combining automated measurement sequences with smooth, precise axes, the MarForm MMQ 400 ensures high-quality inspection and reliable data for quality control, production monitoring, and research applications.

Features

  • Fully automated form and position measurement

  • High-precision motorized Z-axis (900 mm) and X-axis (280 mm)

  • Roundness deviation: 0.01 + 0.00025 µm/mm

  • Axial runout deviation: 0.02 + 0.0001 µm/mm

  • Automatic centering and tilting table for faster alignment

  • Versatile applications: roughness, waviness, contour, line form

  • Industries served: Machine building, Automotive, Medical

  • High repeatability and accuracy for complex workpieces

  • MarWin software for flexible measurement and analysis

Specifications

MarForm MMQ 400 | Art.-Nr. 5440782
Roundness deviation (µm+µm/mm measuring height) * 0,01 + 0,00025
Measuring path, motorized Z (mm) 900
Straightness deviation / 100 mm measuring path (µm)**, Z axis 0.15
Straightness deviation / total measuring path (µm)**, Z axis 0.9
Parallelism deviation Z-/C axis in tracing direction, measuring path (µm) 2
Measuring speed (mm/s), Z axis 0,1-30
Positioning speed (mm/s), Z axis 0,5 -100
Measuring path, motorized X (mm) 280
Roundness deviation (µm+µm/mm measuring height) ** 0,02 + 0,0005
Straightness deviation /av. 100 mm measuring path (µm)**, X axis 0.5
Straightness deviation / total measuring path (µm)**, X axis 1.5
Axial runout deviation (µm+µm/mm measuring radius) * 0,02 + 0,0001
Axial runout deviation (µm+µm/mm measuring radius) ** 0,04 + 0,0002
Centering and tilting table automatic
Table diameter (mm) 285
Table load capacity, centered (N) 400
Speed (rpm) 50 Hz / 60 Hz 0.2-15
Footer text * Values as maximum deviation from LSC reference circle, filter 15 undulations/revolution.
** All values in accordance with DIN ISO 1101 at 20°C ±1°C in a vibration-neutral environment, filter 15 undulations/revolution LSC or 2.5 mm LSS, 5 rpm or 5 mm/s and standard probe arm with ball diameter 3 mm. Proof at the standard using error separation techniques. Given the number of different options available, only a few machines are described here by way of example. Technical data for “your” MMQ is available from Mahr on request.
