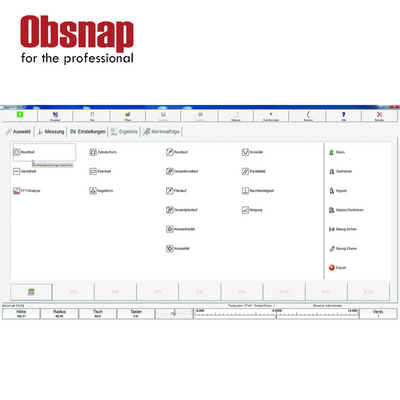

Mahr Metrology MarForm MMQ 150
Mahr Metrology MarForm MMQ 150 - Image 2

Mahr Metrology MarForm MMQ 150

The MarForm MMQ 150 is an automatic form tester designed for precise cylindricity measurement in production and inspection rooms. It combines accuracy, speed, and ease of use with a highly cost-effective design.

  • Entry-level form tester: Ideal for cylindrical shape measurement and basic form/position analysis.
  • High-precision axes: Motorized Z-axis 250 mm for accurate measurements; C-axis for roundness and axial run-out.
  • Manual centering & tilting table for flexible positioning of workpieces.
  • Optimized for production & inspection: Reduces rejects, saves time, and lowers production costs.

Share Now:

Facebook Twitter Youtube
Get a Quote

Description

The MarForm MMQ 150 is the entry into the world of cylinder form measurement technology. It is a highly precise, automatic form tester designed for checking form and position tolerances with optimized speed and user-friendliness.

Suitable for production environments as well as inspection rooms, the MMQ 150 ensures fast setup and measurement, allowing users to reduce rejects and improve efficiency. Its motorized vertical Z-axis guarantees accurate form measurement, while the manual centering and tilting table provides flexibility for a wide variety of workpieces.

The machine features maintenance-free high-precision bearings for reliable performance and a cost-effective solution for companies entering cylinder form measurement technology.

Features

  • Roundness deviation (Z-axis): 0.015 + 0.0003 µm / 0.03 + 0.0006 µm

  • Axial run-out: 0.02 + 0.0001 µm / 0.04 + 0.0006 µm

  • Motorized Z-axis measurement path: 250 mm

  • Straightness deviation / 100 mm: 0.4 µm; total Z-axis: 1 µm

  • Parallelism Z/C axis: 1 µm

  • Measurement speed Z-axis: 0.5–30 mm/s; Positioning speed: 0.5–50 mm/s

  • Manual centering & tilting table

  • Table diameter: 160 mm

  • Table load capacity: 200 N

  • Speed (rpm): 1–6 (50/60 Hz)

  • Applications: Cylindricity, form and position measurement, quality control in production

Specifications

MarForm MMQ 150 | Item No. 5440752
Roundness deviation (µm+µm/mm measuring height) * 0.015 + 0.0003
Motorized measurement path Z (mm) 250
Straightness deviation / 100 mm measuring path (µm)**, Z-axis 0.4
Straightness deviation / total measuring range (µm)**, Z-axis 1
Parallelism deviation Z / C axis in scanning direction, measuring path (µm) 1
Measurement speed (mm/s), Z-axis 0.5-30
Positioning speed (mm/s), Z axis 0.5-50
Roundness deviation (µm+µm/mm measuring height) ** 0.03 + 0.0006
Axial run-out (µm+µm/mm measuring radius) * 0.02 + 0.0001
Axial run-out (µm+µm/mm measuring radius) ** 0.04 + 0.0006
Centering and tilting table manually
Table diameter (mm) 160
Table load capacity, centric (N) 200
Speed ​​(1/min) 50 Hz / 60 Hz 1-6
footer text * Values ​​as maximum deviation from reference circle LSC, filter 15 waves/circumference.
** All values ​​according to DIN ISO 1101 at 20 °C ±1 °C in a vibration-free environment, filter 15 shafts/circumference LSC or 2.5 mm LSS, 5 revolutions 1/min or 5 mm/s and standard stylus arm with ball diameter 3 mm. Proof on the standard including error separation methods. Due to the large number of possibilities, only a few machines are described here as examples. The technical data of “your” MMQ is available from Mahr on request.
