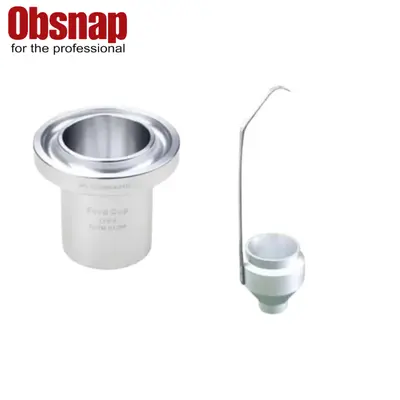

ISO Flow Cups produced by our company are in accordance with International Standard ISO 2431,DIN 53224, EN 535；ASTM D5125 (Paints and varnishes-Determination of flow time by Use of Flow Cups （Fourth edition)). They are made of high quality aluminum and feature stainless steel nozzle inserts（specification dependent）.They are mirror polished＆smooth （Ra≤0.5μm）finished for high efflux accuracy and easy maintenance. ISO Flow Cups are applicable to determine the flow time of Newtonian and near Newtonian fluids.
Main Technical Parameters
■ Material：Anodized Aluminum
■ Weight：0.38 KG
■ Come with calibration certificate
■ Details of each ISO Cups
| Details/ISO cup | ISO No 3 | ISO No 4 | ISO No 5 | ISO No 6 | ISO No 8 |
| Orifice ф（mm） | 3.0 | 4.0 | 5.0 | 6.0 | 8.0 |
| Suitable Flow Time
（sec） |
30-100 | 30-100 | 30-100 | 30-100 | 30-100 |
| Measurement Range
（cSt） |
7-42 | 34-135 | 91-326 | 188-684 | 600-2000 |
| Ordering Information | BGD 128/3 | BGD 128/4 | BGD 128/5 | BGD 128/6 | BGD 128/8 |
