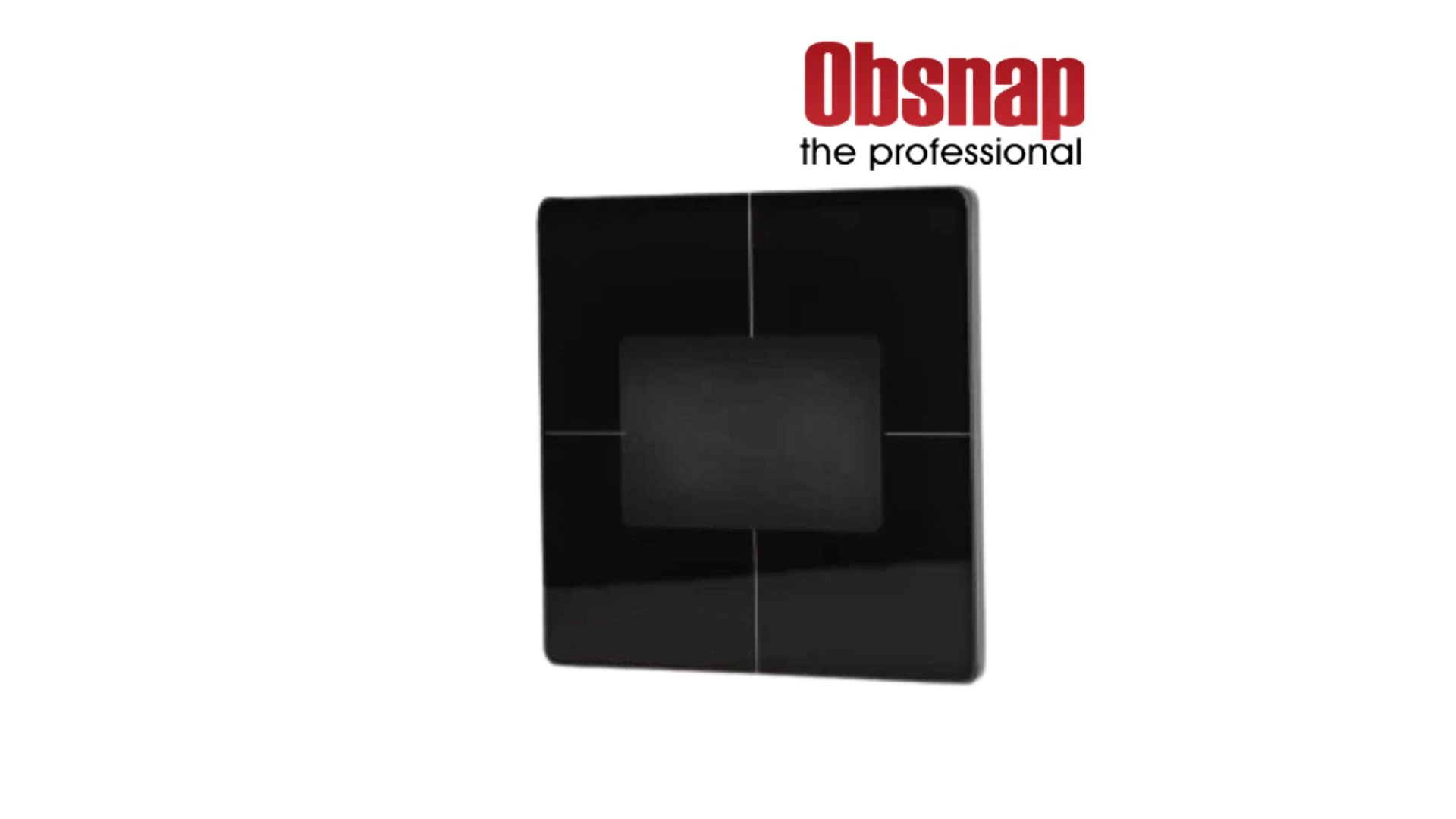

Rhopoints – High Gloss Calibration Tiles (100x100mm)

The ISO Gloss Calibration Tiles are precision ISO 17025 certified reference standards designed to verify and calibrate gloss measuring instruments at 20°, 60°, and 85° angles. Available in high, mid, and low gloss levels, these 100 × 100 mm tiles ensure accurate, repeatable, and traceable gloss measurements. Suitable for all gloss meters and available in custom GU values upon request, they provide a reliable solution for maintaining measurement accuracy and international standard compliance.

  • Gloss Levels – High, Mid, and Low (20°, 60°, 85°)
  • Certification – ISO 17025 certified
  • Tile Size – 100 × 100 mm
  • Compatibility – Suitable for all gloss meters, custom GU values available

Description

The ISO Gloss Calibration Tiles are precision reference standards designed for accurate verification of gloss measuring instruments at 20°, 60°, and 85° angles. Available in high, mid, and low gloss levels, these tiles ensure reliable calibration performance across all gloss ranges. Each tile is manufactured to ISO 17025 certification standards, guaranteeing traceable and dependable measurement results.

With a standard size of 100 × 100 mm, these calibration tiles are suitable for all gloss meters and can be supplied at custom GU values upon request. They provide a stable and consistent reference surface, ensuring your gloss measurement system maintains accuracy, repeatability, and compliance with international standards.

Features

  • Gloss Levels – High, Mid, and Low (20°, 60°, 85°)
  • Certification – ISO 17025 certified
  • Tile Size – 100 × 100 mm
  • Compatibility – Suitable for all gloss meters, custom GU values available

Specifications



High gloss Code Mid gloss Code Low gloss Code
High gloss (all angles) B1000-050/ISO Mid gloss 20° B1000-057/ISO Low gloss 20° B1000-055/ISO
Mid gloss 60° B1000-051/ISO Low gloss 60° B1000-052/ISO
Mid gloss 85° B1000-056/ISO Low gloss 85° B1000-058/ISO
