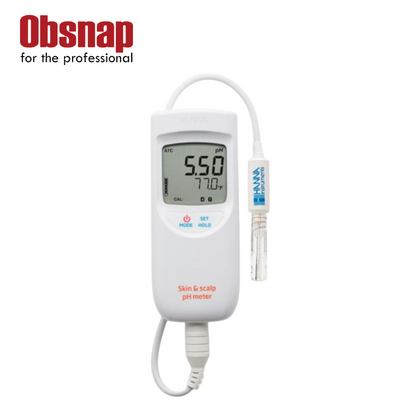

Hanna Instruments – HI99181 Skin pH Portable Meter

The HI99181 Skin pH Portable Meter is a professional, waterproof (IP67) instrument designed specifically for accurate surface pH measurement of skin. Skin naturally has an acidic pH between 4 to 6, and monitoring it is essential to evaluate compatibility with cosmetics and dermatological products. The meter is supplied with the HI14143/50 flat-tip glass body pH electrode, featuring an open junction with viscolene reference electrolyte for precise and stable readings. With 0.01 pH resolution, ± 0.02 pH accuracy, Automatic Temperature Compensation (ATC), and automatic calibration, the HI99181 ensures reliable results in clinical, cosmetic, and research applications.

  • Designed for Direct Skin Surface pH Measurement
  • Flat-Tip HI14143/50 Glass Electrode with Open Junction
  • 0.01 pH Resolution & ± 0.02 pH Accuracy
  • IP67 Waterproof with Automatic Temperature Compensation

Description

Skin pH is influenced by factors such as age, genetics, sweat, and moisture, and naturally ranges from pH 4 to 6. However, prolonged use of alkaline soaps, detergents, and cosmetics can elevate skin pH, potentially leading to irritation or unfavorable skin conditions. The HI99181 is specifically engineered to monitor the biological compatibility between skin and cosmetic or pharmaceutical products. It features a large multi-level LCD display that simultaneously shows pH and temperature readings, along with stability indicators, probe condition status, and battery percentage at startup.

The HI99181 uses the HI14143/50 amplified glass body pH electrode, optimized for surface measurement. Its flat-tip design ensures maximum surface contact with skin for accurate readings. The open junction reference system utilizes a viscolene solid gel electrolyte in direct contact with the skin, preventing clogging and ensuring stable ion flow for reliable measurement. The chemically resistant glass body allows rapid thermal equilibrium, while the built-in temperature sensor provides Automatic Temperature Compensation without requiring a separate probe. This specialized electrode design ensures fast response, stable readings, and long-term reliability in dermatological and cosmetic testing environments.

Features

  • Waterproof – The HI99181 is a waterproof meter rated IP67 for immersion in up to one meter of water for 30 minutes.
  • Automatic Calibration – One or two-point calibration is automatic to two selectable buffer sets.
  • Automatic Temperature Compensation – An integrated temperature sensor allows for automatic temperature compensation of pH measurements.
  • Sensor Check – Using the pH‐mV range the user can check the sensor status by reading the mV reading in fresh buffers. At room temperature (25 oC/77oF) the reading should be +/- 30 mV in pH 7.01 and greater than 150 mV difference between pH 7.01 and 4.01.
  • Multi-Level LCD Display – The split-level LCD displays both pH and temperature readings, along with indicators for reading stability, battery percentage, and probe condition.
  • Probe Condition Indicator – The probe condition indicator is based on the offset and slope characteristic of the electrode. There are 5 bars ranging from all 5 indicating the probe is in excellent condition and 1 bar indicating the probe should be cleaned or replaced.
  • Battery Error Prevention System – The meter will automatically shut off if there isn’t enough power to obtain an accurate measurement.
  • Battery Life Indicator – The battery percent level is displayed at start up alerting the user to the remaining battery power that is available.

Specifications

SKU HI99181
Product Name Skin pH Portable Meter – HI99181
Quote Required Yes
pH Range -2.00 to 16.00 pH; -2.0 to 16.0 pH
pH Resolution 0.01 pH; 0.1 pH
pH Accuracy ±0.02 pH; ±0.1 pH
pH Calibration automatic, at one or two points with two sets of buffers (standard 4.01, 7.01,10.01 or NIST 4.01, 6.86, 9.18)
pH Temperature Compensation automatic from -5.0 to 105.0ºC (23 to 221ºF)
pH CAL Check (electrode diagnostics) probe condition indicator
pH Sensor Check yes
mV Range ±825 mV (pH‐mV)
mV Resolution 1 mV (pH‐mV)
mV Accuracy ±1 mV (pH‐mV)
Temperature Range -5.0 to 105.0°C / 23.0 to 221.0°F
Temperature Resolution 0.1°C / 0.1°F
Temperature Accuracy ±0.5°C (up to 60°C); ±1.0°C (outside) / ±1°F (up to 140°F); ±2.0°F (outside)
pH Electrode HI14143/50 pre-amplified pH probe with internal temperature sensor, quick connect DIN connector and 1 m (3.3’) cable (included)
Automatic Shut-Off user selectable
Battery Type/Life 1.5V (3) AAA / approximately 1400 hours of continuous use
IP Protection IP67
Environment 0 to 50°C (32 to 122°F); RH max 100%
Dimensions 154 x 63 x 30 mm (6.1 x 2.5 x 1.2”)
Weight 196 g (6.91 oz.)

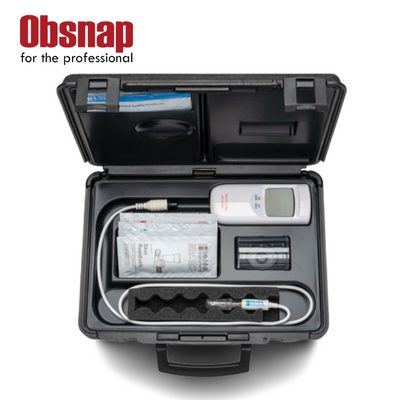

Ordering Information HI99181 is supplied with HI14143/50 flat tipped pH/temperature probe, HI70004 pH 4.01 buffer solution sachet (1) , HI70007 pH 7.01 buffer solution sachet (1), HI700620 electrode cleaning and disinfection solution for skin residual sachets (1), HI700621 electrode cleaning solution for skin grease and sebum sachets (1), 100 mL beaker (1), batteries, calibration certificates for both meter and probe, instruction manual, and rugged thermoformed carrying case.
