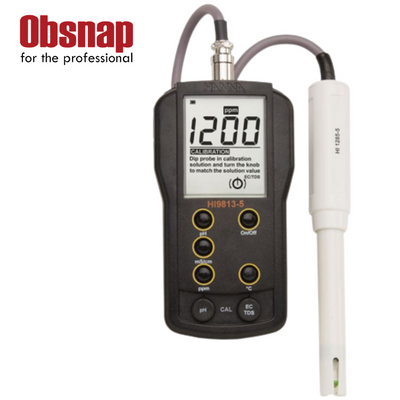

Hanna Instruments HI9813-5 Portable pH/EC/TDS Meter

The affordable, water-resistant HI9813-5 portable meter monitors temperature, conductivity (EC), pH, and total dissolved solids (TDS) with a single probe. With specific buttons for measurement modes to be presented on the LCD and knobs for single point pH and EC/TDS calibration, the meter’s operation is made simpler.
Based on the actual EC value, the HI9813-variable 5’s EC to TDS conversion factor automatically shifts from 0.56 to 0.78 ppm = 1 S/cm. Using a temperature correction coefficient () set at 2%/oC, all readings are automatically temperature corrected. The HI9813-5 is appropriate for hydroponic, greenhouse, and agricultural applications.

3 in 1 probe with pH, EC/TDS and temperature sensors

Amplified pH electrode for immunity to electrical noise including from ballasts and pumps

Large LCD with tutorial instructions

Description

More Information
SKU HI9813-5
Product Name Portable pH/EC/TDS Meter – HI9813-5
Quote Required Yes
pH Range 0.0 to 14.0 pH
pH Resolution 0.1 pH
pH Accuracy ±0.1 pH
pH Calibration manual, 1-point through offset trimmer
EC Range 0.00 to 4.00 mS/cm
EC Resolution 0.01 mS/cm
EC Accuracy ±2% F.S.
EC Calibration manual, 1-point through slope trimmer
TDS Range 0 to 1999 ppm (mg/L)
TDS Resolution 1 ppm (mg/L)
TDS Accuracy ±2% F.S.
TDS Calibration manual, 1-point through slope trimmer
EC/TDS Temperature Compensation automatic from 0 to 50°C (32 to 122°F)
Temperature Correction Coefficient β=2%/°C typical
EC to TDS Conversion Factor variable based on reading from 0.56 to 0.72 according to the TDS 442 curve for natural water
Multi-parameter Probe HI 1285-5 combination, amplified pH/EC/TDS/temperature probe with built-in temperature sensor, 8-pin DIN connector and 1 m (3.3′) cable
Battery Type/Life 9V / approximately 150 hours of continuous use
Environment 0 to 50°C (32 to 122°F); RH max 100%
Dimensions 145 x 80 x 36 mm (5.7 x 3.1 x 1.4”)
Weight 230 g (8.1 oz)
Ordering Information HI9813-5 is supplied with HI 1285-5 pH/EC/TDS/°C probe, HI 70007 pH 7.01 sachet (1), HI 70031 1413 µS/cm (1.413 mS/cm) sachet (1), HI 70442 1500 ppm sachet (1), HI 700661 cleaning solution sachet (2), 9V alkaline battery (1) and instruction manual.
