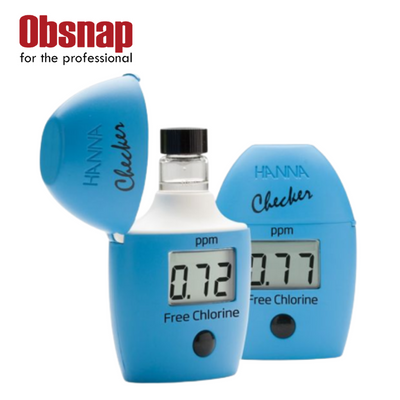

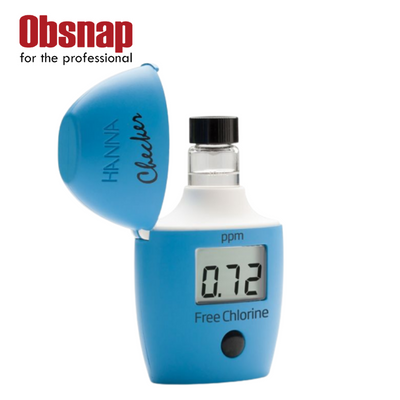

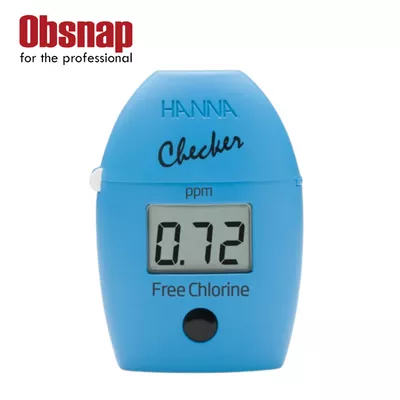

Hanna Instruments HI701 Free Chlorine Checker® HC

The HI701 Free Chlorine Checker® HC is a compact, handheld colorimeter that provides fast, precise, and affordable free chlorine measurements in water. Ideal for freshwater applications like pools, spas, and vegetable rinse water, it helps protect RO membranes and water quality by monitoring active chlorine. The checker uses an adaptation of USEPA method 330.5 with DPD reagent to produce a pink tint corresponding to chlorine levels. With a range of 0.00–2.50 ppm and 0.01 ppm resolution, it delivers reliable and easy-to-read results.

  • Range: 0.00 to 2.50 ppm
  • Resolution: 0.01 ppm
  • Accuracy: ±0.03 ppm ±3% of reading
  • Method: Adaptation of USEPA method 330.5 using DPD reagent

Description

The HI701 Free Chlorine Checker® HC allows users to measure active free chlorine with speed, precision, and simplicity, replacing traditional chemical test kits. Free chlorine is essential for maintaining safe water in pools, spas, and food processing, while excess levels can damage reverse osmosis membranes and other water systems. By using the DPD reagent, the device creates a pink color change proportional to chlorine concentration, which is quantified by the handheld colorimeter.

Designed for convenience, the HI701 is small, portable, and single-parameter focused, making it ideal for water quality monitoring, environmental studies, and educational applications. Its LED light source (525 nm) and silicon photocell detector ensure accurate measurements, while the compact size and low weight (64 g / 2.25 oz.) allow easy handling. The device includes sample cuvettes, reagent starter kit, battery, and instructions for immediate use.

Features

  • Model: HI701 Free Chlorine Checker® HC
  • SKU: HI701
  • Free Chlorine Range: 0.00 to 2.50 ppm
  • Resolution: 0.01 ppm
  • Accuracy: ±0.03 ppm ±3% of reading
  • Chlorine Method: Adaptation of USEPA method 330.5 with DPD reagent
  • Photometer/Colorimeter Light Source: LED @ 525 nm
  • Photometer/Colorimeter Detector: Silicon photocell
  • Battery Type/Life: (1) 1.5V AAA
  • Automatic Shut-Off: After 2 minutes of non-use
  • Environment: 0 to 50°C (32 to 122°F); RH max 95% non-condensing
  • Weight: 64 g (2.25 oz.)
  • Dimensions: 81.5 x 61 x 37.5 mm (3.2″ x 2.4″ x 1.5″)
  • Included Accessories: 2 sample cuvettes with caps, free chlorine reagent starter kit (6 tests), battery, instructions, quick start guide
  • Applications: Water quality monitoring, environmental studies, education, pools, spas
  • Design: Small, portable, single-parameter checker

Specifications

SKU HI701
Product Name Free Chlorine Checker® HC – HI701
Quote Required Yes
Free Chlorine Range 0.00 to 2.50 ppm
Free Chlorine Resolution 0.01 ppm
Free Chlorine Accuracy ±0.03 ppm ±3% of reading
Chlorine Method Adaptation of USEPA method 330.5. The reaction between free chlorine and the DPD reagent causes a pink tint in the sample.
Photometer/Colorimeter Light Source LED @ 525 nm
Photometer/Colorimeter Light Detector silicon photocell
Battery Type/Life (1) 1.5V AAA
Automatic Shut-Off after two minutes of non-use
Environment 0 to 50°C (32 to 122°F); RH max 95% non-condensing
Weight 64 g (2.25 oz.)
Dimensions 81.5mm x 61mm x 37.5mm (3.2″ x 2.4″ x 1.5”)
Ordering Information HI701 Checker® is supplied with (2) sample cuvettes with caps, free chlorine reagent starter kit (reagents for 6 tests), battery, instructions and quick start guide.
