| SKU |
HI83305-02 |
| Product Name |

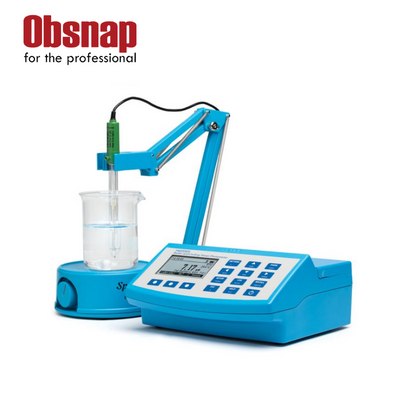

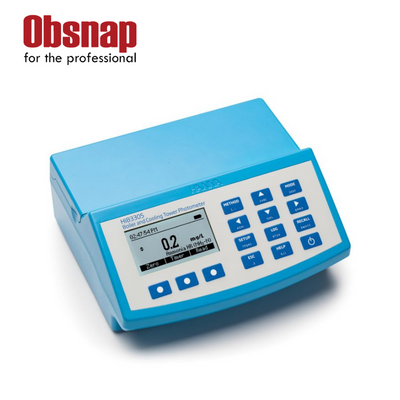

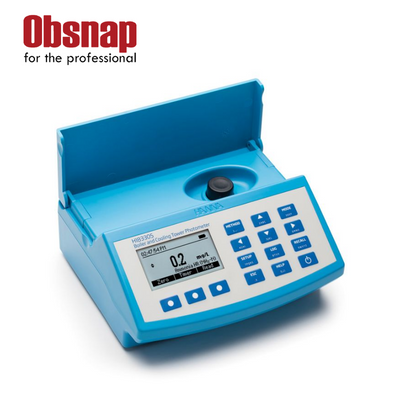

Boiler and Cooling Tower Photometer – HI83305 |
| Quote Required |
Yes |
| pH Range |
Photometer |
| pH Resolution |
Photometer |
| pH Accuracy |
Photometer |
| pH Calibration |
Automatic one or two point calibration with one set of standard buffers available (4.01, 6.86, 7.01, 9.18, 10.01) |
| pH Temperature Compensation |
Automatic (-5.0 to 100.0 oC; 23.0 to 212.0 oF); limits reduced based on the pH electrode used |
| pH CAL Check (electrode diagnostics) |
clean electrode and check buffer/check probe displayed during calibration |
| pH Method |
Photometer |
| pH-mV Range |
±1000 mV |
| pH-mV Resolution |
0.1 mV |
| pH-mV Accuracy |
±0.2 mV |
| Dissolved Oxygen Range |
0.0 to 10.0 mg/L (as O2) |
| Dissolved Oxygen Resolution |
0.1 mg/L |
| Dissolved Oxygen Accuracy |
±0.4 mg/L ±3% of reading |
| Dissolved Oxygen Measurement Method |
Adaptation of the Standard Methods for the Examination of Water and Wastewater, 18th edition, Azide modified Winkler method |
| Absorbance Range |
0.000 to 4.000 Abs |
| Absorbance Resolution |
0.001 Abs |
| Absorbance Accuracy |
+/-0.003Abs @ 1.000 Abs |
| Aluminum Range |
0.00 to 1.00 mg/L (as Al3+) |
| Aluminum Resolution |
0.01 mg/L |
| Aluminum Accuracy |
±0.04 mg/L ±4% of reading |
| Aluminum Method |
Adaptation of the aluminon method |
| Ammonia Range |
Low Range |
| Ammonia Resolution |
0.01 mg/L; 0.1 mg/L |
| Ammonia Accuracy |
Low Range |
| Ammonia Method |
Adaptation of the ASTM Manual of Water and Environmental Technology, D1426-92, Nessler method |
| Bromine Range |
0.00 to 8.00 mg/L (as Br2) |
| Bromine Resolution |
0.01 mg/L |
| Bromine Accuracy |
±0.08 mg/L ±3% of reading |
| Bromine Method |
Adaptation of the Standard Methods for the Examination of Water and Wastewater, 18th edition, DPD method. |
| Chlorine Dioxide Range |
0.00 to 2.00 mg/L (as ClO2) |
| Chlorine Dioxide Resolution |
0.01 mg/L |
| Chlorine Dioxide Accuracy |
±0.10 mg/L ±5% of reading |
| Chlorine Dioxide Method |
Adaptation of the Chlorophenol Red method. |
| Free Chlorine Range |
0.00 to 5.00 mg/L (as Cl2) |
| Free Chlorine Resolution |
0.01 mg/L |
| Free Chlorine Accuracy |
±0.03 mg/L ±3% of reading |
| Total Chlorine Range |
0.00 to 5.00 mg/L (as Cl2) |
| Total Chlorine Resolution |
0.01 mg/L |
| Total Chlorine Accuracy |
±0.03 mg/L ±3% of reading |
| Chlorine Method |
Adaptation of the EPA 330.5 DPD method |
| Chromium, Hexavalent Range |
Low Range |
| Chromium, Hexavalent Resolution |
1 μg/L |
| Chromium, Hexavalent Accuracy |
Low Range |
| Chromium, Hexavalent Method |
Adaptation of the ASTM Manual of Water and Environmental Technology, D1687-92, Diphenylcarbohydrazide method. |
| Copper Range |
Low Range |
| Copper Resolution |
0.001 mg/L; 0.01 mg/L |
| Copper Accuracy |
Low Range |
| Copper Method |
Adaptation of the EPA bicinchoninate method |
| Hydrazine Range |
0 to 400 μg/L (as N2H4) |
| Hydrazine Resolution |
1 μg/L |
| Hydrazine Accuracy |
±4% of full scale reading |
| Hydrazine Method |
Adaptation of the ASTM Manual of Water and Environmental Technology, method D1385-88, p-Dimethylaminobenzaldehyde method |
| Iron Range |
Low Range |
| Iron Resolution |
0.001 mg/L; 0.01 mg/L |
| Iron Accuracy |
Low Range |
| Iron Method |
Low Range |
| Molybdenum Range |
0.0 to 40.0 mg/L (as Mo6+) |
| Molybdenum Resolution |
0.1 mg/L |
| Molybdenum Accuracy |
±0.3 mg/L ±5% of reading |
| Molybdenum Method |
Adaptation of the mercaptoacetic acid method |
| Nitrate Range |
0.0 to 30.0 mg/L (as NO3–– N) |
| Nitrate Resolution |
0.1 mg/L |
| Nitrate Accuracy |
±0.5 mg/L ±10% of reading |
| Nitrate Method |
Adaptation of the cadmium reduction method |
| Nitrite Range |
Freshwater
Low Range |
| Nitrite Resolution |
Freshwater |
| Nitrite Accuracy |
Freshwater
Low Range |
| Nitrite Method |
Low Range |
| Oxygen, Scavenger Range |
0 to 1000 μg/L (as DEHA)
0.00 to 1.50 mg/L (as Carbohydrazide)
0.00 to 2.50 mg/L (as Hydroquinone)
0.00 to 4.50 mg/L (as ISO-ascorbic acid) |
| Oxygen, Scavenger Resolution |
1 μg/L (DEHA); 0.01 mg/L |
| Oxygen, Scavenger Accuracy |
±5 μg/L ±5% of reading |
| Oxygen, Scavenger Method |
Adaptation of the iron reduction method |
| Phosphate Range |
Freshwater
Low Range |
| Phosphate Resolution |
Freshwater |
| Phosphate Accuracy |
Freshwater
Low Range |
| Phosphate Method |
Freshwater Low Range |
| Silica Range |
Low Range |
| Silica Resolution |
0.01 mg/L; 1 mg/L |
| Silica Accuracy |
Low Range |
| Silica Method |
Low Range |
| Zinc Range |
0.00 to 3.00 mg/L (as Zn) |
| Zinc Resolution |
0.01 mg/L |
| Zinc Accuracy |
±0.03 mg/L ±3% of reading |
| Zinc Method |
Adaptation of the Standard Methods for the Examination of Water and Wastewater, 18th edition, Zincon method |
| Input Channels |
1 pH electrode input and 5 photometer wavelengths |
| pH Electrode |
digital pH electrode (not included) |
| Photometer/Colorimeter Light Source |
5 LEDs with 420 nm, 466 nm, 525 nm, 575 nm, and 610 nm narrow band interference filters |
| Photometer/Colorimeter Light Detector |
silicon photodetector |
| Bandpass Filter Bandwidth |
8 nm |
| Bandpass Filter Wavelength Accuracy |
±1 nm |
| Cuvette Type |
round, 24.6 mm |
| Number of Methods |
128 max. |
| GLP |
calibration data for connected pH electrode |
| Display |
128 x 64 pixel LCD with backlight |
| Logging Type |
log on demand with user name and sample ID optional input |
| Logging Memory |
1000 readings |
| Connectivity |
USB-A host for flash drive; micro-USB-B for power and computer connectivity |
| Power Supply |
5 VDC USB 2.0 power adapter with USB-A to micro-USB-B cable (included) |
| Battery Type/Life |
3.7 VDC Li-polymer rechargeable battery / >500 photometric measurements or 50 hours of continuous pH measurement |
| Environment |
0 to 50.0 oC (32 to 122.0 oF); 0 to 95% RH, non-condensing |
| Weight |
1.0 kg (2.2 lbs.) |
| Dimensions |
206 x 177 x 97 mm (8.1 x 7.0 x 3.8″) |
| Ordering Information |
HI83305 is supplied with sample cuvettes and caps (4 ea.), cloth for wiping cuvettes, USB to micro USB cable connector, power adapter and instruction manual. |
