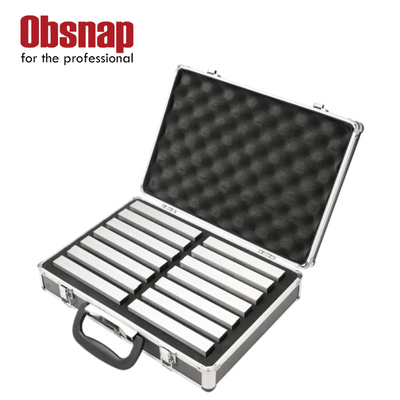

DASQUA Precision Machinist Tools Premium Parallel Bars Set With Aluminum Case

Features

• Premium alloy steel with a hardness of 58–63 HRC and a long service life.
• Edges have a gentle lap for collision prevention.
• A black aluminium casing that was fitted
• Each parallel set is provided with a separate inspection report and is precision ground with high accuracy: height/width 0.01mm, parallelism 0.005mm, use in pairs: 0.01mm (height/thickness),
• A chamfer that is round to prevent nicks on the operators’ hands

Application

Precision measurements, precision parallelism, and precision squareness are all included in the parallel bars. Simple and simple to use for clamping a collection of flat workpieces while drilling, boring, milling, printing, assembling, etc.

Description

Code Quantity (pairs) Thickness x Length Height
8203-0010 14 Pairs 10×150 14,16,18,20,22,24,26,28,30,32,35,40,45,50
8203-0025 14 Pairs 4×150 14,16,18,20,22,24,26,28,30,32,35,40,45,50
8203-0030 9 Pairs 8.5×150 14,16,20,24,30,32,36,40,44
8204-0010 9 Pairs 1/4×6″ 3/4″,7/8″,1″,1-1/8″,1-1/4″,1-3/8″,1-1/2″,1-5/8″,1-3/4″
8204-0015 10 Pairs 1/8×6″ 1/2″,5/8″,3/4″,7/8″,1″,1-1/8″,1-1/4″,1-3/8″,1-1/2″,1-5/8″
8204-0025 4 Pairs 3/16″x6″ 1″,1-1/4″,1-1/2″,1-3/4″

Specifications

Product Name: Premium Parallel Set
Item Number: 8203-0010
Amtount( Pairs): 14
Length: 150mm
Thickness: 10mm
Height: 14,16,18,20,22,24,26,28,30,32,35,40,45,50

Advantage Of DASQUA

• High quality material and precision machining process ensure product quality;
• A traceable QC system is worthy of your trust;
• Efficient warehouse and logistics management ensure your delivery time;
• A two-year warranty makes you without the worries behind;

Package Content

1 x Premium parallel set
